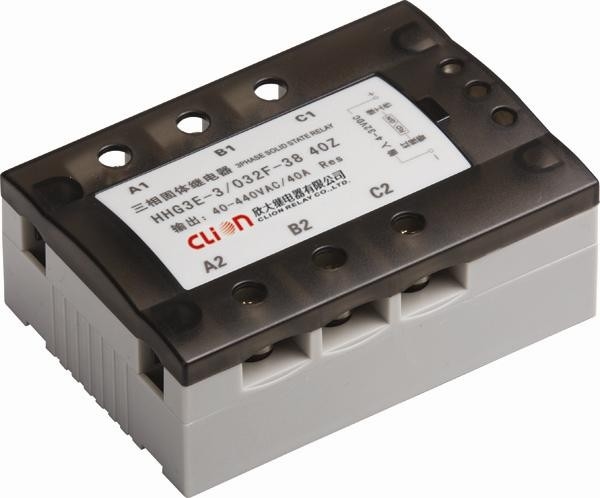

HHG3E-3 Series Three Phase SSR
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Theory | Solid State Relay | Color | White And Black |
|---|
Product Description
Dimension: 106mm*75mm*41mm
Model:
HHG3E-3/032F-38 40A Three phase SSR( Input DC, Output AC )
HHG3E-3/250F-38 40A Three phase SSR( Input AC, Output AC )
Control voltage: 032: 3-32VDC
250: 90-250VAC
Control current
5-20mA
5-20mA
Turn-on voltage
4VDC
90VAC
Turn-off voltage
2VDC
10VAC
Reverse voltage
32VDC
/Load voltage
22:30-240VAC 38:40-440VAC
Load current: 10A, 15A, 20A, 25A, 30A, 40A, 60A, 80A
Indicate methods: LED with red and green colour Installation
Screw Remarks:
1. Load current＞10A ,a radiator is necessary, Load current＞80A, fan is necessary.
2. When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage Packing
Inner box
1 PCS/Small paper box, 10 PCS/Paper box Outer box
100 PCS CTN size
380mm*215mm*175mm
Weight
10A≈110g, 1CTN/100PCS G.W: 12KG, N.W: 11KG, 40A≈145g, 1CTN/100PCS G.W: 15.5KG, N.W: 14.5KG, 80A≈150g, 1CTN/100PCS G.W: 16KG, N.W:15KG
Radiator (Optional):
HH034
HH035
HH036
HH037
HH038
