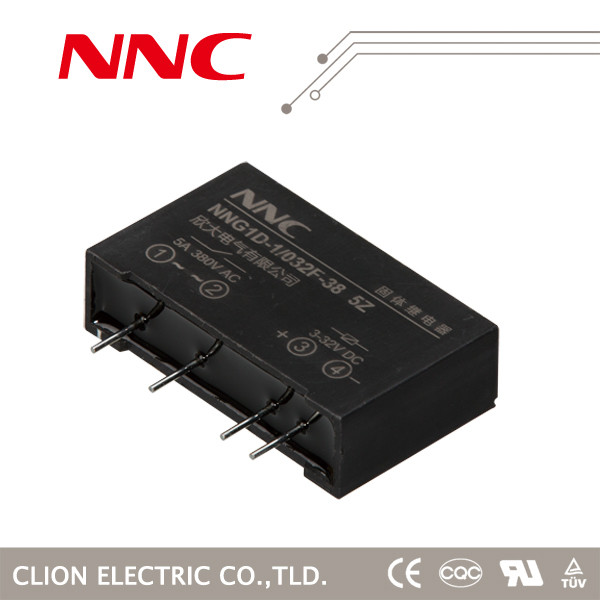

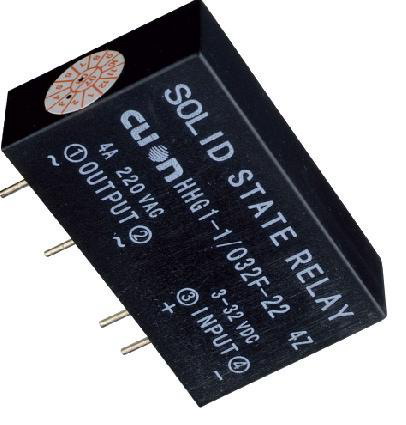

Miniature single-parallel PCB SSR 1-4A
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | solid state relay,miniature,pcb ssr |
||
|---|---|---|---|
Product Description
Part NO. | HHG1D-1/032F-22、38 1-4A | HHG1D-0/032F-06、20 1-4A | |
DC---AC | DC---DC | ||
Description | Miniature single-parallel PCB SSR | Miniature single-parallel PCB SSR | |
Control Voltage | 014:3-14VDC 032:3-32VDC | 014:3-14VDC 032:3-32VDC | |
Control Current | 6-35mA | 6-35mA | |
Turn-on Voltage | 3VDC | 3VDC | |
Turn-off Voltage | 1VDC | 1VDC | |
Reverse Voltage | 32VDC | 32VDC | |
Load Voltage | 22:30-240VAC,38:40-440VAC | 06:12-60VDC,11:12-110VDC,20:12-200VDC | |
Load Current | 1A,2A,3A,4A | 1A,2A,3A,4A | |
Transient Voltage | 22:600VAC,38:900VAC | 06:100VDC,11:110VDC,20:220VDC | |
On-state Voltage Drop | ＜1.6VAC | ＜1.2VDC | |
ON-OFF Time | ≤10mS | ≤5mS | |
Off-state Leakage Current | ≤10mA | ≤5mA | |
Dielectrics Voltage-resistance | ≥1500VAC | ≥1500VAC | |
Insulation Resistance | 500MΩ 500VDC testing | 500MΩ 500VDC testing | |
Ambient temperature | -30～80℃ | -30～80℃ | |
Dimensions | 43L*25.5W*12H | 43L*25.5W*12H | |
Indicated Methods | / | / | |
Installation | PCB | PCB | |
Packing | Inner Box (PCS) | 20/Foam board | |
Outer CTN (PCS) | 600 | ||
CTN Size | 380*215*175mm | ||
Weight | about 22g/pcs G.W:14.5kg N.W:13.5kg | ||
Radiator | / | ||
Remarks | 1.Load current＞10A ,a radiator is necessary,Load current＞80A, fan is necessary. | ||
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage | |||
