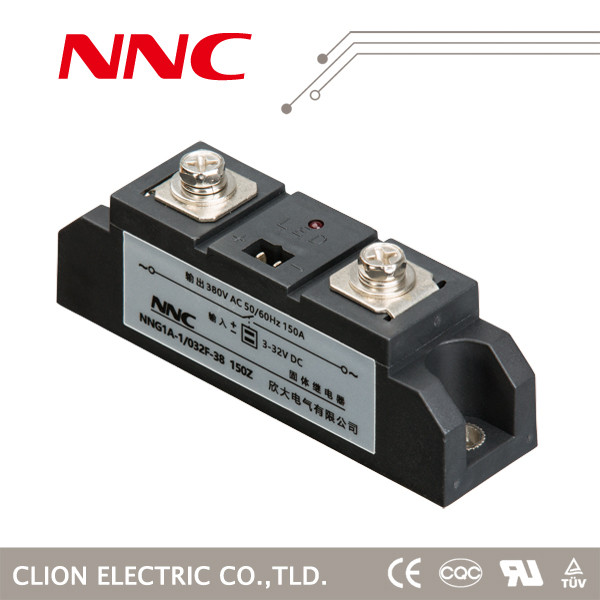

HHG1A Single-phase Indusreial SSR

China HHG1A Single-phase Indusreial SSR supplier
HHG1A Single-phase Indusreial SSR supplier HHG1A Single-phase Indusreial SSR supplier

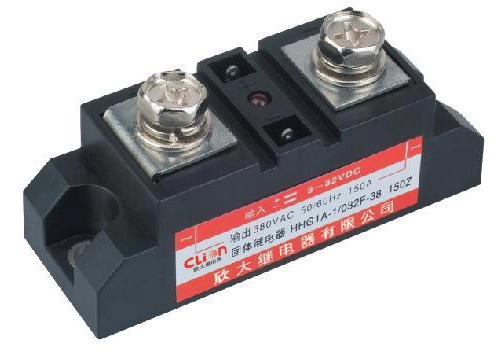

Large Image :  HHG1A Single-phase Indusreial SSR

Product Details:

Place of Origin: China
Brand Name: Clion
Certification: CE
Model Number: HHG1A Single-phase Indusreial SSR
Contact Now
Detailed Product Description
High Light:

Solid State Relay

,

single phase

,

CE certification

Part NO.
HHG1A-1/032F-38 100-350A(SSR-DA)
HHG1C-1/032F-120 100-350A(SSR-DA)

DC---AC
DC---AC
Description
Single-phase Industrial SSR
Single-phase Industrial SSR
Control Voltage
014:3-14VDC 032:3-32VDC
014:3-14VDC 032:3-32VDC
Control Current
5-25mA
5-25mA
Turn-on Voltage
3VDC
3VDC
Turn-off Voltage
1VDC
1VDC
Reverse Voltage
32VDC
32VDC
Load Voltage
38:40-440VAC
120:60-1200VAC
Load Current
100A,120A,150A,200A,250A,300A,350A
100A,120A,150A,200A,250A,300A,350A
Transient Voltage
38:1100VAC
120:1600VAC
On-state Voltage Drop
<1.6VAC
<1.6VAC
ON-OFF Time
≤10mS
≤10mS
Off-state Leakage Current
≤10mA
≤10mA
Dielectrics Voltage-resistance
≥2500VAC
≥2500VAC
Insulation Resistance
500MΩ 500VDC testing
500MΩ 500VDC testing
Ambient temperature
-30~80℃
-30~80℃
Dimensions
94L*34W*43H
94L*34W*43H
Indicated Methods
LED
LED
Installation
Screw fixing
Screw fixing
Packing
Inner Box (PCS)
1
1
Outer CTN (PCS)
60
30
CTN Size
380*215*175mm
380*215*175mm
Weight
235g/pcs G.W:15.25kg N.W:14.25kg
Radiator
HH063,HH038,HH039,HH040
Remarks
1.Load current>10A ,a radiator is necessary,Load current>80A, fan is necessary.
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage
