xProduct Details
Highlight | solid state relay,single phrase |
---|
Product Description

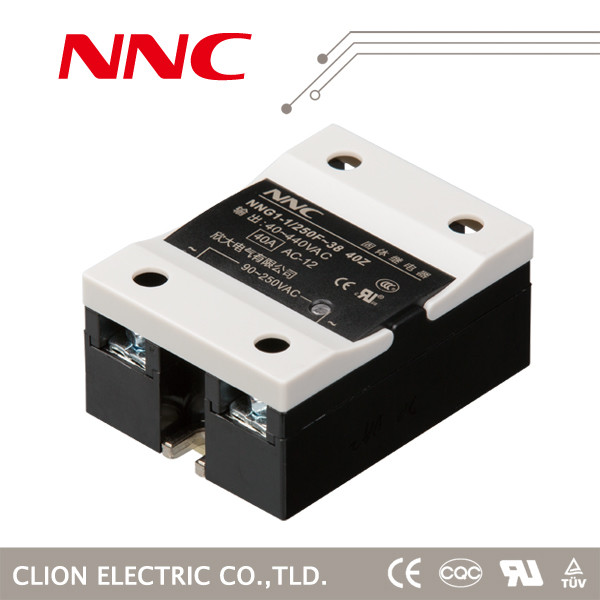

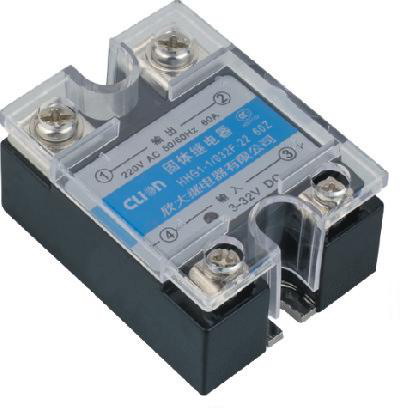

Product Overview
Part NO.
|
HHG1-1/032F-22,38 10-80A
|
HHG1-1/250F-22,38 10-80A
|
|
|
DC---AC
|
AC---AC
|
|
Description
|
Single-phase SSR
|
Single-phase SSR
|
|
Control Voltage
|
014:3-14VDC 032:3-32VDC
|
250:90-250VAC
|
|
Control Current
|
6-35mA
|
5-30mA
|
|
Turn-on Voltage
|
3VDC
|
90VAC
|
|
Turn-off Voltage
|
1VDC
|
10VAC
|
|
Reverse Voltage
|
32VDC
|
/
|
|
Load Voltage
|
22:30-240VAC,38:40-440VAC
|
22:30-240VAC,38:40-440VAC
|
|
Load Current
|
10A,15A,20A,25A,30A,40A,60A,80A
|
10A,15A,20A,25A,30A,40A,60A,80A
|
|
Transient Voltage
|
22:600VAC,38:900VAC
|
22:600VAC,38:900VAC
|
|
On-state Voltage Drop
|
<1.6VAC
|
<1.6VAC
|
|
ON-OFF Time
|
≤10mS
|
≤10mS
|
|
Off-state Leakage Current
|
≤10mA
|
≤10mA
|
|
Dielectrics Voltage-resistance
|
≥2500VAC
|
≥2500VAC
|
|
Insulation Resistance
|
500MΩ 500VDC testing
|
500MΩ 500VDC testing
|
|
Ambient temperature
|
-30~80℃
|
-30~80℃
|
|
Dimensions
|
57.2L*43.5W*29H
|
57.2L*43.5W*29H
|
|
Indicated Methods
|
LED
|
LED
|
|
Installation
|
Screw fixing
|
Screw fixing
|
|
Packing
|
Inner Box (PCS)
|
1PCS/small box,10pcs/paper box
|
|
Outer CTN (PCS)
|
100
|
||
CTN Size
|
380*215*175mm
|
||
Weight
|
10A≤110g/PCS G.W:12kg N.W:11kg
40A≤145g/PCS G.W:15.5kg N.W:14.5kg
80A≤150g/PCS G.W:16kg N.W:15kg
|
||
Radiator
|
HH060,HH061,HH062,HH063
|
||
Remarks
|
1.Load current>10A ,a radiator is necessary,Load current>80A, fan is necessary.
|
||
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage
|
