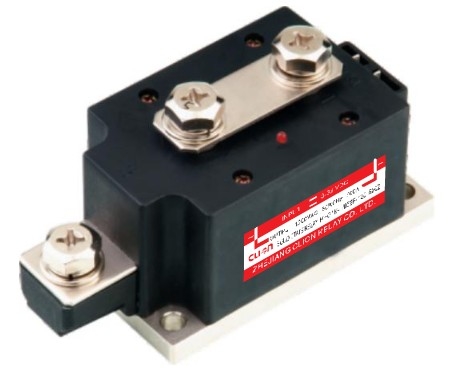

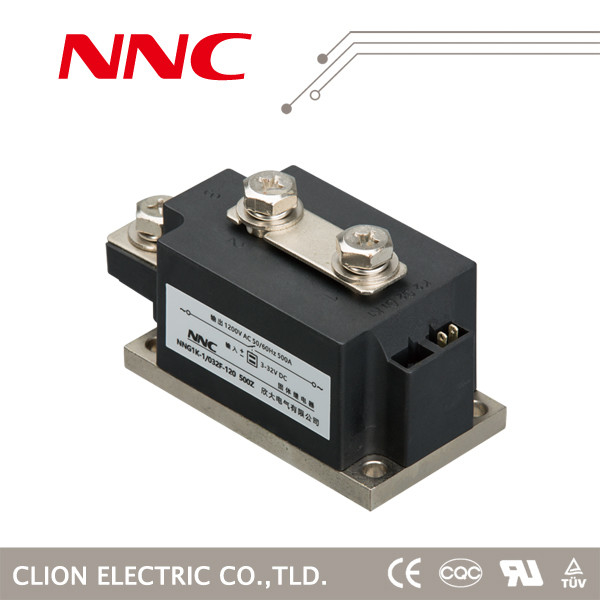

HHG1K Single-phase Indusreial SSR
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | solid state relay,single phase |
||
|---|---|---|---|
Product Description
|
Part NO.
|
HHG1K-1/032F-120 500-800A(SSR-DA) Air-cooled
|
||
|
|
DC---AC
|
||
|
Description
|
Single-phase Industrial SSR
|
||
|
Control Voltage
|
014:3-14VDC
|
032:3-32VDC
|
|
|
Control Current
|
5-25mA
|
||
|
Turn-on Voltage
|
3VDC
|
||
|
Turn-off Voltage
|
1VDC
|
||
|
Reverse Voltage
|
32VDC
|
||
|
Load Voltage
|
120:60-1200VAC
|
||
|
Load Current
|
500A,600A,800A
|
||
|
Transient Voltage
|
120:1600VAC
|
||
|
On-state Voltage Drop
|
＜1.6VAC
|
||
|
ON-OFF Time
|
≤10mS
|
||
|
Off-state Leakage Current
|
≤10mA
|
||
|
Dielectrics Voltage-resistance
|
≥2500VAC
|
||
|
Insulation Resistance
|
500MΩ 500VDC testing
|
||
|
Ambient temperature
|
-30～80℃
|
||
|
Dimensions
|
125L*63W*52H
|
||
|
Indicated Methods
|
LED
|
||
|
Installation
|
Screw fixing
|
||
|
Packing
|
Inner Box (PCS)
|
1
|
|
|
Outer CTN (PCS)
|
60
|
||
|
CTN Size
|
380*215*175mm
|
||
|
Weight
|
Approximate 1800g/pcs
|
||
|
Radiator
|
Air-cooled
|
||
|
Remarks
|
1.Load current＞10A ,a radiator is necessary,Load current＞80A, fan is necessary.
|
||
|
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage
|
|||
