HHG1F Three phase Reversible SSR

China HHG1F Three phase Reversible SSR supplier
HHG1F Three phase Reversible SSR supplier HHG1F Three phase Reversible SSR supplier

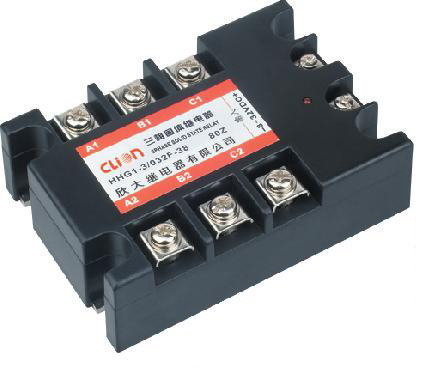

Large Image :  HHG1F Three phase Reversible SSR

Product Details:

Place of Origin: China
Brand Name: clion
Certification: CE
Model Number: HHG1F Three phase Reversible SSR

Payment & Shipping Terms:

Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 30 days
Payment Terms: TT/LC
Supply Ability: 50,000 pieces per month
Minimum Order Quantity: 1000 pieces
Port: SHANGHAI&NINGBO
Protect Feature: Sealed
usage: Protective
Theory: Solid State Relay
Category: Relays
Contact Now
Detailed Product Description
High Light:

solid state relay

,

three phase relay

,

CE certification

Part NO.
HHG1F-3/005F-38 10-40A(SSR-DA)

DC--AC
Description
Three-phase Reversible SSR
Control Voltage
005:5VDC,010:10VDC
Control Current
8-20mA
Turn-on Voltage
005:4.5-5.5V 010:9-11V
Turn-off Voltage
1VDC
Interval time
≥200mS
Reverse Voltage
/
Load Voltage
38:40-440VAC
Load Current
10A,15A,20A,25A,30A,40A
Transient Voltage
38:1600VAC
On-state Voltage Drop
<1.6VAC
ON-OFF Time
≤10mS
Off-state Leakage Current
≤10mA
Dielectrics Voltage-resistance
≥2500VAC
Insulation Resistance
500MΩ 500VDC testing
Ambient temperature
-30~80℃
Dimensions
106L*75W*31.5H
Indicated Methods
LED
Installation
Screw fixing
