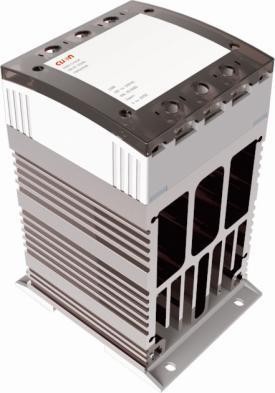

CAG6-3 Series Three-phase SSR

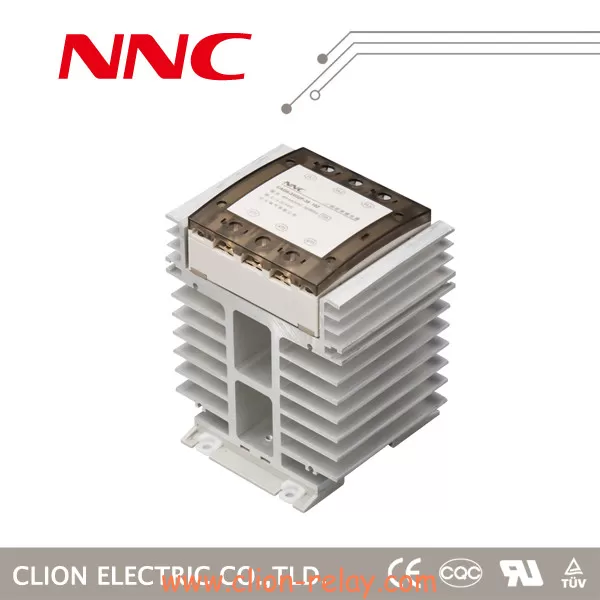

Large Image : CAG6-3 Series Three-phase SSR

Product Details:

Place of Origin:	China
Brand Name:	clion
Model Number:	CAG6-3/032F-38 40A CAG6-3/250F-38 40A

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Get Latest Price
Packaging Details:	Export packing
Payment Terms:	TT

Contact Now

Detailed Product Description

Theory:	Solid State Relay	Contact Load:	High Power

https://clion.en.alibaba.com/product/60622598914-804655096/NNC_solid_state_relay_CAG6_3_032F_10_80A_Rail_SSR.html?spm=a2700.8304367.0.0.BSX7iS

Dimension: 115mm*80mm*140mm Model

CAG6-3/032F-38 40A Three phase SSR( Input DC, Output AC )

CAG6-3/250F-38 40A Three phase SSR( Input AC, Output AC )

Control voltage: 032: 3-32VDC

250: 90-250VAC

Control current: 5-25mA

5-25mA

Turn-on voltage: 4VDC

90VAC

Turn-off voltag: 2VDC

10VAC

Reverse voltage: 32VDC

Load voltage: 38:40-440VAC

Load current: 10A, 15A, 20A, 25A, 30A, 40A, 60A, 80A I

Indicate methods: LED with red and green colour Installation

35mm DIN Rail Packing

Inner box

1 PCS/Paper box Outer box

10 PCS CTN size

400mm*215mm*175mm Weight

10A≈1000g, 1CTN/100PCS G.W: 11KG, N.W: 10KG, 40A≈1068g, 1CTN/100PCS G.W: 12KG, N.W: 11KG, 80A≈1070g, 1CTN/100PCS G.W: 12KG, N.W: 11KG

Tag:

Contact Person: Mr. Tony Chen

Tel: 86-0577-57156992

Fax: 86-0577-57572255
