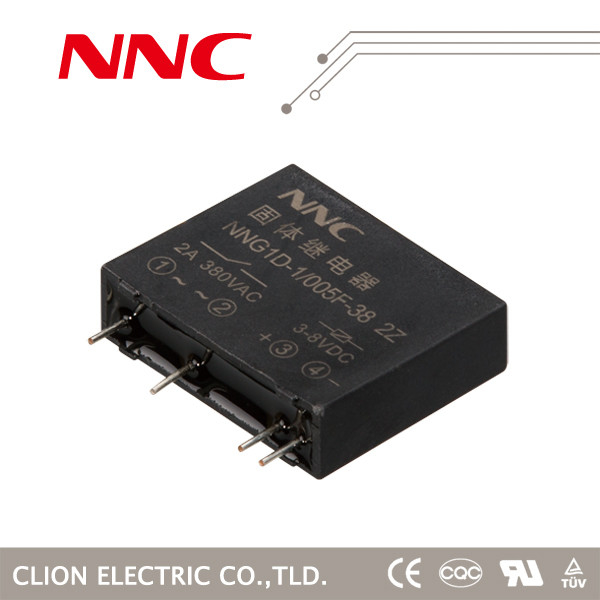

Miniature single-parallel PCB SSR 2A

1000
MOQ
Get Latest Price
Price
Miniature single-parallel PCB SSR 2A
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: China
Brand Name: clion
Certification: CE, CQC

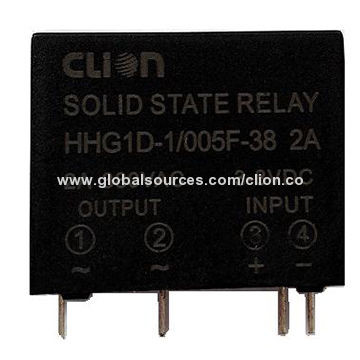

Model Number: HHG1D-1/005F-38 2A
Payment & Shipping Terms
Packaging Details: Export packing
Delivery Time: 15-30 days
Payment Terms: TT
Supply Ability: 50,000 pieces per month
Product Description



  • Dimensions: 25 X 7 x 25.8mmmm
  • Control voltage (input): 5, 12, 24V
  • Control current: 6-35mA
  • Turn-on voltage: 3V DC
  • Turn-off voltage: 1V DC
  • Load voltage (output): 38: 40-440V AC
  • Load current: 1, 2A
  • Instant voltage: 38: 900V AC
  • On-state voltage drop: <1.6V AC
  • On-off time: ≤10mS
  • Off-state leakage current: ≤10mA
  • Dielectric strength: ≥1500V AC
  • Insulation resistance: 500mΩ (500VDC testing)
  • Ambient temperature: -30 to 80°C
