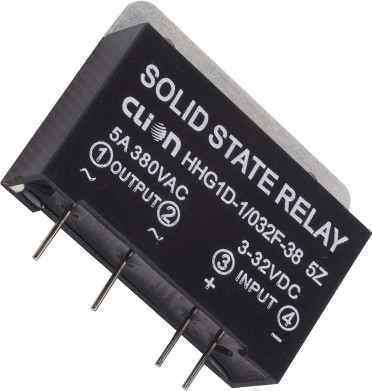

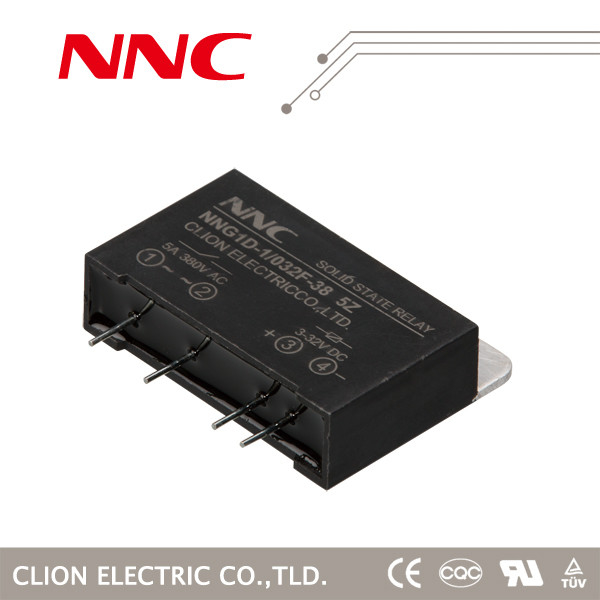

Miniature single-parallel PCB SSR 5A
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
|
Part NO.
|
HHG1D-1/032F-22,38 5A
|
HHG1D-0/032F-06,20 5A
|
|
|
|
DC---AC
|
DC---DC
|
|
|
Description
|
Miniature single-parallel PCB SSR
|
Miniature single-parallel PCB SSR
|
|
|
Control Voltage
|
032:3-32VDC
|
032:3-32VDC
|
|
|
Control Current
|
6-35mA
|
6-35mA
|
|
|
Turn-on Voltage
|
3VDC
|
3VDC
|
|
|
Turn-off Voltage
|
1VDC
|
1VDC
|
|
|
Reverse Voltage
|
32VDC
|
32VDC
|
|
|
Load Voltage
|
22:30-240VAC,38:40-440VAC
|
06:12-60VDC,11:12-110VDC,20:12-200VDC
|
|
|
Load Current
|
5A
|
5A
|
|
|
Transient Voltage
|
22:600VAC,38:900VAC
|
06:100VDC,11:110VDC,20:220VDC
|
|
|
On-state Voltage Drop
|
＜1.6VAC
|
＜1.2VDC
|
|
|
ON-OFF Time
|
≤10mS
|
≤5mS
|
|
|
Off-state Leakage Current
|
≤10mA
|
≤5mA
|
|
|
Dielectrics Voltage-resistance
|
≥1500VAC
|
≥1500VAC
|
|
|
Insulation Resistance
|
500MΩ 500VDC testing
|
500MΩ 500VDC testing
|
|
|
Ambient temperature
|
-30～80℃
|
-30～80℃
|
|
|
Dimensions
|
43L*25.5W*12H
|
43L*25.5W*12H
|
|
|
Indicated Methods
|
/
|
/
|
|
|
Installation
|
PCB
|
PCB
|
|
|
Packing
|
Inner Box (PCS)
|
20/Foam board
|
|
|
Outer CTN (PCS)
|
600
|
||
|
CTN Size
|
380*215*175mm
|
||
|
Weight
|
about 22g/pcs G.W:14.5kg N.W:13.5kg
|
||
|
Radiator
|
/
|
||
|
Remarks
|
1.Load current＞10A ,a radiator is necessary,Load current＞80A, fan is necessary.
|
||
|
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage
|
|||
