Name: Clion NNC NNT4 25A three phase Solid State Relay for industrial control with output 200-440VAC
Brand: CLION ELECTRIC CO.,LTD
SKU: NNT4-4/38 (SSR-VA) 25P
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Control: 2-10KΩ(Potentiometer Control)/0-10V/2-10V/0-5V/1-5V/4-0mA/0-20mA

Load Voltage: 38:200~440VAC

Rated Load Current: 25A

Ambient Temperature: -10-55℃

Ambient Humidity: ＜90%RH

Dielectric Strength: AC2000V/1min(between Power And Baseplate)

Basic Infomation

Place of Origin: China

Brand Name: NNC

Model Number: NNT4-4/38 (SSR-VA) 25P

Payment & Shipping Terms

Packaging Details: Export packing

Delivery Time: 30 days

Payment Terms: TT/LC

Supply Ability: 50,000 pieces per month

Minimum Order Quantity: 4 pieces

Port: SHANGHAI&NINGBO

Protect Feature: Sealed

Usage: Protective

Theory: Solid State Relay

Category: relays

Gallery

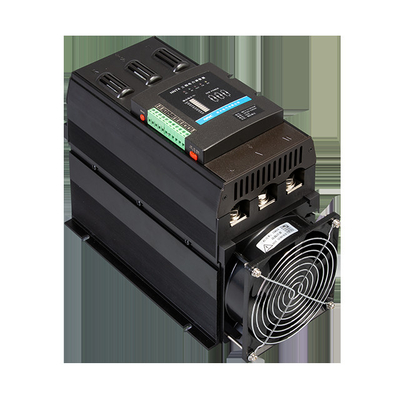

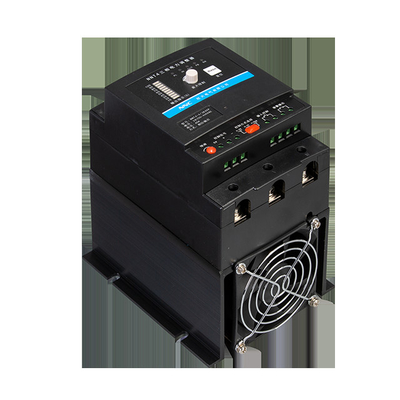

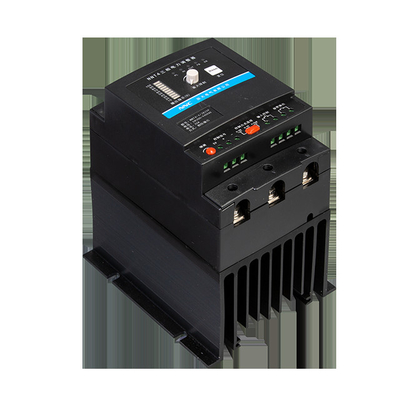

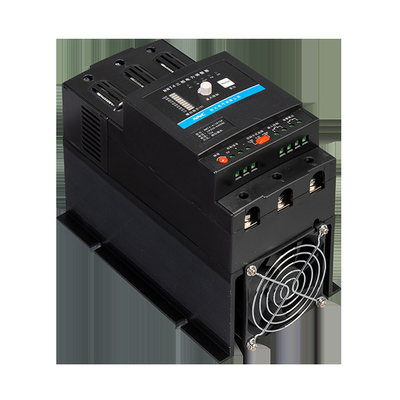

Clion NNC NNT4 25A three phase Solid State Relay for industrial control with output 200-440VAC

Product Description

NNT4 Three Phase Control Series Solid State Relay

Clion NNC NNT4 25A three phase Solid State Relay for industrial control with output 200-440VAC 0

Features

1. Three Pahse

2. Current Control: 4~20mA

3. Voltage Control: 0~5V/0~10V/1~5V/2~10V

4. Rating current from 25A to 200A

5. 50Hz/60Hz both available

6. Fast thermal conductivity, good heat dissipation

Ordering Information

Clion NNC NNT4 25A three phase Solid State Relay for industrial control with output 200-440VAC 1

Specifications

Load voltage: 38:AC200~480V ---50/60Hz

Rated load current: 25Ａ/40Ａ/75Ａ/100A/125A/１50Ａ/200Ａ

Over temperature alarm: More than 75℃

Input: 4~20mA,0~10V

Ambient temperature: -10~55℃

Ambient humidity: ＜90％RH

Dielectric strength: AC2000V/1min(between power and baseplate)

Insulation resistance: ＞20MΩ/500V(between power and baseplate)

Wiring Diagram(mm)

Clion NNC NNT4 25A three phase Solid State Relay for industrial control with output 200-440VAC 2

Clion NNC NNT4 25A three phase Solid State Relay for industrial control with output 200-440VAC 3

Certificate

Clion NNC NNT4 25A three phase Solid State Relay for industrial control with output 200-440VAC 4

Shipment & Packaging

Packing	Inner package	paper box
	Inner Box(pcs)	10
	Outer Box(pcs)	100
	Dimension of the carton	380×215×175mm
	Weight	G.W:11KG N.W:10KG

Clion NNC NNT4 25A three phase Solid State Relay for industrial control with output 200-440VAC 5

FAQ

Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.

Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.

Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)

Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.

Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.

Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.

Q7: What is your warranty time of the products?
A7: 12-24 months
