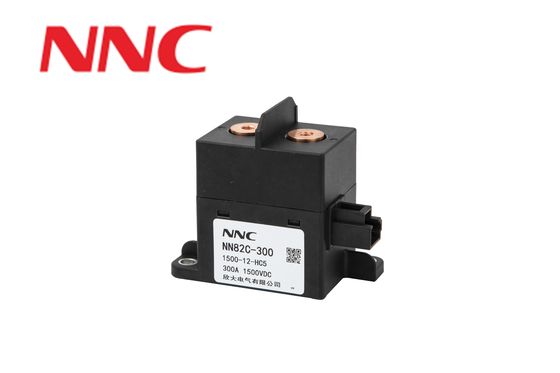

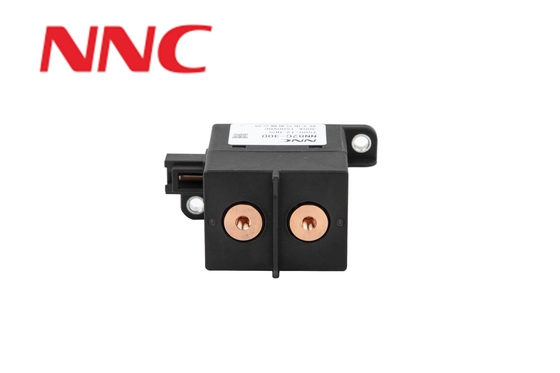

NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle

Place of Origin China
Brand Name NNC
Certification CE/TUV/UL/CCC
Model Number NNC82C-250(300)
Minimum Order Quantity 600pcs
Price get latest price
Delivery Time 7-14 days
Payment Terms T/T
Supply Ability 2k pcs 7 days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Theory New Energy Relay Structure H(Normally Open)
Contact Material Silver Copper Alloy Rated Load DC1500V 250A
Min Load Current 6VDC/1A Mechnical Life 2*10^5 Times
Electrical Life 7.5*10^4 Times
Leave a Message
Product Description

New Energy Relay NNC82C Series

NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle 0NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle 1

Specification

Main Contact Parameters

structure H
contact material silver copper alloy
contact resistance ≤0.3mΩ(@250A)
rated load DC1500V 250A
contact voltage drop /
electrical life
Making:
7.5×104 operations(140A 20VDC)
Breaking:
500 operations(250A 750VDC)
1 operation(1800A 500VDC)
1 operation(1500A 750VDC)
short-circuit current 8000A*(5ms),1 time
rated current 250A
min load current 6VDC/1A
mechanical life 200,000 times



Port Auxiliary Contact Parameters

structure /
contact resistance /
rated load /
switch electricity life /



Coil Parameters

Rated voltage (Vd.c) 12 24
input voltage (Vd.c) 9-16 18-32
operation voltage (Vd.c) 9 18
Release voltag (Vd.c) 1 2
Coil Resistance (2) (1 ± 7%) 24 96
Starting current(A) 0.5 0.5
Starting time(ms)max. / /
Nominal coil current(A) 0.5 0.5
Starting power consumption(W) 6 6
Steady state power consumption(W) 6 6



Insulation resistance between coil and contacts Above the 1,000 MQ
Between open contacts of same pole /
Between main and auxiliary contacts Above the 1,000 MQ
Dielectric strength between coil and contacts AC4000V/1 Minutes
Between open contacts of same pole /
Between main and auxiliary contacts AC4000V/1 Minutes
Shock Resistance 10kV (1.2*50 μ s)
operate time Below the 30ms
release time Below the 10ms
Suction and jump Below 5ms
Vibration sinusoidal vibration 10-500 Hz double amplitude 1.5mm,
acceleration 49 m / s²
Strike stability turn on 588m/s², cut off 196 m/s²
strength 588 m/s²
operating temperature -40+70
(No ice, no condensation)
operating humidity 585%RH
weight 12V About 365g
24V About 365g
48V /





Product Diagram(mm)

NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle 2

NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle 3

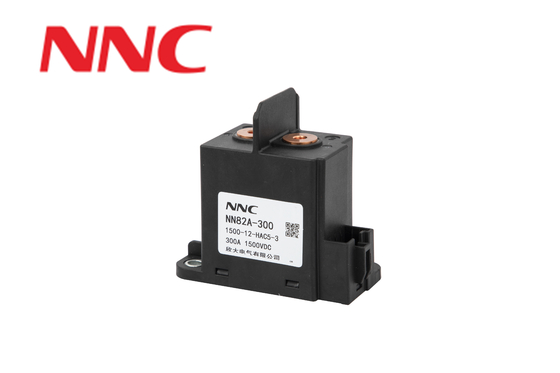

New Energy Solar Energy Relay NN82A for Charging Pile Electric VehicleNew Energy Solar Energy Relay NN82A for Charging Pile Electric VehicleNew Energy Solar Energy Relay NN82A for Charging Pile Electric Vehicle
