Clion New Energy relay high ac voltage NN81G with heat sink for energy storage and charging pile

200pcs
MOQ
get latest price
Price
Clion New Energy relay high ac voltage NN81G with heat sink for energy storage and charging pile
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: New Energy Relay
Structure: H(Normally Open)
Contact Material: Silver Copper Alloy
Rated Load: 270A AC1000V
Contact Resistance: 6VDC/20A
Mechnical Life: 3*10^5 Times
Electrical Life: 3*10^4 Times
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: CE/TUV/UL/CCC
Model Number: NN81G
Payment & Shipping Terms
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 2k pcs 7 days
Product Description

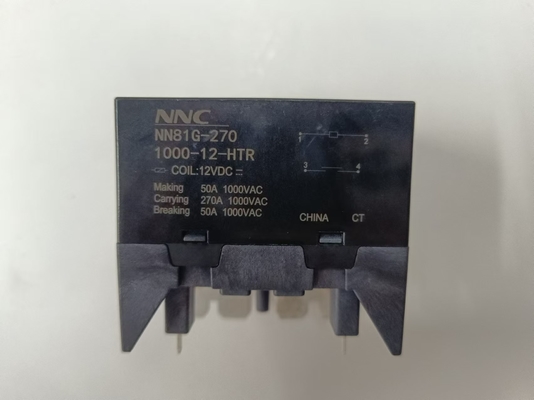

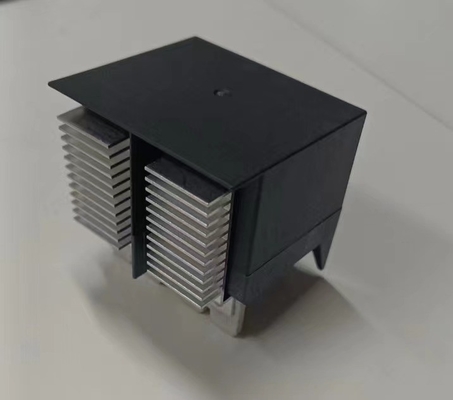

New Energy Relay NN81G-270

Clion New Energy relay high ac voltage NN81G with heat sink for energy storage and charging pile 0Clion New Energy relay high ac voltage NN81G with heat sink for energy storage and charging pile 1

Specification

Main Contact Parameters

structure H
contact material silver copper alloy
contact resistance
≤1mΩ(at 20A 6VDC)
rated load AC1000V 270A
electrical life
3x10^4 operations(50A 1000VAC)
50 operations(270A 1000VAC)
rated current 270A
min load current 6VDC/20A
mechanical life 300,000 times





Coil Parameters

Rated voltage (Vd.c) 12
Max operating voltage (Vd.c) 9
Max Release voltag (Vd.c) 1.2
Max Allowance Voltage(Vd.c.) 14.4
Coil Resistance (2) (1 ± 10%) 28.8*(1±10%)
Coil power consumption(W) 5



Insulation resistance between coil and contacts
5000VAC (50/60Hz,1min)
Between main and auxiliary contacts
2000VAC (50/60Hz,1min)
Dielectric strength between coil and contacts
1000MΩ (500VDC)
Between main and auxiliary contacts
1000MΩ (500VDC)
operate time Below the 30ms
release time Below the 10ms
Vibration sinusoidal vibration 10-55 Hz double amplitude 1.5mm
Strike stability 98 m/s²
strength 980 m/s²
operating temperature -40～+85℃
(No ice, no condensation)
operating humidity 5～85%RH





Product Diagram(mm)

Clion New Energy relay high ac voltage NN81G with heat sink for energy storage and charging pile 2

Clion New Energy relay high ac voltage NN81G with heat sink for energy storage and charging pile 3



Clion New Energy relay high ac voltage NN81G with heat sink for energy storage and charging pile 4Clion New Energy relay high ac voltage NN81G with heat sink for energy storage and charging pile 5Clion New Energy relay high ac voltage NN81G with heat sink for energy storage and charging pile 6
