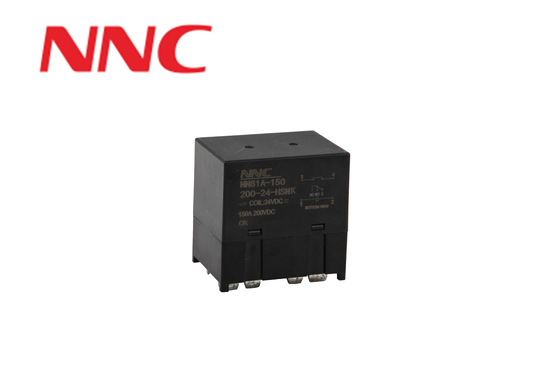

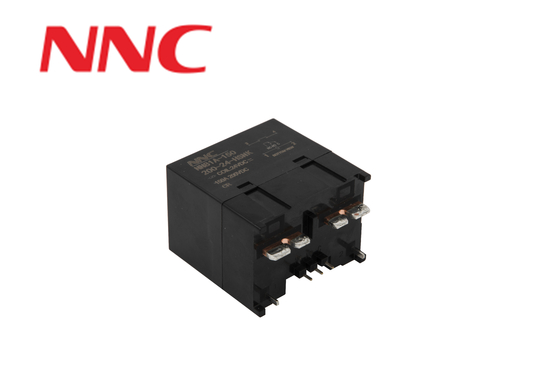

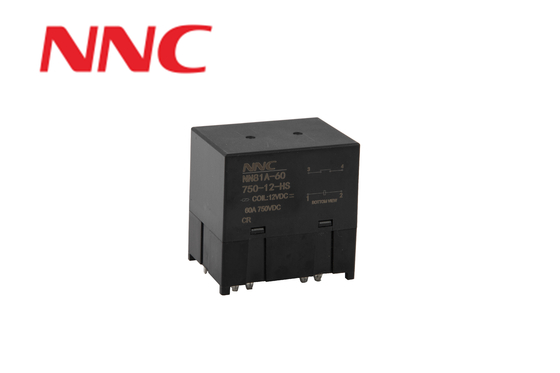

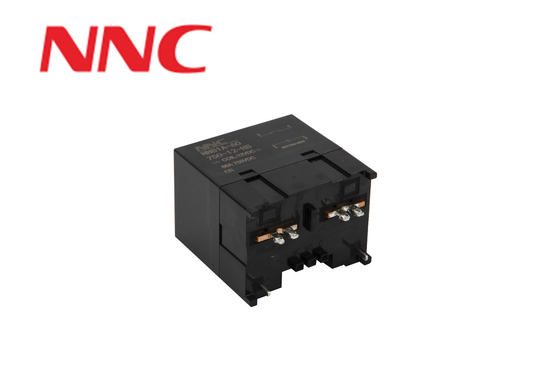

New Energy Power Relay NN81A high dc voltage relay for Car Charging pile Solar Energy

600pcs
MOQ
get latest price
Price
New Energy Power Relay NN81A high dc voltage relay for Car Charging pile Solar Energy
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: New Energy Relay
Structure: H(Normally Open)
Contact Material: Silver Copper Alloy
Rated Load: DC750V 60A/DC450V 100A/DC200V 150A
Min Load Current: 6VDC/1A
Mechnical Life: 2*10^5 Times
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: CE/TUV/UL/CCC
Model Number: NN81A
Payment & Shipping Terms
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 2k pcs 7 days
Product Description

New Energy Relay NN81A

https://nncele.en.made-in-china.com/product/jmRrSDulsHUp/China-New-Energy-Power-Relay-NN81A-for-Car-Charging-pile-Solar-Energy.html

New Energy Power Relay NN81A high dc voltage relay for Car Charging pile Solar Energy 0New Energy Power Relay NN81A high dc voltage relay for Car Charging pile Solar Energy 1

Specification

Main technical parameters
Oral main contact parameters
structure H   turn on the electricity life 35A / 750V, 25,000 times
contact material silver alloy
contact resistance ≤5mΩ (@20A)   divide power off life /
rated load DC750V 60A
DC450V 100A
DC200V 150A		   short-circuit current /
switch electricity life 40A / 750V, 1,000 times for 60A
40A /450V,1000 times for 100A
150A /200V,1000 times for 150A		   rated current 60A
50A / 600V, 2,000 times for 60A
60A /750V,1000 times for 100A
40A /750V,1000 times for 150A
60A / 450V, 3,000 times for 60A
80A /450V,3000 times for 100A
80A /450V,3000 times for 150A		   min load current 6V/1A
mechanical Lifelife 200,000 times
coil parameters
Rated voltage (Vd.c) 12 24 /   starting current (A) 0.235 0.116 /
input voltage (Vd.c) ≤9 ≤18 /   Startup time (ms) / / /
operation voltage (Vd.c) 9~14 18-28 /   rated current (A) 0.235 0.116 /
Release voltag (Vd.c) ≥1 ≥2 /   Startup power (W) 2.8 2.8 /
Coil Resistance (Q) (1 ± 7%) 51 206 /   steady state power (W) 2.8 2.8 /
Note : " : when the rated voltage
Port performance parameters, mouth safety certification
Insulation resistance between coil and contacts Above the 1,000 MQ
Between open contacts of same pole /
Between main and auxiliary contacts Above the 1,000 MQ
Dielectric strength between coil and contacts AC4000V/1 Minutes
Between open contacts of same pole /
Between main and auxiliary contacts AC4000V/1 Minutes
Shock Resistance 10kV (1.2*50 μ s)
operate time Below the 30ms
release time Below the 10ms
Suction and jump Below 5ms
Vibration sinusoidal vibration 10-500 Hz double amplitude 1.5mm,
acceleration 49 m / s²
Strike stability 196 m/s²
strength 490 m/s²
operating temperature -40~+85ºC
(No ice, no condensation)
operating humidity 5~85%RH
weight 12V About 112g
24V About 112g
48V /
