NNC New Energy Relay NN82C-150 with Non-polarity coil and load terminals for Electric Vehicle

600pcs
MOQ
get latest price
Price
NNC New Energy Relay NN82C-150 with Non-polarity coil and load terminals for Electric Vehicle
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: New Energy Relay
Structure: H(Normally Open)
Contact Material: Silver Copper Alloy
Rated Load: DC1500V 150A
Min Load Current: 6VDC/1A
Mechnical Life: 2*10^5 Times
Electrical Life: 7*10^4 Times
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: CE/TUV/UL/CCC
Model Number: NNC82C-150
Payment & Shipping Terms
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 2k pcs 7 days
Product Description

New Energy Relay NNC82C-150

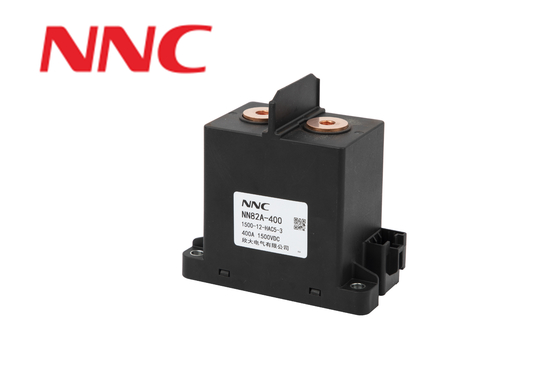

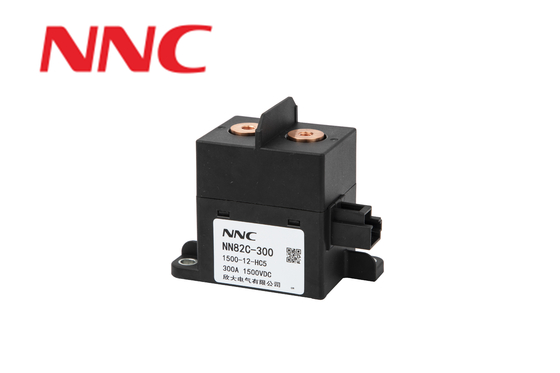

NNC New Energy Relay NN82C-150 with Non-polarity coil and load terminals for Electric Vehicle 0NNC New Energy Relay NN82C-150 with Non-polarity coil and load terminals for Electric Vehicle 1

Specification

Main Contact Parameters

structure H
contact material silver copper alloy
contact resistance ≤0.5mΩ(@150A)
rated load DC1500V 150A
contact voltage drop /
electrical life
Making:
400A impact(RC=1ms) 150A(steady state)/50VDC, 7,000 operations
400A impact(RC=1ms) 30A(steady state)/1500VDC, 7,000 operations
Breaking:
200 operations(200A 750VDC)
100 operation(150A 1500VDC)
1 operation(1500A 750VDC)
short-circuit current 6000A*(5ms),1 time
rated current 150A
min load current 6VDC/1A
mechanical life 200,000 times



Port Auxiliary Contact Parameters

structure /
contact resistance /
rated load /
switch electricity life /



Coil Parameters

Rated voltage (Vd.c) 12 24
input voltage (Vd.c) 9-16 18-32
operation voltage (Vd.c) 9 18
Release voltag (Vd.c) 1 2
Coil Resistance (2) (1 ± 7%) 26.2 104.8
Starting current(A) 0.46 0.23
Starting time(ms)max. / /
Nominal coil current(A) 0.46 0.23
Starting power consumption(W) 5.5 5.5
Steady state power consumption(W) 5.5 5.5



Insulation resistance between coil and contacts Above the 1,000 MQ
Between open contacts of same pole /
Between main and auxiliary contacts Above the 1,000 MQ
Dielectric strength between coil and contacts AC4000V/1 Minutes
Between open contacts of same pole /
Between main and auxiliary contacts AC4000V/1 Minutes
Shock Resistance 10kV (1.2*50 μ s)
operate time Below the 30ms
release time Below the 10ms
Suction and jump Below 5ms
Vibration sinusoidal vibration 10-500 Hz double amplitude 1.5mm,
acceleration 49 m / s²
Strike stability turn on 588m/s², cut off 196 m/s²
strength 588 m/s²
operating temperature -40～+70℃
(No ice, no condensation)
operating humidity 5～85%RH
weight 12V About 260g
24V About 260g
48V /





Product Diagram(mm)

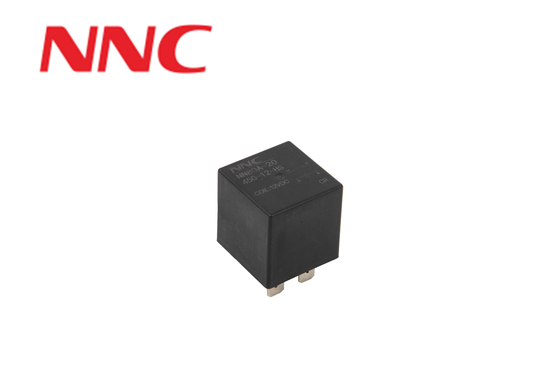

NNC New Energy Relay NN82C-150 with Non-polarity coil and load terminals for Electric Vehicle 2

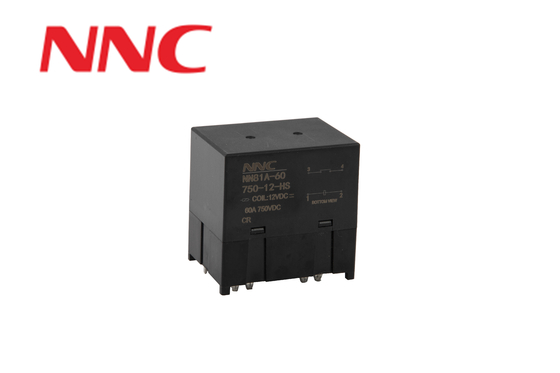

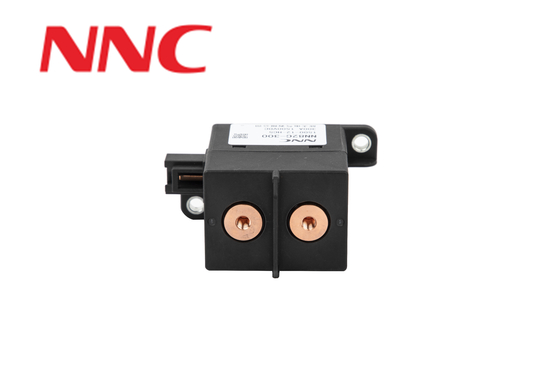

NNC New Energy Relay NN82C-150 with Non-polarity coil and load terminals for Electric Vehicle 3NNC New Energy Relay NN82C-150 with Non-polarity coil and load terminals for Electric Vehicle 4NNC New Energy Relay NN82C-150 with Non-polarity coil and load terminals for Electric Vehicle 5
