New Energy DC Relay auto parts eletric vehicle NN80A for Solar energy storage charging pile

600pcs
MOQ
get latest price
Price
New Energy DC Relay auto parts eletric vehicle NN80A for Solar energy storage charging pile
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: New Energy Relay
Structure: H(Normally Open)
Contact Material: Silver Copper Alloy
Rated Load: DC750V 20A
Min Load Current: 6V/1A
Mechnical Life: 2*10^5 Times
Electrical Life: 7.5*10^4 Times
Coil Voltage: DC12V/DC24V/DC48V
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: CE/TUV/UL/CCC
Model Number: NNC80A
Payment & Shipping Terms
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 2k pcs 7 days
Product Description

New Energy Relay NNC80A Series

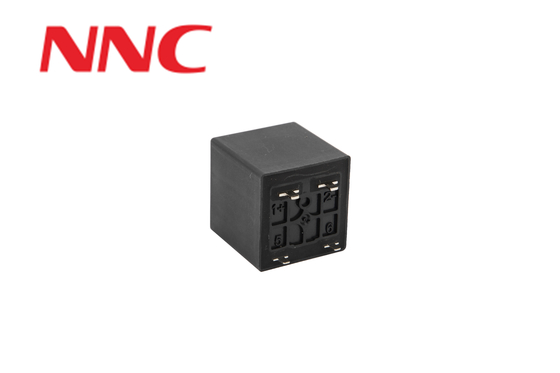

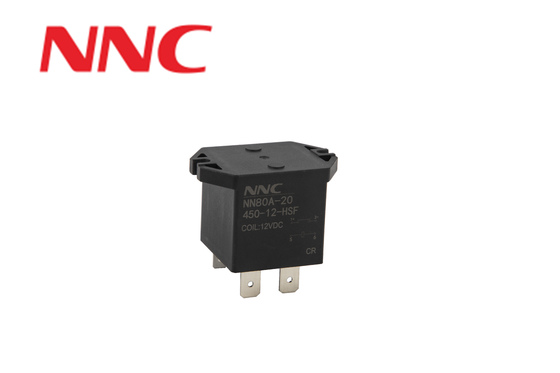

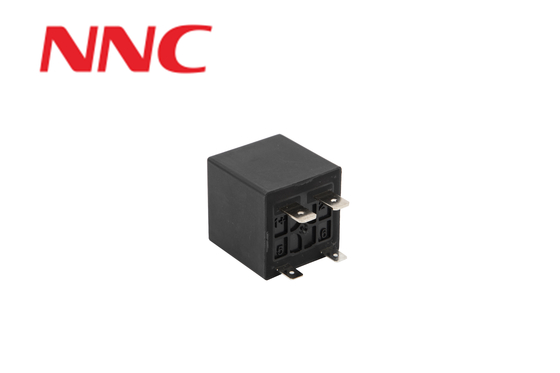

New Energy DC Relay auto parts eletric vehicle NN80A for Solar energy storage charging pile 0New Energy DC Relay auto parts eletric vehicle NN80A for Solar energy storage charging pile 1New Energy DC Relay auto parts eletric vehicle NN80A for Solar energy storage charging pile 2

Specification

Main technical parameters
Oral main contact parameters
structure H   turn on the electricity life 20A / 450V, 75,000 times
contact material silver alloy
contact resistance ≤5mΩ (@1A)   divide power off life /
rated load     short-circuit current /
switch electricity life 20A / 750V, 1,000 times   rated current 20A
20A / 450V, 3,000 times
10A / 450V, 10,000 times   min load current 6V/1A
                  mechanical life 200,000 times
Port auxiliary contact parameters
structure /   rated load /
contact resistance /   switch electricity life /

coil parameters
Rated voltage (Vd.c) 12 24 48   starting current (A) 0.25 0.125 0.0625
input voltage (Vd.c) ≤9 ≤18 ≤36   Startup time (ms) / /
operation voltage (Vd.c) 9~14 18-28 36~56   rated current (A) 0.25 0.125 0.0625
Release voltag (Vd.c) ≥1 ≥2 ≥4   Startup power (W) 3 3 3
Coil Resistance (Q) (1 ± 7%) 48 192 768   steady state power (W) 3 3 3
Note : " : when the rated voltage
Port performance parameters, mouth safety certification
Insulation resistance between coil and contacts Above the 1,000 MQ UL 1. Load of 1 :
20A / 450V, 6,000 times
2.Resistive breaking:
40A@450Vd.c., 500 Times
Between open contacts of same pole /
Between main and auxiliary contacts Above the 1,000 MQ
Dielectric strength between coil and contacts AC4000V1 Minutes
Between open contacts of same pole / CE/TUV /
Between main and auxiliary contacts AC4000V1 Minutes
Shock Resistance 10kV (1.2*50 μ s)
operate time Below the 30ms
release time Below the 10ms CCC 1. Load of 1:20A / 450V
2. Load of 2:40A / 200V
Suction and jump Below 5ms
Vibration sinusoidal vibration 10-500 Hz double amplitude 1.5mm,
acceleration 49 m / s2
Strike stability 196 m/s2
strength 490 m/s2
operating temperature -40~+85ºC
(No ice, no condensation)
operating humidity 5~85%RH
weight 12V About 50g
24V About 50g
48V About 50g
Note : The above values are the initial values at normal temperature, for other requirements
Product appearance, installation and wiring diagram



Product Diagram(mm)

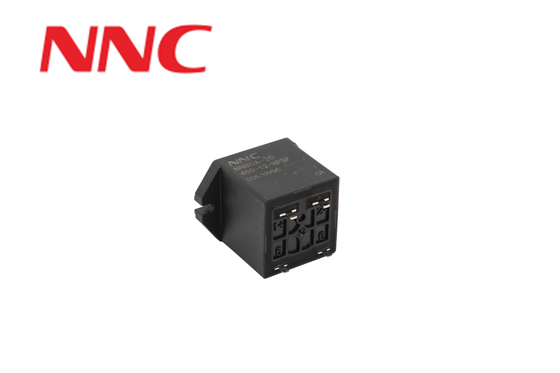

New Energy DC Relay auto parts eletric vehicle NN80A for Solar energy storage charging pile 3

New Energy DC Relay auto parts eletric vehicle NN80A for Solar energy storage charging pile 4

New Energy DC Relay auto parts eletric vehicle NN80A for Solar energy storage charging pile 5

New Energy DC Relay auto parts eletric vehicle NN80A for Solar energy storage charging pile 6

New Energy DC Relay auto parts eletric vehicle NN80A for Solar energy storage charging pile 7New Energy DC Relay auto parts eletric vehicle NN80A for Solar energy storage charging pile 8New Energy DC Relay auto parts eletric vehicle NN80A for Solar energy storage charging pile 9
