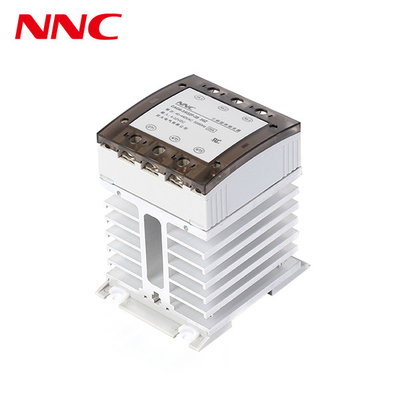

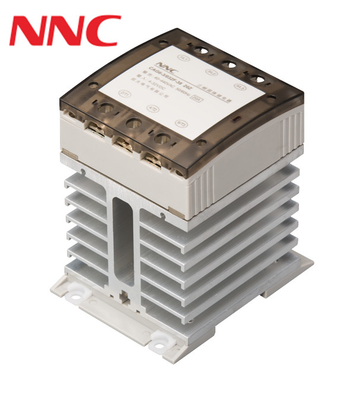

UL Certified three phase Solid State Relay CAG6-3/250F-38 10A-40A with Heat Sink and DIN-Rail Mounting
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Control Voltage | 032F: 3-32V DC Input; 250F: 90-250V AC Input; | Load Voltage | 38: 40-440VAC (Only For AC Output) |
|---|---|---|---|
| Load Current | 10-40A(Three Phase) | Theory | Solid State Relay |
| Protect Feature | Protective Cover For Safe Operating |
Product Description
CAG6-3 DIN Rail Series Solid State Relay
Features:
Protective cover for safe operating
With heat sink,DIN-rail mounting
Zero-crossing for AC output.
Wide range of current from 10A to 80A.
Built-in LED operation indicator
UL:E235027
Certificate
Certificate
Shipment & Packaging
Shipment & Packaging
|

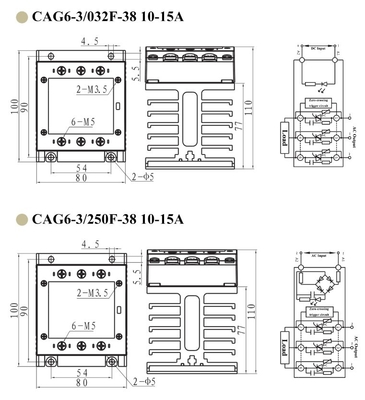

CAG6-3(10-15A)
|

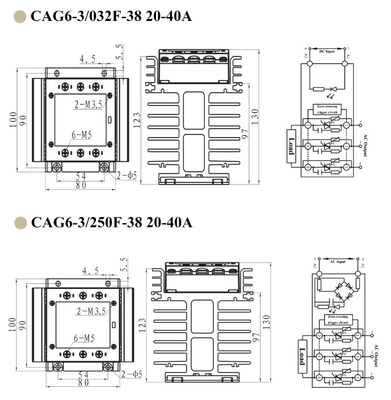

CAG6-3(20-40A) | |||
| Packing | Inner Box | Paper box(pcs) | 1 | 1 |
| Outer Box | Paper box(pcs) | 12 | 12 | |
| Dimension of the carton | CTN |
402×265×315mm
|
402×288×370mm
|
|
| Weight | 1ctn | G.W:9KG N.W:8KG | G.W:12KG N.W:11KG |
FAQ
FAQ
Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.
Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.
Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)
Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.
Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.
Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.
Q7: What is your warranty time of the products?
A7: 12-24 months
