Name: Clion NNT3 HHT3 Full-isolated three-phase 0-5V DC 0-10V DC control solid state regulator
Brand: CLION ELECTRIC CO.,LTD
SKU: NNT3 Full-isolated single-phase voltage regulation module
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Control Signal: U: Single Phase; 3: Three Phase; (0-5VDC/ 0-10VDC/ 4-20mA/ 2–10KΩ Potentiometer Control)

Load Voltage: 22: 220VAC; 38: 380VAC

Rated Load Current: 10-125A

Terminal: Screw Terminals

Size: 106*75*33mm

Theory: Solid State Relay

Basic Infomation

Place of Origin: China

Brand Name: NNC

Certification: UL

Model Number: NNT3 Full-isolated single-phase voltage regulation module

Payment & Shipping Terms

Delivery Time: 7-14 days

Payment Terms: L/C, T/T

Supply Ability: 50,000pcs a week

Gallery

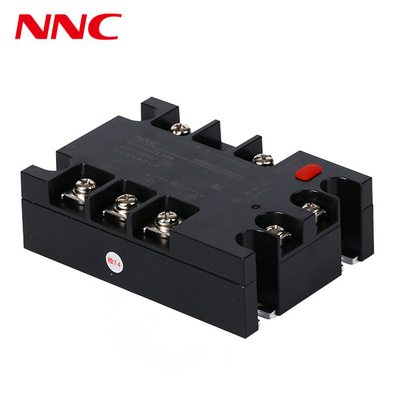

Clion NNT3 HHT3 Full-isolated three-phase 0-5V DC 0-10V DC control solid state regulator

Product Description

NNT3 Control Series Solid State Relay

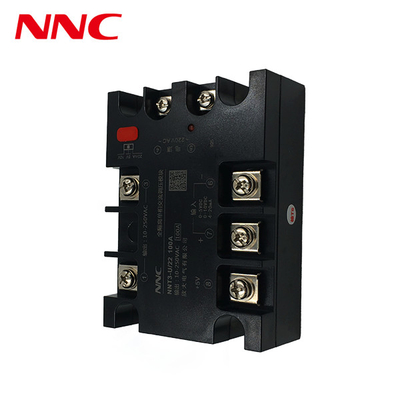

Clion NNT3 HHT3 Full-isolated three-phase 0-5V DC 0-10V DC control solid state regulator 0

Features:

Single phase/Three phase

Rating current from 10A to 125A

Potentiometer control 2-10K?

Current control 4-20mA

Voltage control 0-5VDC/0-10VDC

Built-in LED operation indicator

Certificate

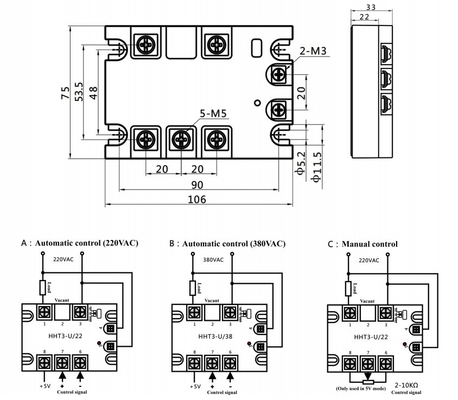

Clion NNT3 HHT3 Full-isolated three-phase 0-5V DC 0-10V DC control solid state regulator 4

Shipment & Packaging

Packing			NNT3-U	NNT3-3
	Inner Box	Paper box(pcs)	1	1
	Outer Box	Paper box(pcs)	25	25
	Dimension of the carton	CTN	380×210×175mm	380×210×175mm
	Weight	1ctn	G.W:10KG N.W:9KG	G.W:12KG N.W:11KG

Clion NNT3 HHT3 Full-isolated three-phase 0-5V DC 0-10V DC control solid state regulator 5

FAQ

Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.

Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.

Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)

Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.

Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.

Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.

Q7: What is your warranty time of the products?
A7: 12-24 months
