Name: Compact Design NNG41 Series Solid State Relay with 6.2mm Thickness Socket
Brand: CLION ELECTRIC CO.,LTD
SKU: NNG41-1/032F-38 1-2A
Price: 1.20 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Size: 28*5*18.5mm

Contact Load: Low Current

Theory: Solid State Relay

Load Current: 1A 2A

Type: Slim PCB SSR

Weight: Approx. 28g

Input Voltage: 032F: 3-32V DC

Output Voltage: 06: 5-60VDC; (Only For DC Output) 22: 24-240VAC; 38: 24-440VAC; (Only For AC Output)

Basic Infomation

Place of Origin: China

Brand Name: NNC

Model Number: NNG41-1/032F-38 1-2A

Payment & Shipping Terms

Packaging Details: carton packing

Delivery Time: 8-15days

Payment Terms: T/T, L/C

Supply Ability: 30k pcs 7 days

Gallery

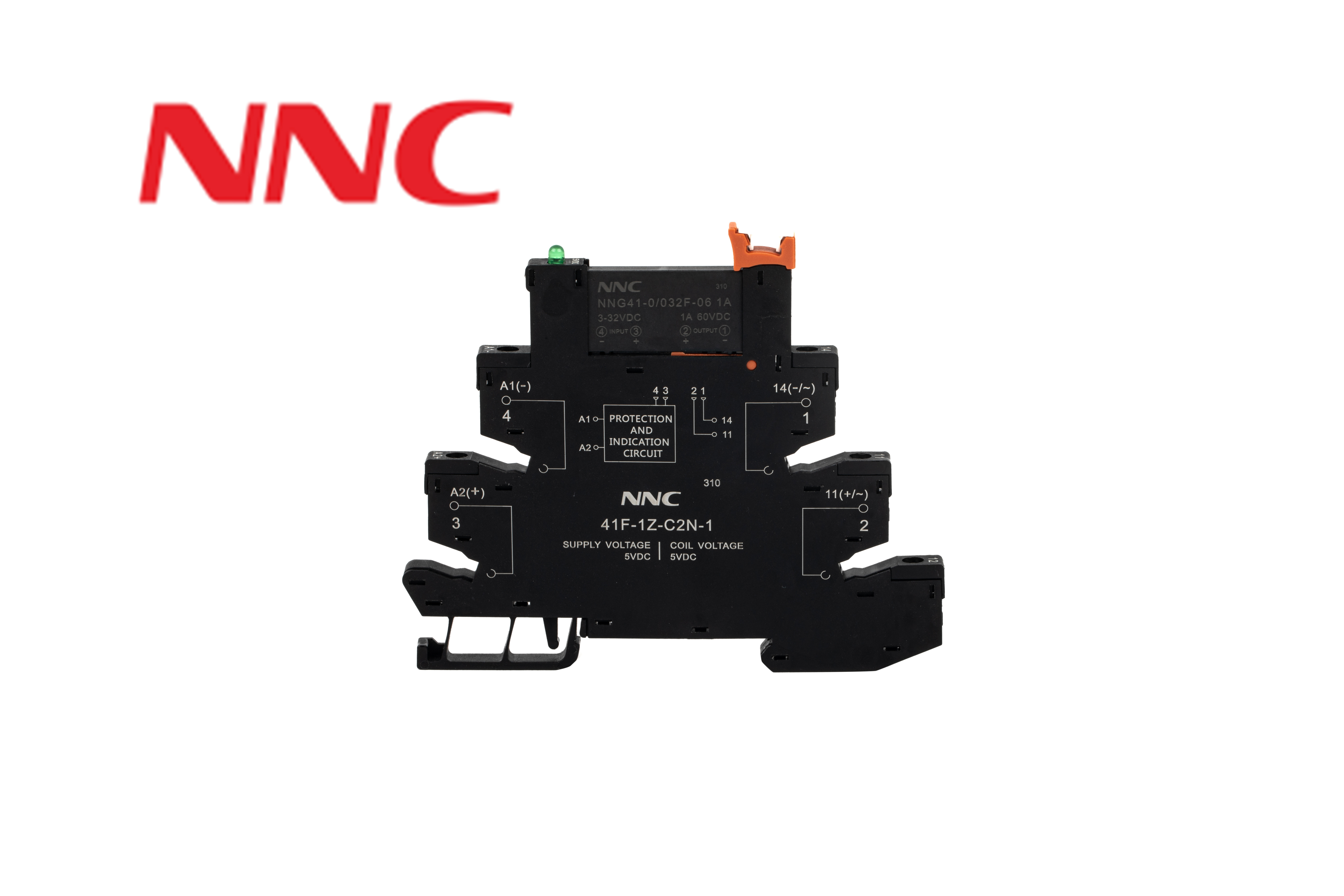

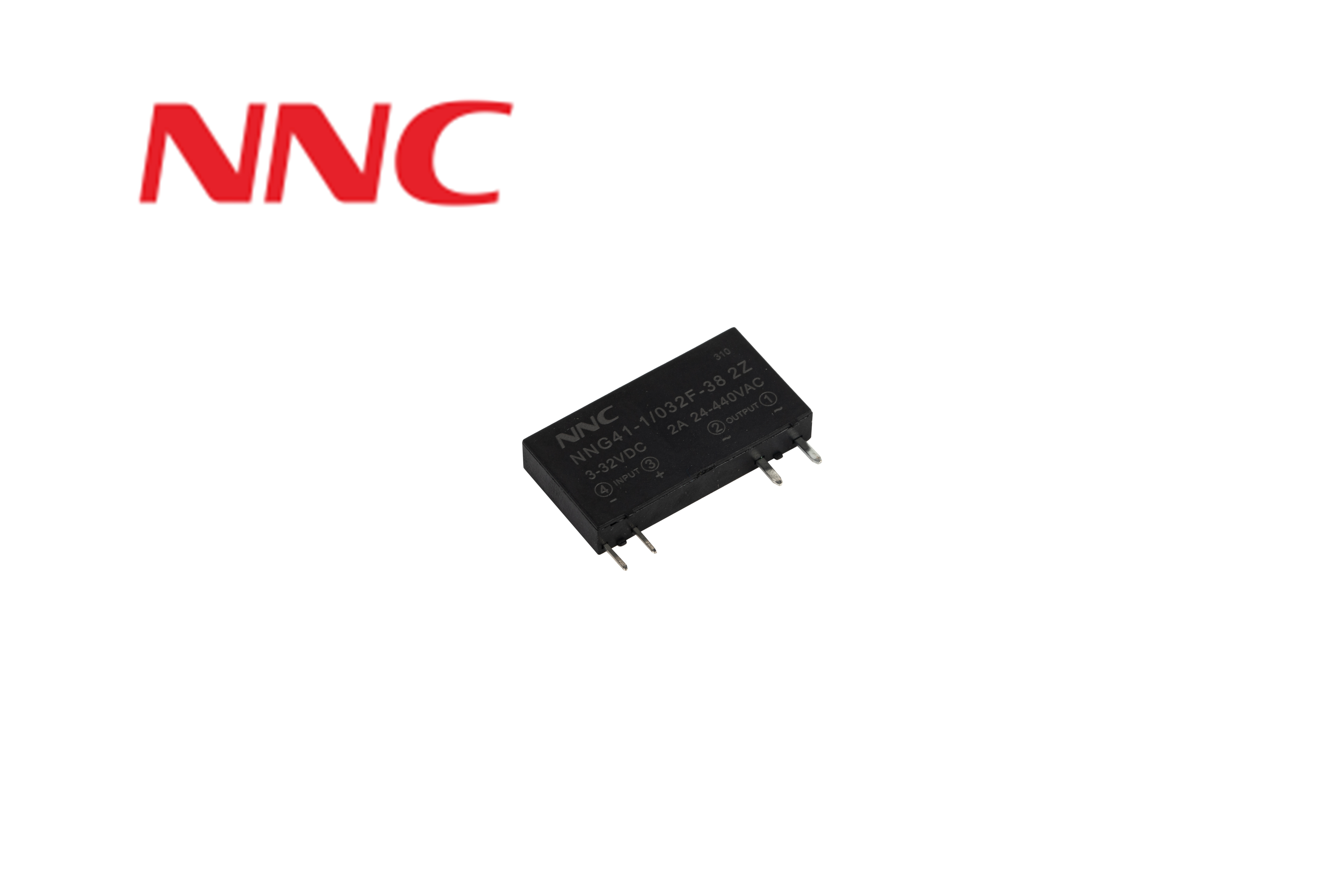

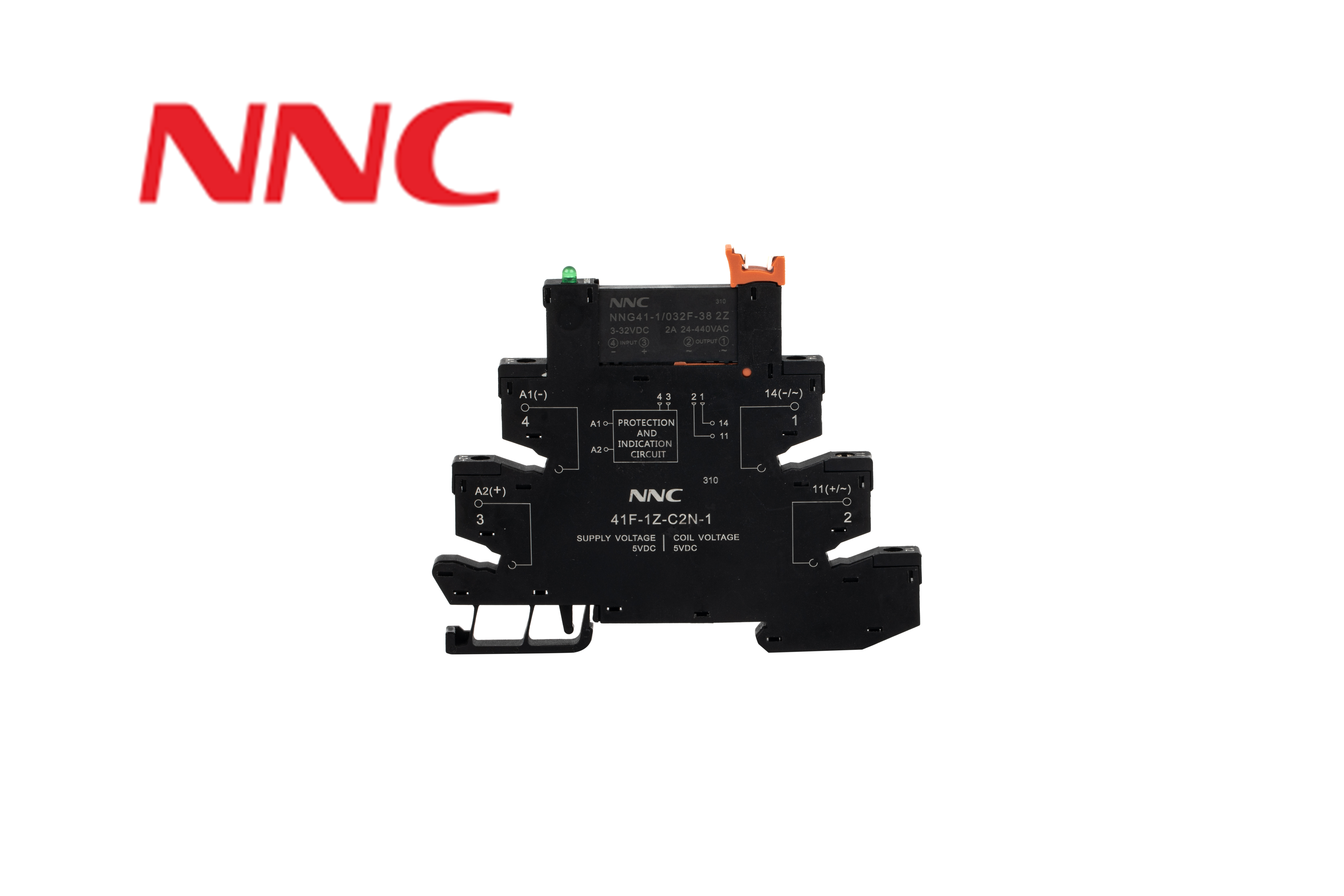

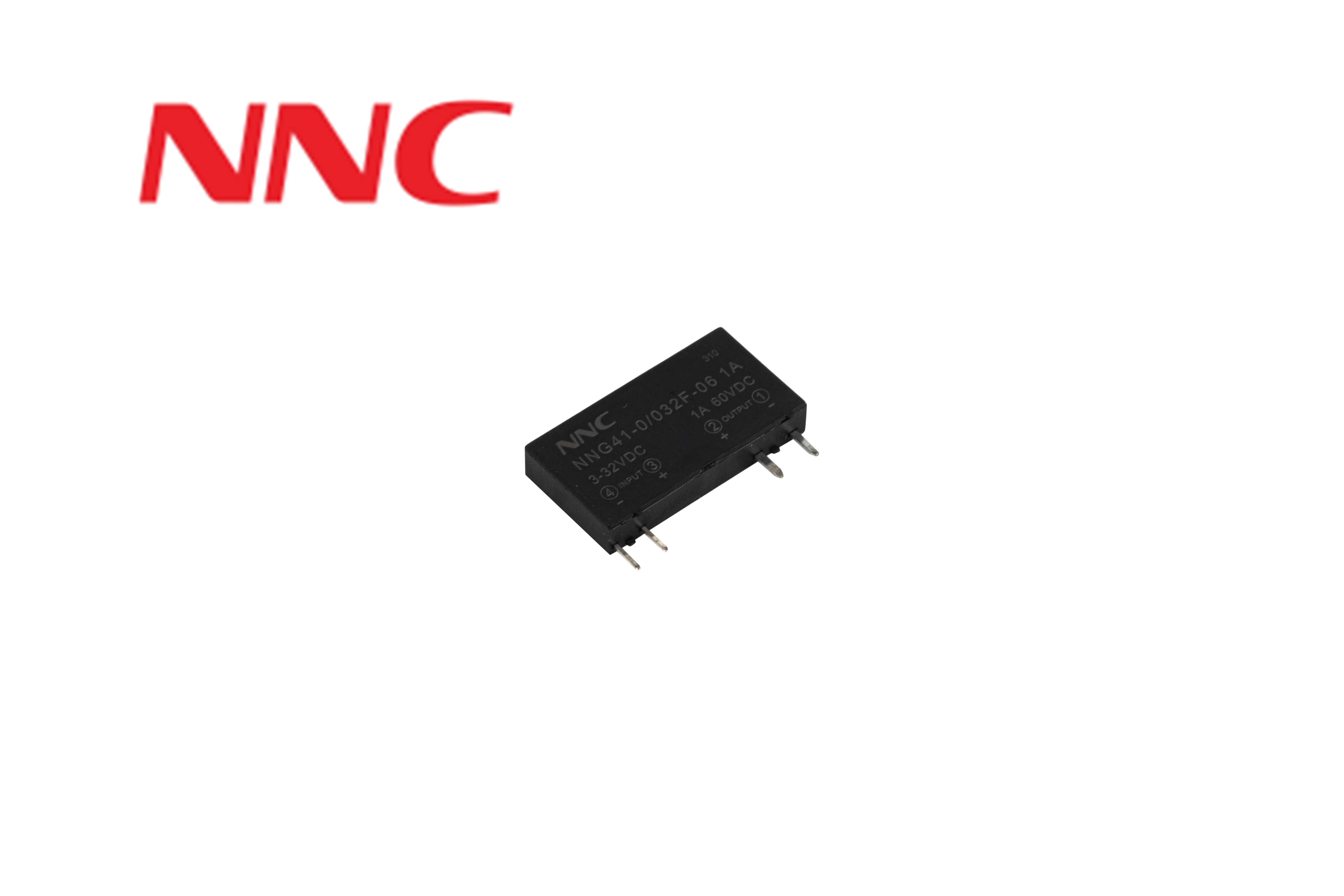

Compact Design NNG41 Series Solid State Relay with 6.2mm Thickness Socket

Product Description

NNG41 Series Solid State Relay

Features:

Slim PCB SSR

With 6.2mm thickness socket

AC/DC output,DC input

Bi-direction SCR for AC output

Bi-polar transistor for DC output

LED indicator

ORDERING INFORMATION

*Note: Not all combinations of current and voltage are available

NNG41 - 1 / 032F - 38 1A - D ***

1.NNG41 series:

2.Load power supply: 0: DC Output; 1: AC Output;

3.Control voltage: 032F: 3-32V DC Input;

4.Load voltage: 06: 5-60VDC; (Only for DC output) 22: 24-240VAC; 38: 24-440VAC; (Only for AC output)

5.Rated load current: 1-2A

6.Socket: D: With socket; Blank: Without socket(only for maintenance)

7.Special code: ***: Customer Special Requirement; Blank: Standard

Compact Design NNG41 Series Solid State Relay with 6.2mm Thickness Socket 2

Compact Design NNG41 Series Solid State Relay with 6.2mm Thickness Socket 3

Compact Design NNG41 Series Solid State Relay with 6.2mm Thickness Socket 4

Compact Design NNG41 Series Solid State Relay with 6.2mm Thickness Socket 5

Compact Design NNG41 Series Solid State Relay with 6.2mm Thickness Socket 6

Certificate

Compact Design NNG41 Series Solid State Relay with 6.2mm Thickness Socket 7

Shipment & Packaging

Packing	Outer Box	Paper box(pcs)	1600
	Dimension of the carton	CTN	380×215×175mm
	Weight	1pc	Approximate:28G
	Weight	1ctn	G.W:15KG N.W:14KG

Compact Design NNG41 Series Solid State Relay with 6.2mm Thickness Socket 8

FAQ

Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.

Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.

Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)

Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.

Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.

Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.

Q7: What is your warranty time of the products?
A7: 12-24 months
