Hot selling Clion brand HHG1-3 Three phase SSR new design 40A solid state relay 10A-80A

100PCS
MOQ
Hot selling Clion brand HHG1-3 Three phase SSR new design 40A solid state relay 10A-80A
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black
Basic Infomation
Place of Origin: China
Brand Name: Clion
Certification: UL
Model Number: HHG1 Three phase SSR
Payment & Shipping Terms
Packaging Details: paper box dimension 380*215*175mm
Delivery Time: 10-20 days
Payment Terms: T/T, Western Union
Supply Ability: 10K per month
Product Description

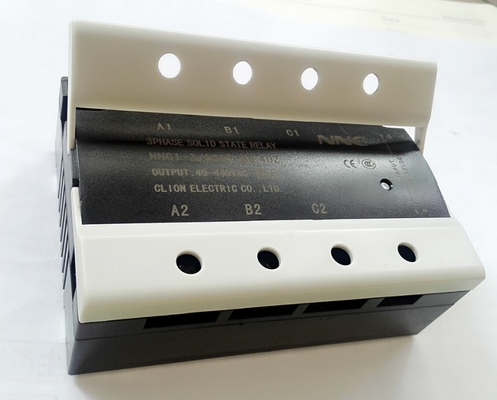

Hot selling Clion brand HHG1-3 Three phase SSR new design 40A solid state relay 10A-80A 0

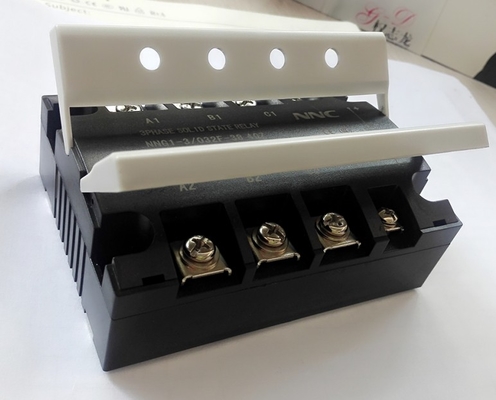

Hot selling Clion brand HHG1-3 Three phase SSR new design 40A solid state relay 10A-80A 1

Part NO.
HHG1-3/032F-38 10-120A(SSR-DA)
HHG1-3/250F-38 10-120A(SSR-AA)
　
DC---AC
AC---AC
Description
Three phass SSR
Three phass SSR
Control Voltage
014:3-14VDC 032:3-32VDC
250:90-250VAC
Control Current
5-28mA
5-30mA
Turn-on Voltage
3VDC
90VAC
Turn-off Voltage
1VDC
10VAC
Reverse time
/
/
Reverse Voltage
32VDC
/
Load Voltage
38:40-440VAC
38:40-440VAC
Load Current
10A,15A,20A,25A,30A,40A,60A,80A,100A,120A
10A,15A,20A,25A,30A,40A,60A,80A,100A,120A
Transient Voltage
38:1000VAC
38:1000VAC
On-state Voltage Drop
＜1.6VAC
＜1.6VDC
ON-OFF Time
≤10mS
≤10mS
Off-state Leakage Current
≤10mA
≤10mA
Dielectrics Voltage-resistance
≥2500VAC
≥2500VAC
Insulation Resistance
500MΩ 500VDC testing
500MΩ 500VDC testing
Ambient temperature
-30～80℃
-30～80℃
Dimensions
106L*75W*31.5H
106L*75W*31.5H
Indicated Methods
LED
LED
Installation
Screw fixing
Screw fixing
Packing
Inner Box (PCS)
1
1
Outer CTN (PCS)
30
30
CTN Size
380*215*175mm
380*215*175mm
Weight
10A≤365g/PCS G.W:12kg N.W:11kg
40A≤460g/PCS G.W:15kg N.W:14kg
80A≤500g/PCS G.W:16kg N.W:15kg
120A≤540g/PCS G.W:17.2kg N.W:16.2kg
Radiator
HH034,HH035,HH036,HH037,HH038
HH034,HH035,HH036,HH037
Remarks
1.Load current＞10A ,a radiator is necessary,Load current＞80A, fan is necessary.
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage

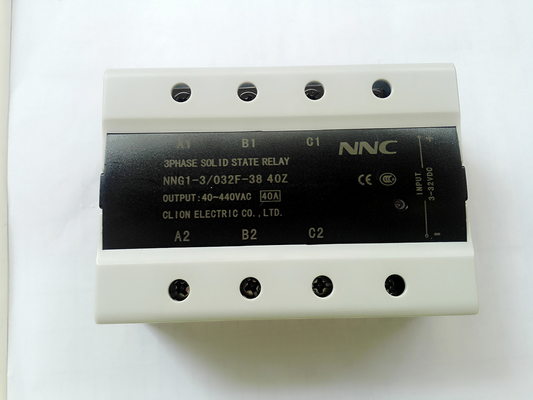

Hot selling Clion brand HHG1-3 Three phase SSR new design 40A solid state relay 10A-80A 2
