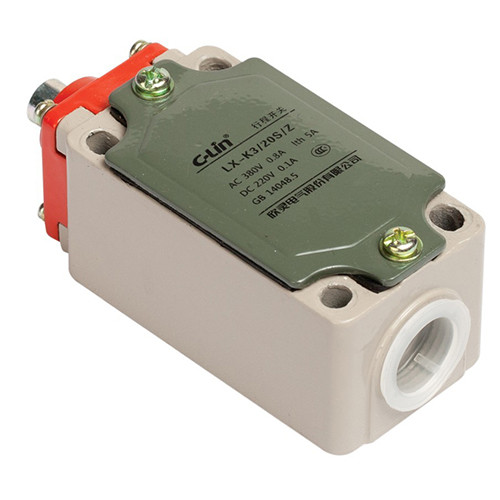

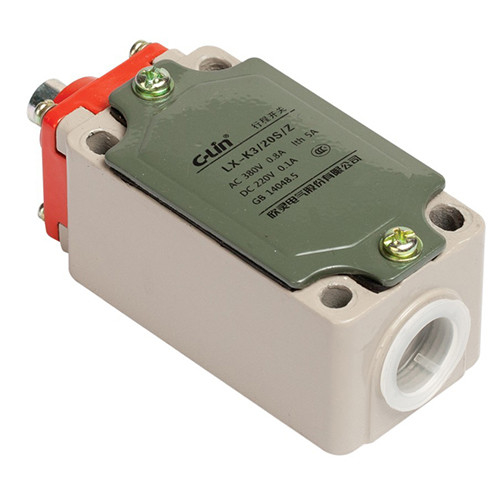

LX-K3 Series Limit Switch
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
Operating speed:0.5mm~0.5m/s
Operating frequency:Mechanical: 120 operations/minute
Electrical: 30 operations/minute
Contact resistance:50mΩ max.(Initial value)
Insulation resistance:100mΩ min.(at DC500V)
Conventional thermal current:5A
Electric Parameter:AC380V/0.8A DC220V/0.1A
Dielectric strength:1890VAC, 50/60Hz 1min between terminals of the same polarity
2500VAC, 50/60Hz 1min between each terminal and noN-current-carrying metal parts
2500VAC, 50/60Hz 1min between current-carrying metal parts and ground
Vibration resistance:Malfunction: 10Hz~55Hz, 1.5mm double amplitude
Shock resistance:Destruction: 1000m/S² Malfunction: 300m/S²
Ambient temperature:Ambient operation temperature: -5℃~+60℃ with no icing
Ambient humidity:Ambient operation humidity: 90% max.
Life expectancy:Mechanical: 6,000,000 operations min.
Electrical: 300 000 operations min.
Degree of protection:IP52
