NNC miniature weight Limit Switch ESL4ND series for electronics, machinery and light industry

500pcs
MOQ
get latest price
Price
NNC miniature weight Limit Switch ESL4ND series for electronics, machinery and light industry
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Speed: 0.1m/s-0.5m/s
Operating Frequency: Max.30operaitons/min
Contact Resistance: ＜25mΩ
Insulation Resistance: ＞100MΩ（＜500VDC）
Ambient Temperature: -20℃~70℃; ＜95%RH
Protection Level: IP65
Impulse Withstand Strength: Between Terminals Of Different Polarity:4KV
Weight: Approx.92g
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: CE/TUV/UL/CQC
Model Number: ESL4ND
Payment & Shipping Terms
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 2k pcs 7 days
Product Description

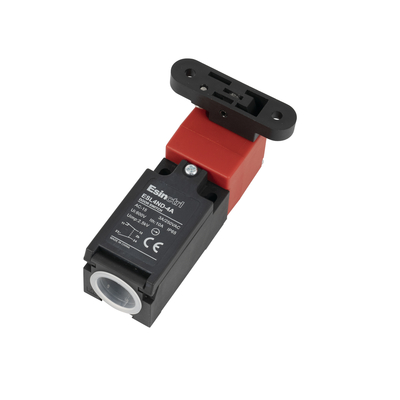

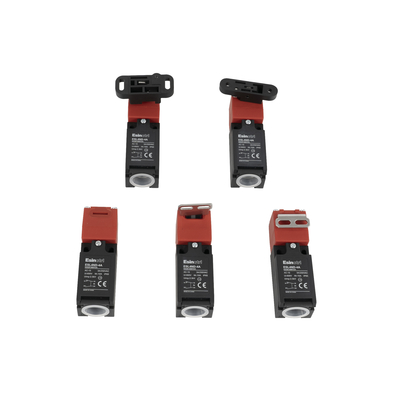

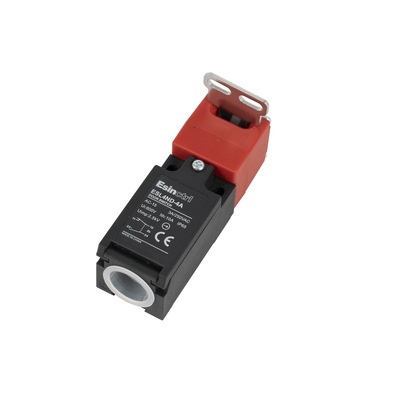

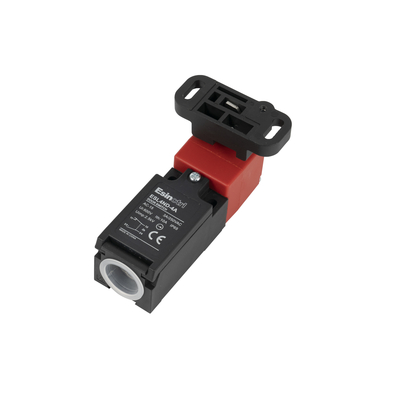

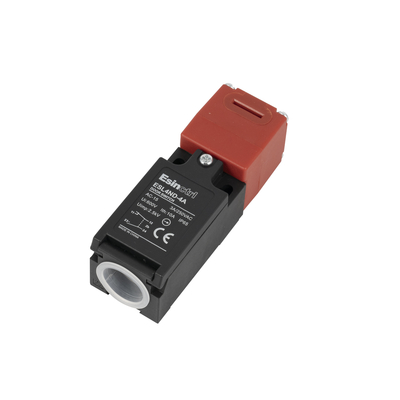

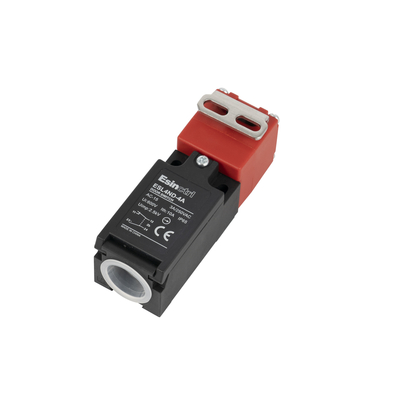

ESL4ND Series Limit Switch



Features

1.Safety door switch with variety of operating keys.
2.The built-in switch has a direct opening structure that force to disconnect the NC contact when contact welding occurs.
3.The built-in switch has the contact form includes with 1NC/1NO,2NC
NNC miniature weight Limit Switch ESL4ND series for electronics, machinery and light industry 0NNC miniature weight Limit Switch ESL4ND series for electronics, machinery and light industry 1NNC miniature weight Limit Switch ESL4ND series for electronics, machinery and light industry 2NNC miniature weight Limit Switch ESL4ND series for electronics, machinery and light industry 3NNC miniature weight Limit Switch ESL4ND series for electronics, machinery and light industry 4NNC miniature weight Limit Switch ESL4ND series for electronics, machinery and light industry 5



NNC miniature weight Limit Switch ESL4ND series for electronics, machinery and light industry 6NNC miniature weight Limit Switch ESL4ND series for electronics, machinery and light industry 7NNC miniature weight Limit Switch ESL4ND series for electronics, machinery and light industry 8
