Clion miniature weight Limit Switch ESL4NR series for electronics, machinery and light industry

500pcs
MOQ
get latest price
Price
Clion miniature weight Limit Switch ESL4NR series for electronics, machinery and light industry
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Speed: 1mm/s-0.5m/s
Operating Frequency: Max 30 Operations/min
Contact Resistance: ＜25mΩ
Insulation Resistance: ＞100MΩ（＜500VDC）
Electrical Endurance: 500,000 Operations Min(3A 125VAC,resistive Load);300,000 Operations Min(10A 250VAC,resistive Load)
Weight: Approx.92g
Operating Ambient: -40℃~70℃; ＜95%RH
Protection Level: IP67
Impulse Withstand Strength: Between Terminals Of Different Polarity:4KV
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: CE/TUV/UL/CQC
Model Number: ESL4NR
Payment & Shipping Terms
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 2k pcs 7 days
Product Description

ESL4NR Series Limit Switch



Features

1.Pull-reset safety limit switch series
2.The built-in switch has a direct opening structure that force to disconnect the NC contact when contact welding occurs.
3.The built-in switch has the contact form includes with 1NC/1NO,2NC,2NC/1NO,3NC
4.Conform to the EN60947-5-1 standard

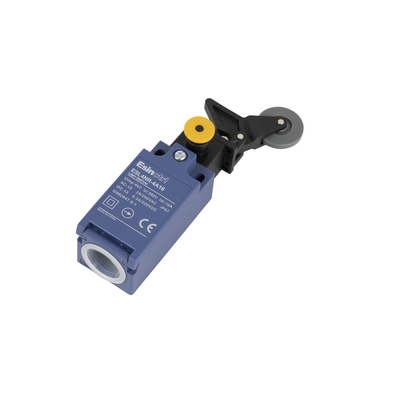

Clion miniature weight Limit Switch ESL4NR series for electronics, machinery and light industry 0

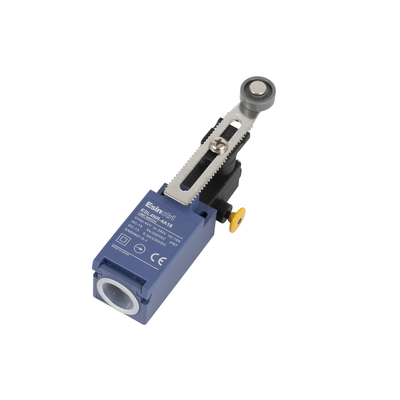

Clion miniature weight Limit Switch ESL4NR series for electronics, machinery and light industry 1

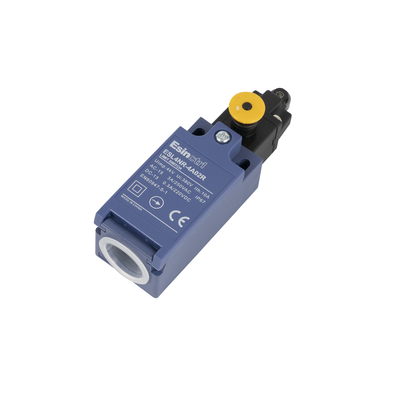

Clion miniature weight Limit Switch ESL4NR series for electronics, machinery and light industry 2

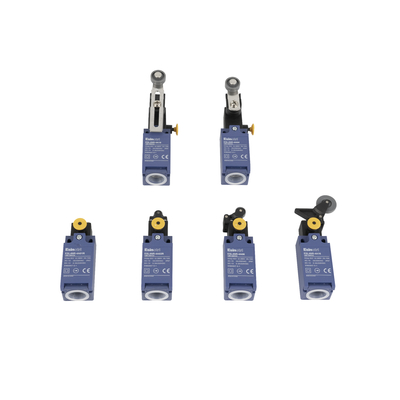

Clion miniature weight Limit Switch ESL4NR series for electronics, machinery and light industry 3

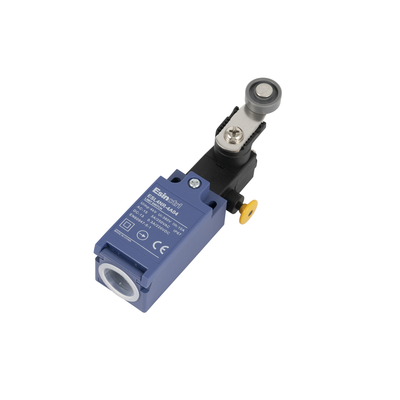

Clion miniature weight Limit Switch ESL4NR series for electronics, machinery and light industry 4

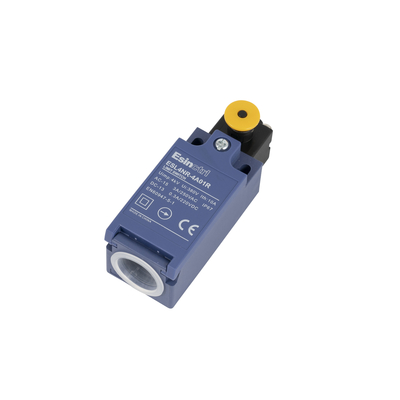

Clion miniature weight Limit Switch ESL4NR series for electronics, machinery and light industry 5



















Clion miniature weight Limit Switch ESL4NR series for electronics, machinery and light industry 6Clion miniature weight Limit Switch ESL4NR series for electronics, machinery and light industry 7Clion miniature weight Limit Switch ESL4NR series for electronics, machinery and light industry 8
