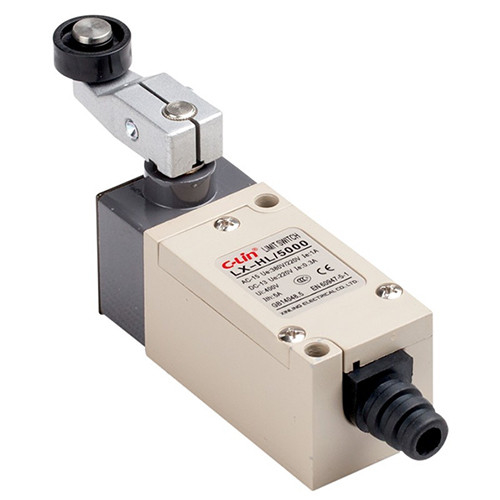

LX-HL Series Limit Switch

  • LX-HL Series Limit Switch
Place of Origin China
Brand Name Clin
Certification CE
Model Number LX-HL
Minimum Order Quantity 100
Price Get Latest Price
Packaging Details Export packing
Delivery Time 30 days
Payment Terms TT
Supply Ability 50,000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

Operating speed:0.5mm~0.5m/s
Operating frequency:Mechanical: 120 operations/minute
             Electrical: 30 operations/minute
Contact resistance:25mΩ max.(Initial value)
Insulation resistance:100mΩ min.(at DC500V)
Conventional thermal current:5A
Electric Parameter:AC380V, AC220V/1A   DC220V/0.3A
Dielectric strength:1890VAC, 50/60Hz 1min between terminals of the same polarity
             2500VAC, 50/60Hz 1min between each terminal and non-current-carrying metal parts
             2500VAC, 50/60Hz 1min between current-carrying metal parts and ground
Vibration resistance:Malfunction: 10Hz~55Hz, 1.5mm double amplitude
Shock resistance:Destruction: 1000m/S²     Malfunction: 300m/S²
Ambient temperature:Ambient operation temperature: -5℃~+60℃ with no icing
Ambient humidity:Ambient operation humidity: 90% max.
Life expectancy :Mechanical: 5,000,000 operations min.
         Electrical: 300 000 operations min.
Degree of protection:IP65
