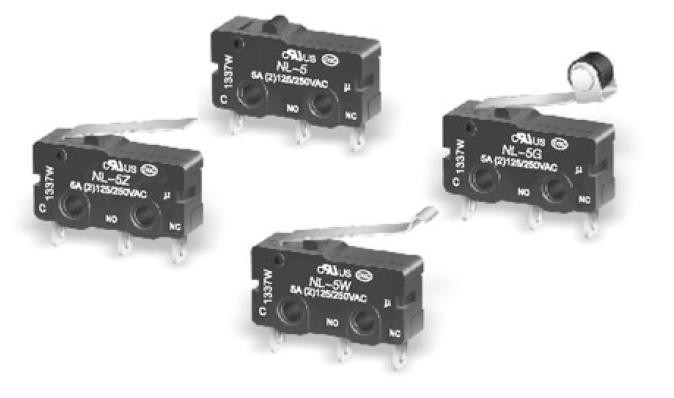

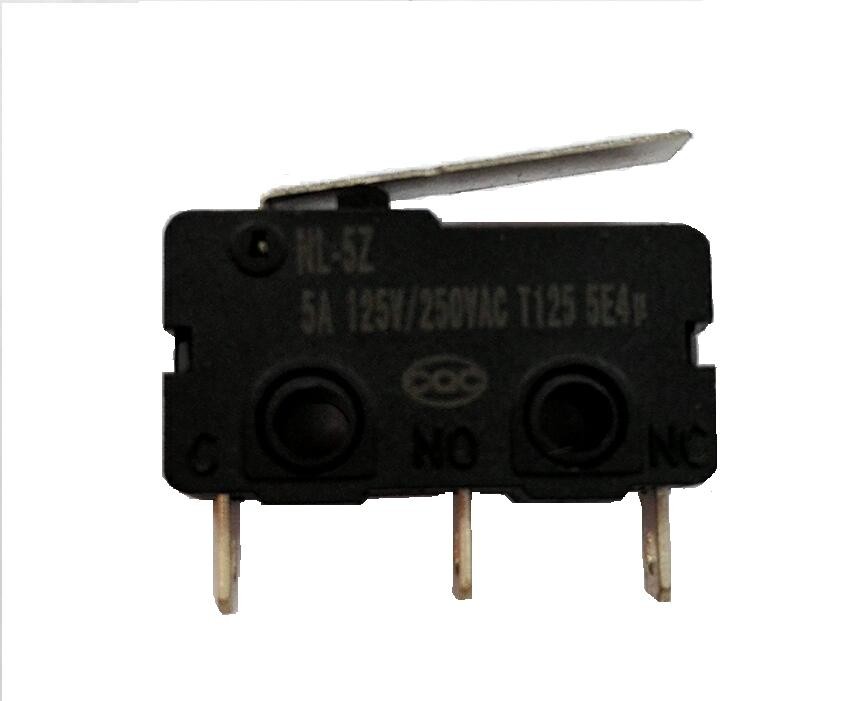

NL-5Z micro switch
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
- https://clion.en.alibaba.com/product/60607191670-804191404/NNC_micro_switch_NL_5Z_Short_Hinge_Lever_5_10A_125v_250v_hot_selling_products.html?spm=a2700.8304367.0.0.Baxh5r
- Specifications:
- Operating speed: 0.1 to 1000mm/seconds of pin plunger, 0.5 to 1000mm/seconds of lever
- Contact resistance: 50mΩ maximum (initial value)
- Insulation resistance: 100MΩ minimum (at 500V DC)
- Dielectric strength:
- 1000V, 50/60Hz 1 minute between terminals of the same polarity
- 1500V, 50/60Hz 1 minute between each terminal and no-current-carrying metal parts
- 1500V, 50/60Hz 1 minute between current-carrying metal parts and ground
- Contact material: silver alloy
- Protection grade: PTI IEC IP40/175
- Protection grade of electric shock: class Ⅰ
- Ambient temperature and humidity:
- Ambient operation temperature: -25 to +125℃ with no icing
- Humidity: 60% maximum
- Life expectancy:
- Mechanical: 1,000,000 operations minute
- Electrical: 100,000 operations minute
- Certifications: CQC (GB15092.1), UL (UL61058, CSA-C22.2 No 61058-1) and ENEC (EN 61058-1)
