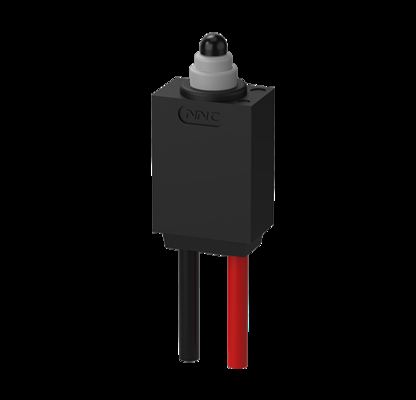

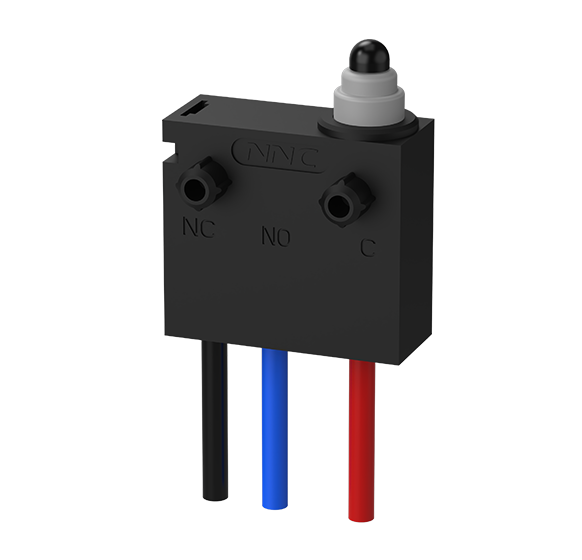

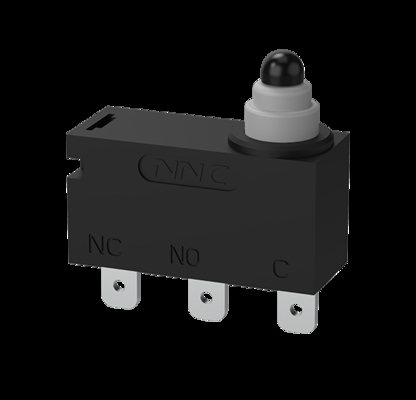

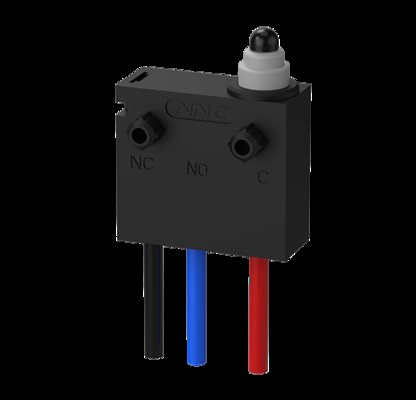

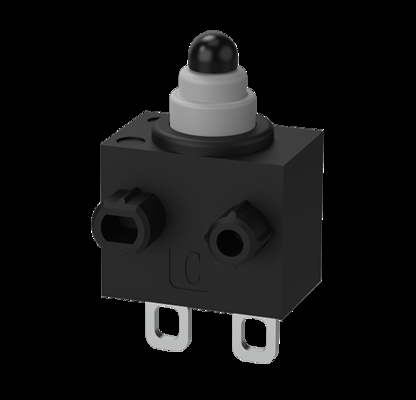

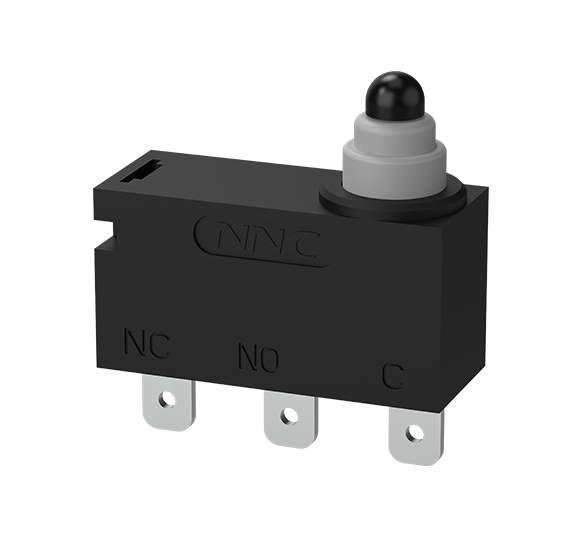

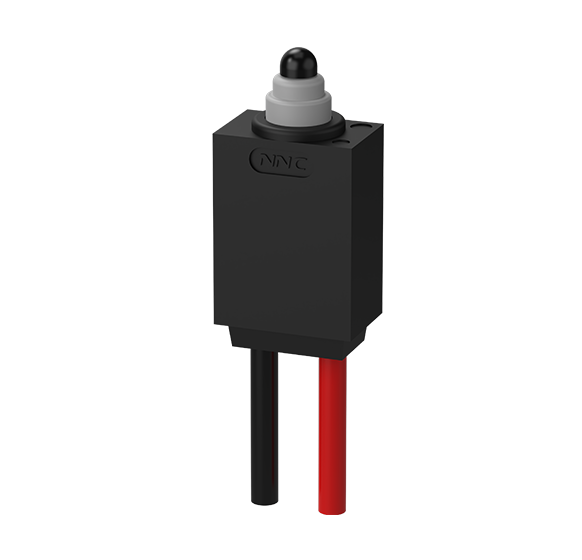

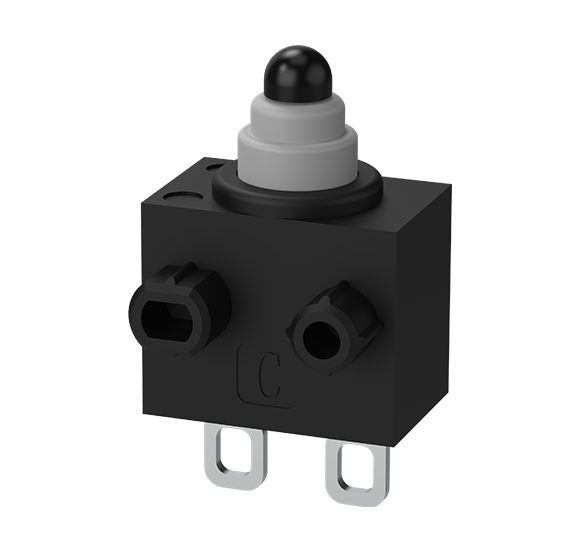

NNC Waterproof Micro Switch NFW8 series for electronics, machinery and light industry
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Speed | 0.1mm-1m/s | Operating Frequency | Mechanical: 200times/min; Electrical: 30 Times/min |
|---|---|---|---|
| Contact Resistance | 500mΩ Max | Insulation Resistance | ＞100MΩ（at 500VDC） |
| Endurance | Mechanical: 500,000 Operations Min.; Electrical: 300,000operations Min. | Dielectric Strength | Between Current Carrying Metal Parts And Ground: AC1500V,50/60Hz For 1min |
| Operating Ambient | -25℃~+125℃; ＜60%RH | Protection Level | IP67 |
Product Description
PRODUCT DISCRIPTION
