NL-5W micro switch

China NL-5W micro switch supplier
NL-5W micro switch supplier NL-5W micro switch supplier NL-5W micro switch supplier NL-5W micro switch supplier NL-5W micro switch supplier

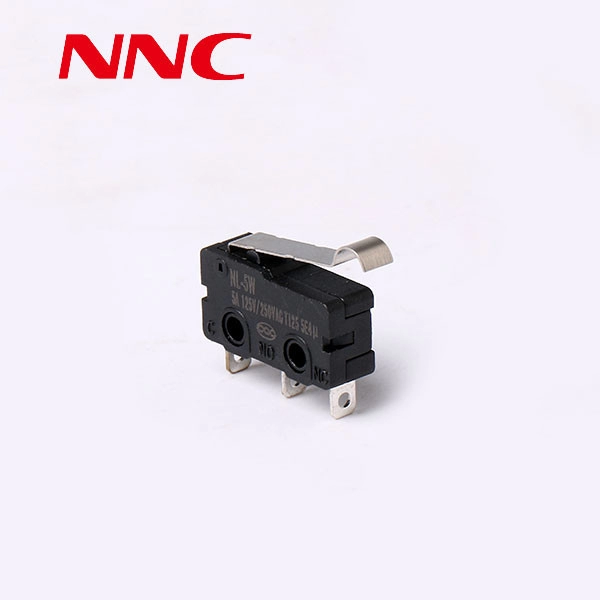

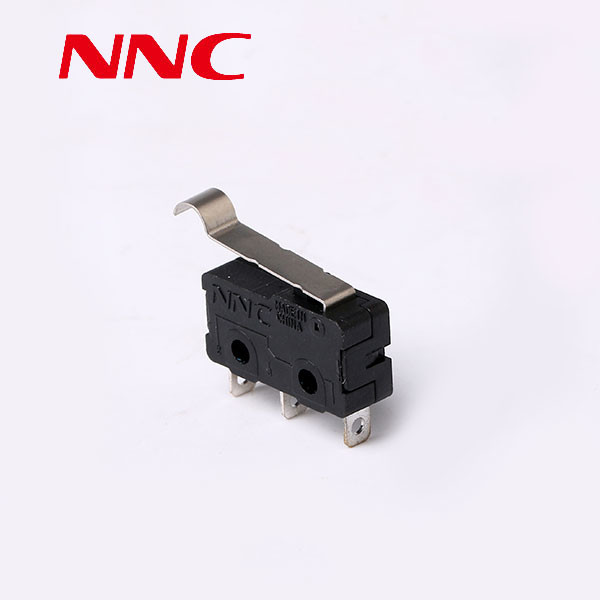

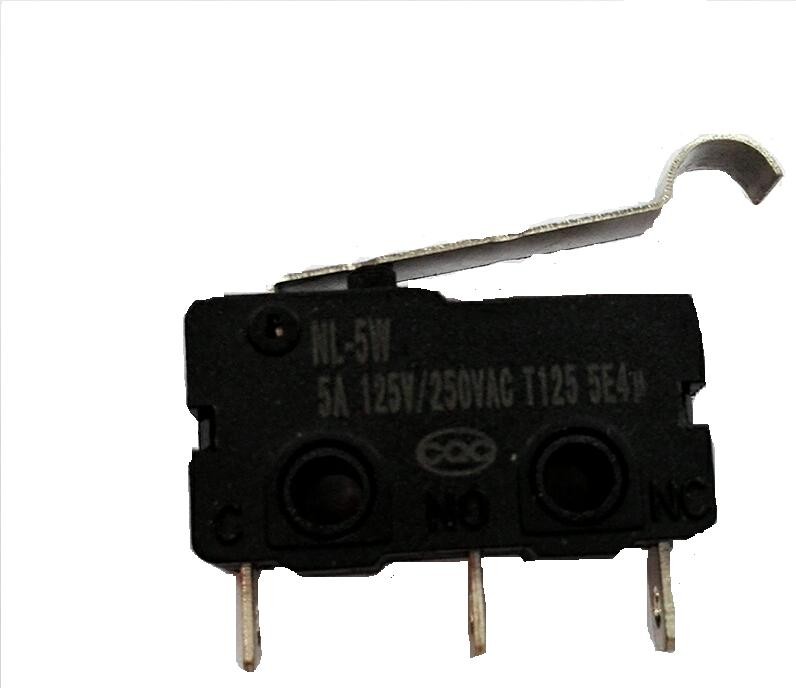

Large Image :  NL-5W micro switch

Product Details:

Place of Origin: China
Brand Name: NNC
Certification: CE, CQC,UL
Model Number: NL-5W

Payment & Shipping Terms:

Minimum Order Quantity: 5000
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 15 days
Payment Terms: TT
Contact Now
Detailed Product Description

  • https://clion.en.alibaba.com/product/60607081796-804191404/NNC_mini_micro_switch_NL_5W_Simulated_roller_lever_5_10A_125V_250v.html?spm=a2700.8304367.0.0.Baxh5r
  • Specifications:
    • Operating speed: 0.1 to 1000mm/seconds of pin plunger, 0.5 to 1000mm/seconds of lever
    • Contact resistance: 50mΩ maximum (initial value)
    • Insulation resistance: 100MΩ minimum (at 500V DC)
  • Dielectric strength:
    • 1000V, 50/60Hz 1 minute between terminals of the same polarity
    • 1500V, 50/60Hz 1 minute between each terminal and no-current-carrying metal parts
    • 1500V, 50/60Hz 1 minute between current-carrying metal parts and ground
  • Contact material: silver alloy
  • Protection grade: PTI IEC IP40/175
  • Protection grade of electric shock: class Ⅰ
  • Ambient temperature and humidity:
    • Ambient operation temperature: -25 to +125℃ with no icing
    • Humidity: 60% maximum
  • Life expectancy:
    • Mechanical: 1,000,000 operations minute
    • Electrical: 100,000 operations minute
  • Certifications: CQC (GB15092.1), UL (UL61058, CSA-C22.2 No 61058-1) and ENEC (EN 61058-1)
