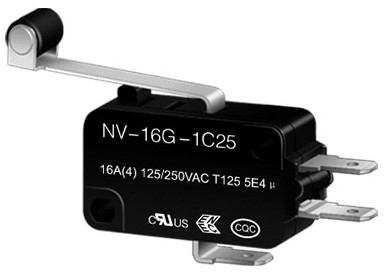

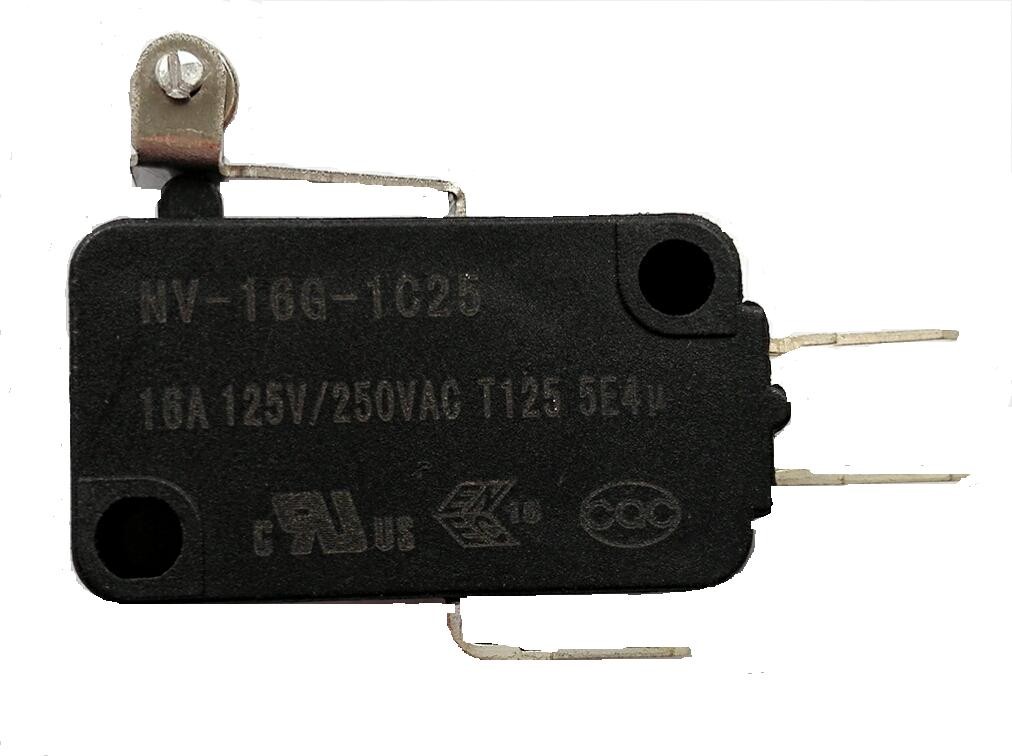

NV-16G1-1C25 16A micro switch
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
- https://clion.en.alibaba.com/product/60636124086-804191404/NNC_micro_switch_NV_16G_1C25_Short_Hinge_Roller_Lever_16A_125V_250V_UL_ENEC_approval_hot_selling_products.html?spm=a2700.8304367.0.0.pPJ1Qn
- Model: NV-16 NV-21
- Rated voltage:
- NV-16, 250V AC, 8/30/125/250V DC
- NV-21, 250V AC, 8/30/125/250V DC
- Resistive load: 16, 16, 10, 0.6, 0.3, 21, 21, 14, 0.6 and 0.3A
- Light load: 2, 4, 4, 0.1, 0.05, 3, 5, 5, 0.01 and 0.05A
- Inductive load: 10, 10, 10, 0.6, 0.3, 12, 12, 12, 0.6 and 0.3A
- Motor load: 4, 6, 4, 0.1, 0.05, 6, 7, 5, 0.1 and 0.05A
- Contact material: silver alloy
- Operating speed: 0.1 to 1m/seconds
- Contact resistance: 30mΩ maximum (initial value)
- Insulation resistance: 100mΩ minimum (at 500V DC)
- Dielectric strength:
- 1000V, 50/60Hz 1 minute between terminals of the same polarity
- 1500V, 50/60Hz 1 minute between each terminal and no-current-carrying metal parts
- 1500V, 50/60Hz 1 minute between current-carrying metal parts and ground
- Protection grade: PTI IEC IP40/175
