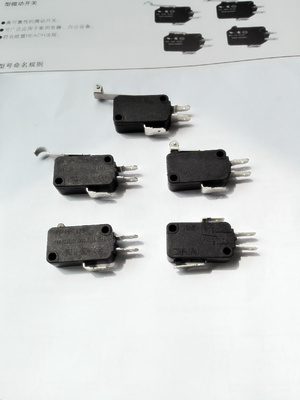

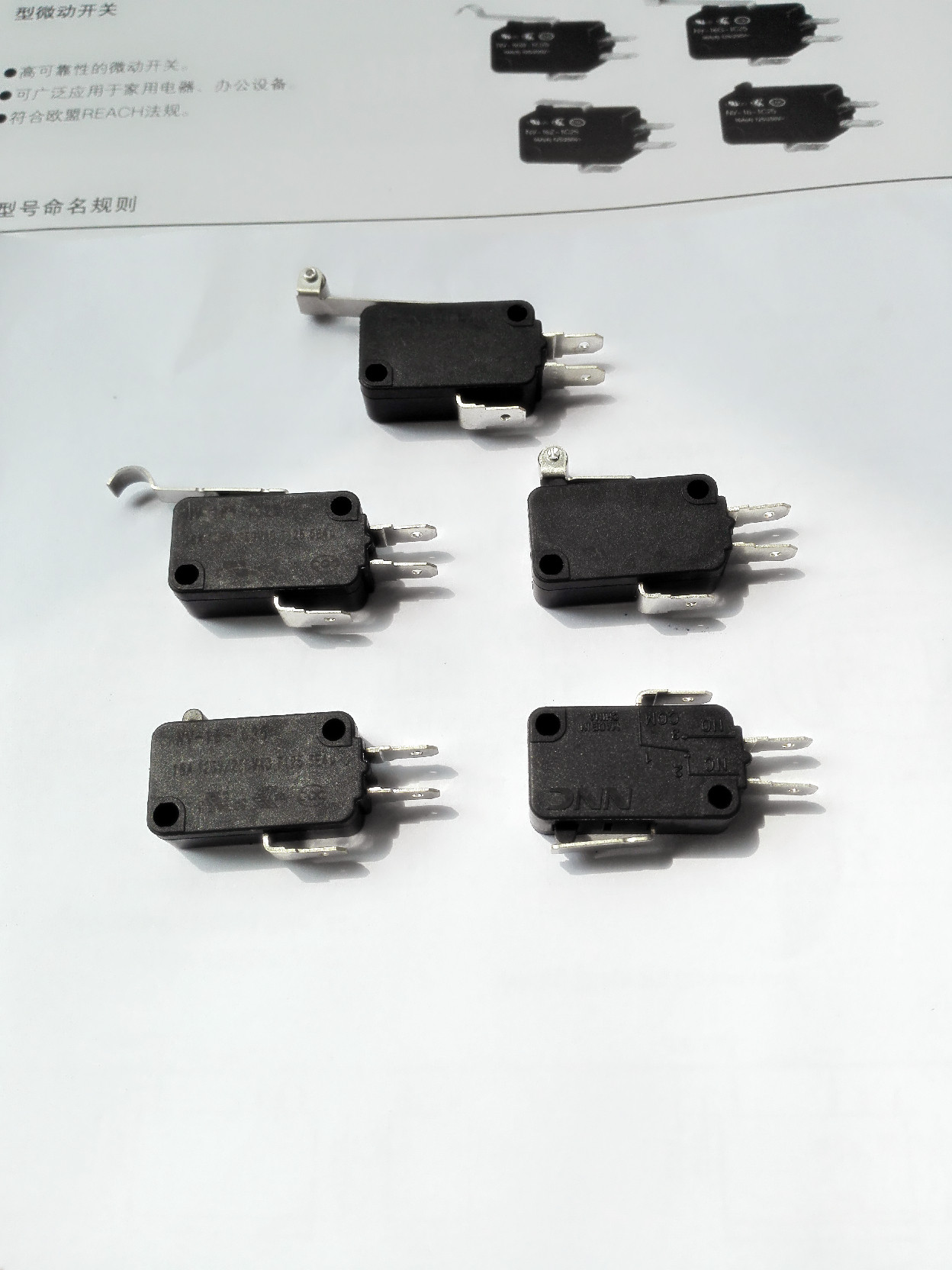

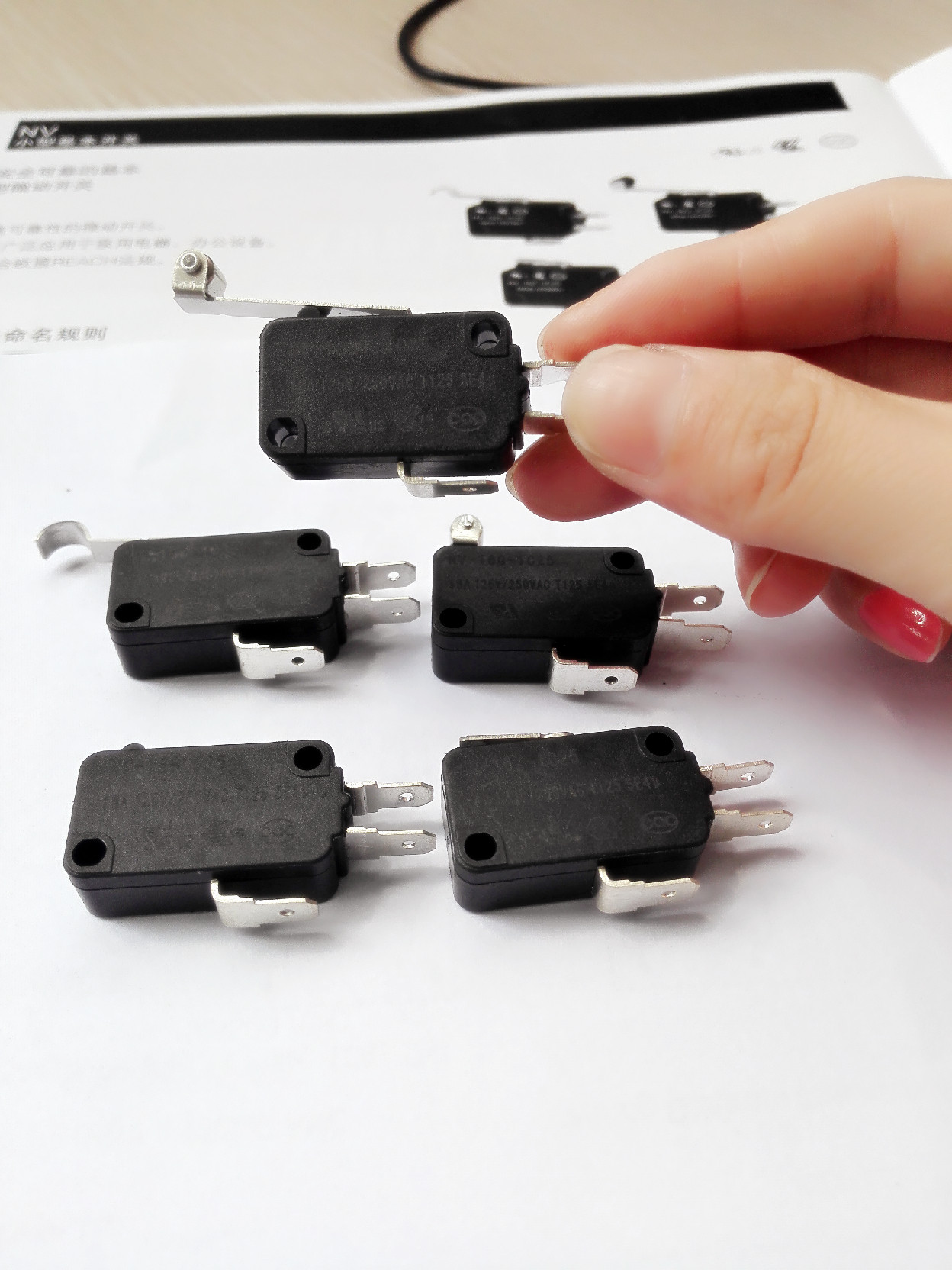

NV Series microswitch

1000
MOQ
Get Latest Price
Price
NV Series microswitch
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: CE, CQC,UL

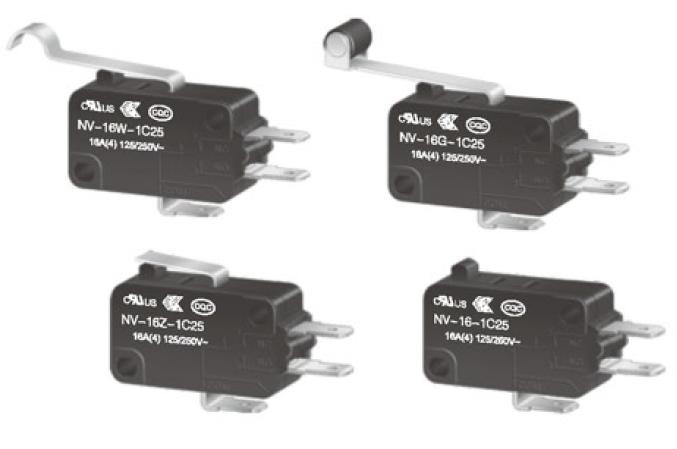

Model Number: NV-16G-1C25
Payment & Shipping Terms
Packaging Details: Export packing
Delivery Time: 15 days
Payment Terms: TT
Product Description
  • Model: NV-16 NV-21
  • Rated voltage:
    • NV-16, 250V AC, 8/30/125/250V DC
    • NV-21, 250V AC, 8/30/125/250V DC
  • Resistive load: 16, 16, 10, 0.6, 0.3, 21, 21, 14, 0.6 and 0.3A
  • Light load: 2, 4, 4, 0.1, 0.05, 3, 5, 5, 0.01 and 0.05A
  • Inductive load: 10, 10, 10, 0.6, 0.3, 12, 12, 12, 0.6 and 0.3A
  • Motor load: 4, 6, 4, 0.1, 0.05, 6, 7, 5, 0.1 and 0.05A
  • Contact material: silver alloy
  • Operating speed: 0.1 to 1m/seconds
  • Contact resistance: 30mΩ maximum (initial value)
  • Insulation resistance: 100mΩ minimum (at 500V DC)
  • Dielectric strength:
    • 1000V, 50/60Hz 1 minute between terminals of the same polarity
    • 1500V, 50/60Hz 1 minute between each terminal and no-current-carrying metal parts
    • 1500V, 50/60Hz 1 minute between current-carrying metal parts and ground
  • Protection grade: PTI IEC IP40/175
