Microswitch LXW-AZ

China Microswitch LXW-AZ supplier

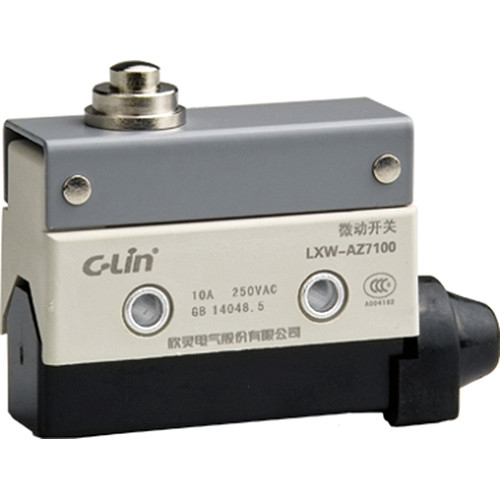

Large Image :  Microswitch LXW-AZ

Product Details:

Place of Origin: China
Brand Name: Clin
Certification: CE
Model Number: LXW-AZ

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 30 days
Payment Terms: TT
Supply Ability: 50,000 pieces per month
Contact Now
Detailed Product Description

Operating speed:0.5mm~0.5m/s
Operating frequency:Mechanical: 120 operations/minute
                    Electrical: 20 operations/minute
Contact resistance:50mΩ max.(Initial value)
Insulation resistance:100mΩ min.(at DC500V)
Conventional thermal current:10A
Electrical specification:380V, 220V/1A  DC220V/0.3A
Dielectric strength:1890V, 50/60Hz 1min between terminals of the same polarity
             2500V, 50/60Hz 1min between each terminal and non-current-carrying metal parts
             2500V, 50/60Hz 1min between current-carrying metal parts and ground
Vibration resistance:Malfunction: 10Hz~55Hz, 1.5mm double amplitude
Shock resistance:Destruction: 1000m/S²     Malfunction: 300m/S²
Ambient temperature:Ambient operation temperature: -10℃~+80℃ with no icing
Ambient humidity:Ambient operation humidity: 90% max.
Life expectancy :Mechanical: 10,000,000 operations min.
                 Electrical: 200 000 operations min.
Degree of protection:IP63
