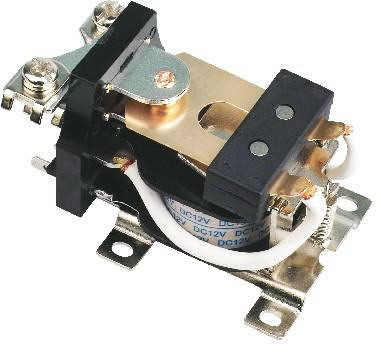

Power relay HHC71C2(JQX-40 50A)
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | power relay,electromagnetic relay,CE certification |
||
|---|---|---|---|
Product Description
Part NO. | HHC71C2(JQX-40 50A) | |||
Dimension | 60*45*46 | |||
Contact Feature | Form | 1A,1B,1C | ||
Rated load | 50A | |||
Max switching voltage | 250VAC/28VDC | |||
Contact resistance | ≤100mΩ | |||
Material | Silver Alloy | |||
Electrical life | ≥1*105 | |||
Mechanical life | ≥1*107 | |||
Operate voltage (25℃) | DC:≤75%*Rated voltage | |||
/ | ||||
Release voltage (25℃) | DC:≥10%*Rated voltage | |||
/ | ||||
Maximum voltage (25℃) | 110%*Rated voltage | |||
Normal coil voltage | DC | 6-220V | ||
AC | / | |||
Normal coil power | DC | 2.6W | ||
AC | / | |||
Pick-up time(Rated voltage) | ≤30ms | |||
Release time(Rated voltage) | ≤20ms | |||
Dielectric strength | Between Same-pole contacts | 1500VAC/1min(leakage current 1mA) | ||
Between Opposite-pole contacts | / | |||
Between contacts and coil | 2500VAC/1min(leakage current 1mA) | |||
Insulation resistance | ≥500mΩ(500VDC) | |||
Ambient temperature | -25℃ ～55℃ | |||
Ambient humidity | 45%-75%RH | |||
Atmospheric pressure | 86-106KPa | |||
Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | |||
Vibration resistance | 10-55Hz (double amplitude: 1.0mm) | |||
Installation | SCREW | |||
Packing | Inner box | Paper box(pcs) | / | |
Foam box(pcs) | 10 | |||
Outer box | Paper box(pcs) | / | ||
Foam box(pcs) | 100 | |||
Dimension of the carton | Paper box(pcs) | / | ||
Foam box(pcs) | 402*288*370MM | |||
Weight | 1PC | Approximate 160g | ||
1CTN | G.W:17KG N.W:16KG | |||
