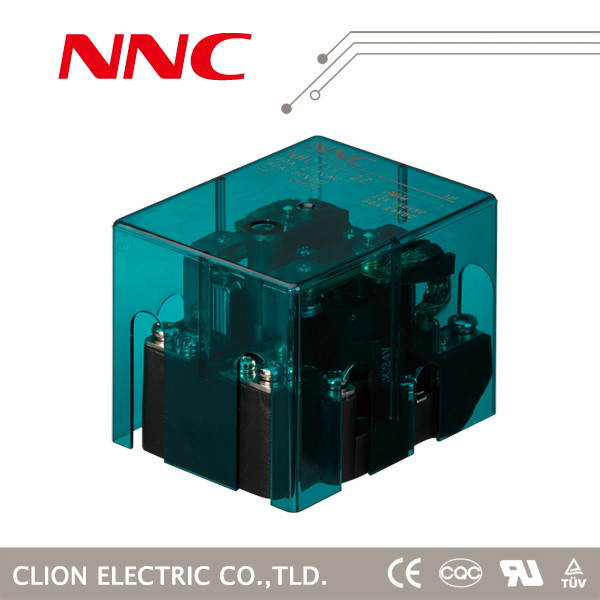

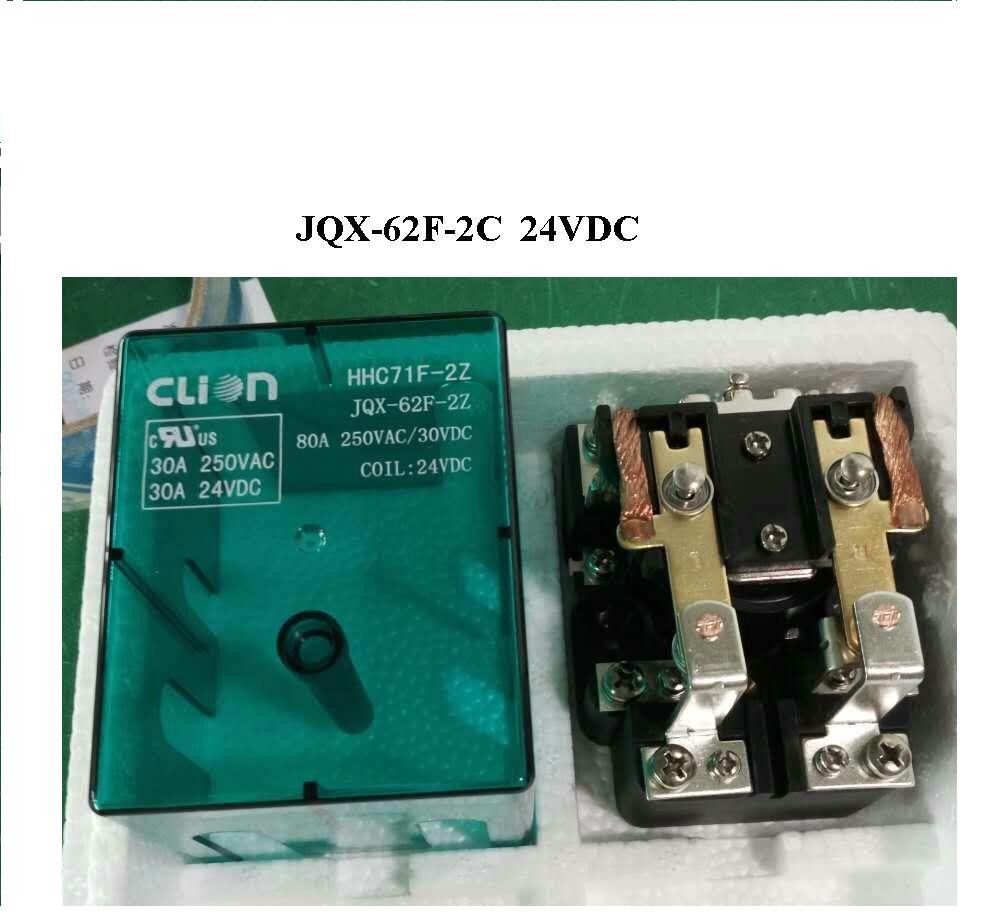

power relay HHC71F(JQX-62F-2Z)
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | electromagnetic relay,power relay |
||
|---|---|---|---|
Product Description
Product Overview
|
Part NO.
|
HHC71F(JQX-62F)
|
||||||
|
Dimension
|
67*67*60.5
|
85*68*65
|
64*59*62
|
86*68*65.5
|
|||
|
Contact Feature
|
Form
|
1A,1B,1C
|
2A,2B,2C
|
1A,1B,1C
|
2A,2B,2C
|
||
|
Rated load
|
100A
|
80A
|
100A
|
80A
|
|||
|
Max switching voltage
|
250VAC/30VDC
|
||||||
|
Contact resistance
|
≤100mΩ
|
||||||
|
Material
|
Silver Alloy
|
||||||
|
Electrical life
|
≥1*105
|
||||||
|
Mechanical life
|
≥1*107
|
||||||
|
Operate voltage (25℃)
|
DC:≤75%*Rated voltage
|
||||||
|
AC:≤80%*Rated voltage
|
|||||||
|
Release voltage (25℃)
|
DC:≥10%*Rated voltage
|
||||||
|
AC:≥30%*Rated voltage
|
|||||||
|
Maximum voltage (25℃)
|
110%*Rated voltage
|
||||||
|
Normal coil voltage
|
DC
|
6-220V
|
|||||
|
AC
|
6-380V
|
||||||
|
Normal coil power
|
DC
|
2.0W
|
|||||
|
AC
|
10VA
|
17.5VA
|
|||||
|
Pick-up time(Rated voltage)
|
≤25ms
|
≤25ms
|
|||||
|
Release time(Rated voltage)
|
≤15ms
|
≤15ms
|
|||||
|
Dielectric strength
|
Between Same-pole contacts
|
1500VAC/1min(leakage current 1mA)
|
|||||
|
Between Opposite-pole contacts
|
1500VAC/1min(leakage current 1mA)
|
||||||
|
Between contacts and coil
|
2500VAC/1min(leakage current 1mA)
|
||||||
|
Insulation resistance
|
≥500mΩ(500VDC)
|
||||||
|
Ambient temperature
|
-25℃ ～55℃
|
||||||
|
Ambient humidity
|
45%-75%RH
|
||||||
|
Atmospheric pressure
|
86-106KPa
|
||||||
|
Shock resistance
|
10G (sinusoidal half-wave pulse: 11ms)
|
||||||
|
Vibration resistance
|
10-55Hz (double amplitude: 1.0mm)
|
||||||
|
Installation
|
SCREW
|
||||||
|
Packing
|
Inner box
|
Paper box(pcs)
|
1
|
1
|
1
|
1
|
|
|
Foam box(pcs)
|
/
|
/
|
/
|
/
|
|||
|
Outer box
|
Paper box(pcs)
|
80
|
60
|
80
|
60
|
||
|
Foam box(pcs)
|
/
|
/
|
/
|
/
|
|||
|
Dimension of the carton
|
Paper box(pcs)
|
370*275*330MM
|
370*275*330MM
|
||||
|
Foam box(pcs)
|
/
|
/
|
|||||
|
Weight
|
1PC
|
Approximate 210g
|
Approximate 330g
|
Approximate 210g
|
Approximate 330g
|
||
|
1CTN
|
G.W:17KG N.W:16KG
|
G.W:20KG N.W:19KG
|
G.W:17KG N.W:16KG
|
G.W:20KG N.W:19KG
|
|||
