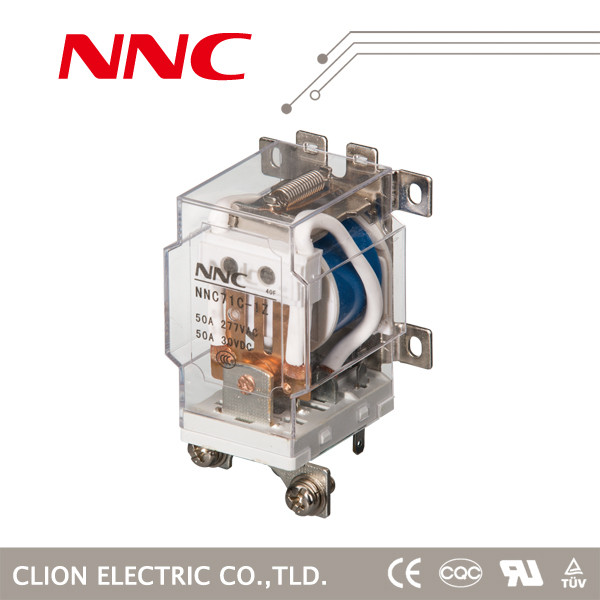

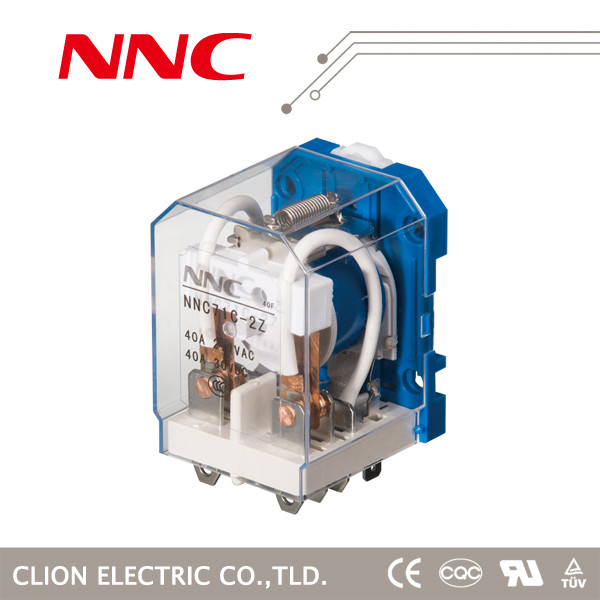

NNC71C JQX-40F Electromagnetic Relay Durable and Long-Lasting Performance
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSize | Miniature |
---|
NNC71C Series Power Relay
Part NO.
|
NNC71C(JQX-40F)
|
|||
Dimension
|
60*46*46
|
68*47.5*60
|
||
Contact Feature
|
Form
|
1A,1B,1C
|
2A,2B,2C
|
|
Rated load
|
50A/250VAC 28VDC
|
40A/250VAC 28VDC
|
||
Contact resistance
|
≤100mΩ
|
|||
Material
|
Silver Alloy
|
|||
Electrical life
|
≥1*105
|
|||
Mechanical life
|
≥1*107
|
|||
Operate voltage (25℃)
|
DC:≤75%*Rated voltage
|
|||
AC:≤80%*Rated voltage
|
||||
Release voltage (25℃)
|
DC:≥10%*Rated voltage
|
|||
AC:≥30%*Rated voltage
|
||||
Maximum voltage (25℃)
|
110%*Rated voltage
|
|||
Normal coil voltage
|
DC
|
6-220V
|
||
AC
|
6-380V
|
|||
Normal coil power
|
DC
|
2.0W
|
||
AC
|
8.6VA
|
|||
Pick-up time(Rated voltage)
|
≤25ms
|
|||
Release time(Rated voltage)
|
≤15ms
|
|||
Dielectric strength
|
Between Same-pole contacts
|
1500VAC/1min(leakage current 1mA)
|
||
Between Opposite-pole contacts
|
1500VAC/1min(leakage current 1mA)
|
|||
Between contacts and coil
|
2500VAC/1min(leakage current 1mA)
|
|||
Insulation resistance
|
≥500mΩ(500VDC)
|
|||
Ambient temperature
|
-25℃ ~55℃
|
|||
Ambient humidity
|
45%-75%RH
|
|||
Atmospheric pressure
|
86-106KPa
|
|||
Shock resistance
|
10G (sinusoidal half-wave pulse: 11ms)
|
|||
Vibration resistance
|
10-55Hz (double amplitude: 1.0mm)
|
|||
Installation
|
SCREW
|
|||
Packing
|
Inner box
|
Paper box(pcs)
|
/
|
|
Foam box(pcs)
|
10
|
|||
Outer box
|
Paper box(pcs)
|
/
|
||
Foam box(pcs)
|
100
|
|||
Dimension of the carton
|
Paper box(pcs)
|
/
|
||
Foam box(pcs)
|
402*288*370MM
|
|||
Weight
|
1PC
|
Approximate 160g
|
||
1CTN
|
G.W:17KG N.W:16KG
|
|||
