Name: power relay HHC71G(JQX-60F)
Brand: CLION ELECTRIC CO.,LTD
SKU: HHC71G(JQX-60F)
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Highlight:

power relay

electromagnetic relay

Basic Infomation

Place of Origin: China

Brand Name: clion

Certification: CE, CQC

Model Number: HHC71G(JQX-60F)

Payment & Shipping Terms

Gallery

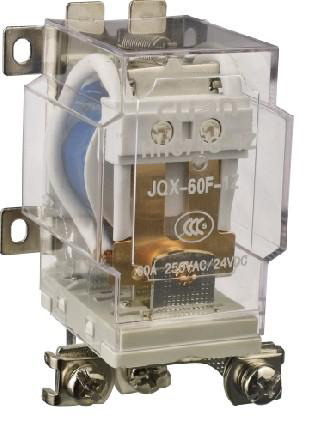

power relay HHC71G(JQX-60F)

Product Description

Part NO.			HHC71G(JQX-60F)
Dimension			*60.24546*
Contact Feature	Form		1A,1B,1C
	Rated load		60A
	Max switching voltage		250VAC/30VDC
	Contact resistance		≤100mΩ
	Material		Silver Alloy
	Electrical life		*≥110⁵**
	Mechanical life		*≥110⁷**
Operate voltage (25℃)			*DC:≤75%Rated voltage**
			*AC:≤80%Rated voltage**
Release voltage (25℃)			*DC:≥10%Rated voltage**
			*AC:≥30%Rated voltage**
Maximum voltage (25℃)			*110%Rated voltage**
Normal coil voltage		DC	6-220V
		AC	6-380V
Normal coil power		DC	2.0W
		AC	8.6VA
Pick-up time(Rated voltage)			≤25ms
Release time(Rated voltage)			≤15ms
Dielectric strength	Between Same-pole contacts		1500VAC/1min(leakage current 1mA)
	Between Opposite-pole contacts		1500VAC/1min(leakage current 1mA)
	Between contacts and coil		2500VAC/1min(leakage current 1mA)
Insulation resistance			≥500mΩ(500VDC)
Ambient temperature			-25℃ ～55℃
Ambient humidity			45%-75%RH
Atmospheric pressure			86-106KPa
Shock resistance			10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance			10-55Hz (double amplitude: 1.0mm)
Installation			SCREW
Packing	Inner box		Paper box(pcs)	/
			Foam box(pcs)	10
	Outer box		Paper box(pcs)	/
			Foam box(pcs)	100
	Dimension of the carton		Paper box(pcs)	/
			Foam box(pcs)	*402288370MM*
	Weight		1PC	Approximate 160g
			1CTN	G.W:17KG N.W:16KG
