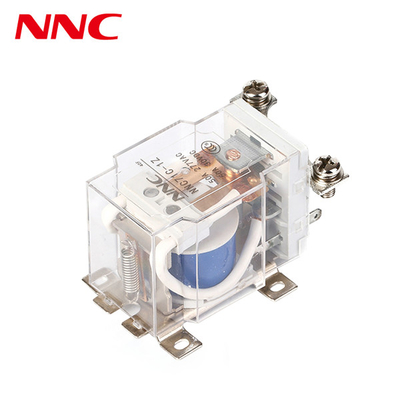

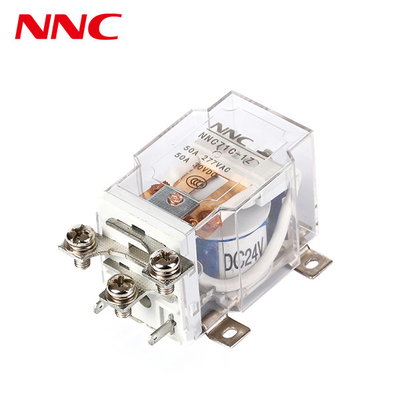

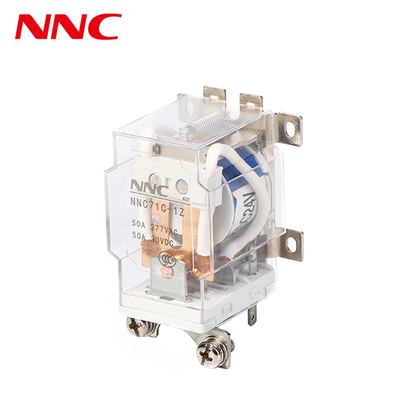

High-Performance Industrial Electromagnetic Relay NNC71C(JQX-40F-1Z) for Precise Power Control

200pcs
MOQ
Get Latest Price
Price
High-Performance Industrial Electromagnetic Relay NNC71C(JQX-40F-1Z) for Precise Power Control
Features Gallery Product Description Request A Quote
Features
Specifications
Size: Miniature
Load Current: 40A
Coil Voltage: DC6-220V, AC6-380V (Customize Allowed)
Contact Material: Ag Alloy
Ambient Temperature: -25℃ ～55℃
Mechanical Life: 1*10^7
Electrical Life: 1*10^5
Highlight:

power relay

,

electromagnetic relay

,

CE certification
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: CE,CCC
Model Number: NNC71C(JQX-40F-1Z)
Payment & Shipping Terms
Packaging Details: Export packing
Delivery Time: 15-30 days
Payment Terms: TT/LC
Supply Ability: 50,000 pieces per month
Minimum Order Quantity: 200 pieces
Port: SHANGHAI&NINGBO
Protect Feature: Sealed
Contact Load: High Power
Usage: General Purpose
Theory: Electromagnetic Relay
Category: Relays
Product Description

NNC71C Series Power Relay

https://clion.en.alibaba.com/product/60632118414-804346879/NNC_Power_Relay_HHC71C_40F_1Z_50A_UL_hot_selling_products_24v_relay.html?spm=a2700.8304367.0.0.C4MLvb

Part NO.
NNC71C(JQX-40F)
Dimension
60*46*46
68*47.5*60
Contact Feature
Form
1A,1B,1C
2A,2B,2C
Rated load
50A/250VAC 28VDC
40A/250VAC 28VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (25℃)
DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (25℃)
DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (25℃)
110%*Rated voltage
Normal coil voltage
DC
6-220V
AC
6-380V
Normal coil power
DC
2.0W
AC
8.6VA
Pick-up time(Rated voltage)
≤25ms
Release time(Rated voltage)
≤15ms
Dielectric strength
Between Same-pole contacts
1500VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
1500VAC/1min(leakage current 1mA)
Between contacts and coil
2500VAC/1min(leakage current 1mA)
Insulation resistance
≥500mΩ(500VDC)
Ambient temperature
-25℃ ～55℃
Ambient humidity
45%-75%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.0mm)
Installation
SCREW
Packing
Inner box
Paper box(pcs)
/
Foam box(pcs)
10
Outer box
Paper box(pcs)
/
Foam box(pcs)
100
Dimension of the carton
Paper box(pcs)
/
Foam box(pcs)
402*288*370MM
Weight
1PC
Approximate 160g
1CTN
G.W:17KG N.W:16KG




Certificate

Certificate

High-Performance Industrial Electromagnetic Relay NNC71C(JQX-40F-1Z) for Precise Power Control 0

Shipment & Packaging

Shipment & Packaging



High-Performance Industrial Electromagnetic Relay NNC71C(JQX-40F-1Z) for Precise Power Control 1

FAQ

FAQ



Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.



Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.



Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)



Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.



Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.



Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.



Q7: What is your warranty time of the products?
A7: 12-24 months
