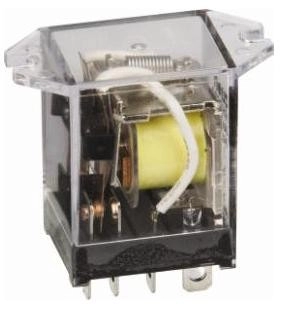

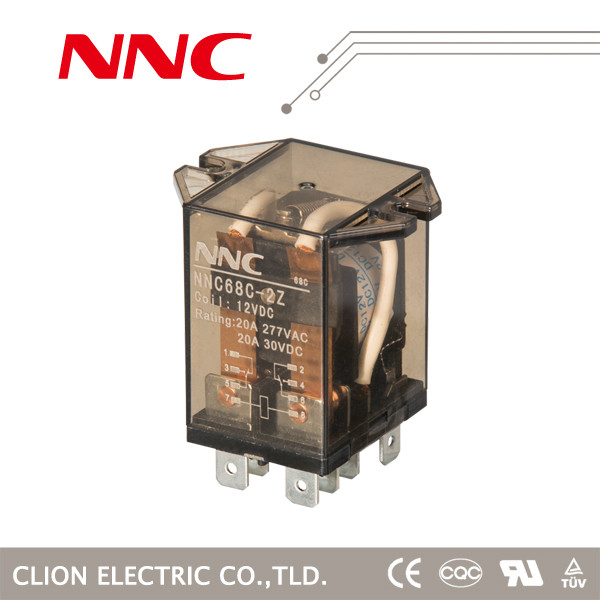

HHC68C

Place of Origin china
Brand Name clion
Certification CE,CCC
Model Number HHC68C
Minimum Order Quantity 1000
Price Get Latest Price
Packaging Details Export packing
Delivery Time 30 days
Payment Terms TT
Supply Ability 50,000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Theory Electromagnetic Relay Usage General Purpose
Size Miniature Protect Feature Epoxy
Contact Load High Power
Leave a Message
Product Description

https://clion.en.alibaba.com/product/60603310919-804350834/NNC_POWER_RELAY_HHC68C.html?spm=a2700.8304367.0.0.Pnv2RL

Part NO.
HHC68C
Dimension
46*35*43.5
Contact Feature
Form


2A,2B,2C

Rated load
20A/240VAC 28VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (25℃)
DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (25℃)
DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (25℃)
110%*Rated voltage
Normal coil voltage
DC
6-220V
AC
6-380V
Normal coil power
DC
1.8W
AC
2.7VA
Pick-up time(Rated voltage)
≤30ms
Release time(Rated voltage)
≤20ms
Dielectric strength
Between Same-pole contacts
1000VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
1500VAC/1min(leakage current 1mA)
Between contacts and coil
1500VAC/1min(leakage current 1mA)
Insulation resistance
≥500mΩ(500VDC)
Ambient temperature
-25℃ ~55℃
Ambient humidity
45%-75%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.0mm)
Installation
SOCKET
Packing
Inner box
Paper box(pcs)
10
Foam box(pcs)
20
Outer box
Paper box(pcs)
200
Foam box(pcs)
200
Dimension of the carton
Paper box(pcs)
395*198*318MM
Foam box(pcs)
375*240*480MM
Weight
1PC
Approximate 75g
1CTN
G.W:16KG N.W:15KG
