NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy

600pcs
MOQ
get latest price
Price
NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: Power Relay
Contact Material: Ag Alloy
Ambient Temperation: -25℃~55℃
Endurance: Mechanical Life:10,000,000 Times Electrical Life:100,000 Times
Ambient Humidity: 45%-75%RH
Dielectric Strength: Between Opposite-pole Contacts:1500VAC Fo1min(leakage Current 1mA)
Weight: Approx. 160g/PCS
Rated Contact Load: 40A 50A
Installation: Screw Or DIN RAIL
Coil Power: DC:2.0W AC:8.6VA
Pick-up Time: ≤25ms
Release Time: ≤15ms
Insulation Resistance: ≥200mΩ（at 500VDC)
Dimension: 60mm×46mm×46mm(normal Type)
Contact Resistance: ≤100mΩ
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: CE/TUV/UL/CCC
Model Number: NNC71C
Payment & Shipping Terms
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 2k pcs 7 days
Product Description

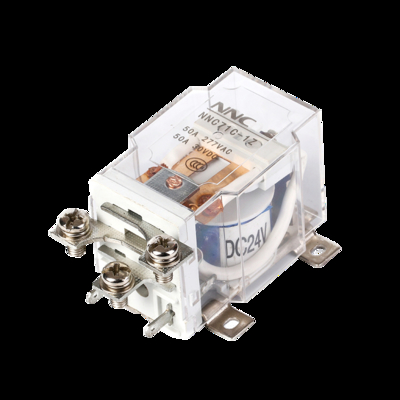

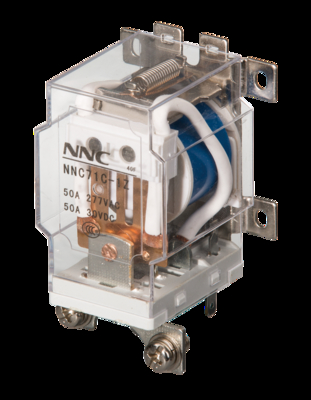

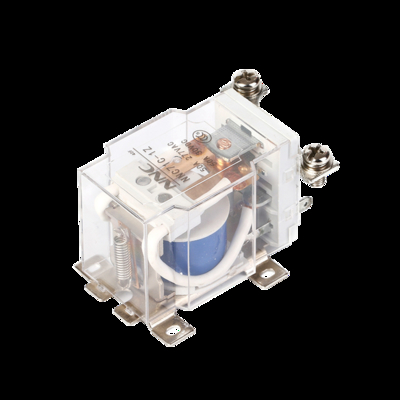

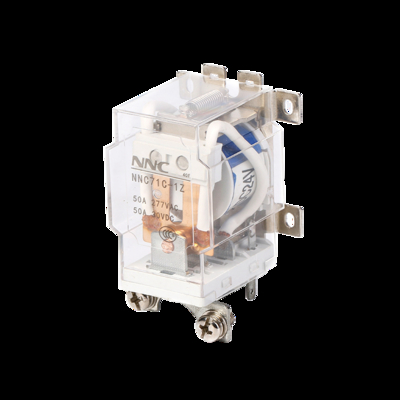

Power Relay NNC71C



NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy 0NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy 1NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy 2

NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy 3NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy 4



NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy 5NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy 6NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy 7
