Home /Products/Power Relay/NNC 30VDC 120A JQX-62FS Power Relay NNC71FS High DC Voltage Relay for Car Charging pile Solar Energy

NNC 30VDC 120A JQX-62FS Power Relay NNC71FS High DC Voltage Relay for Car Charging pile Solar Energy

600pcs
MOQ
get latest price
Price
NNC 30VDC 120A JQX-62FS Power Relay NNC71FS High DC Voltage Relay for Car Charging pile Solar Energy
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: Power Relay
Contact Material: Ag Alloy
Ambient Temperation: -25℃~55℃
Endurance: Mechanical Life:10,000,000 Times Electrical Life:100,000 Times
Ambient Humidity: 45%-75%RH
Dielectric Strength: Between Opposite-pole Contacts:1500VAC Fo1min(leakage Current 1mA)
Weight: Approx. 240g/PCS
Rated Contact Load: 100A 80A
Installation: Screw
Coil Power: DC:2.0W AC:10VAC
Pick-up Time: ≤25ms
Release Time: ≤25ms
Insulation Resistance: ≥200mΩ（at 500VDC)
Dimension: 67mm×67mm×60.5mm
Contact Resistance: ≤100mΩ
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: CE/TUV/UL/CCC
Model Number: NNC71FS
Payment & Shipping Terms
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 2k pcs 7 days
Product Description

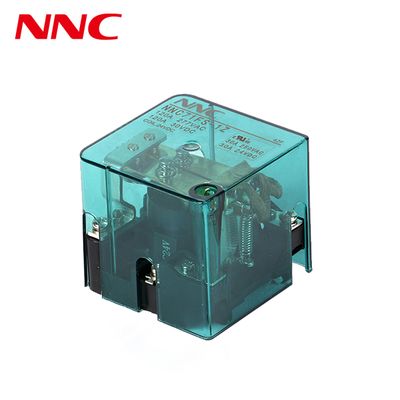

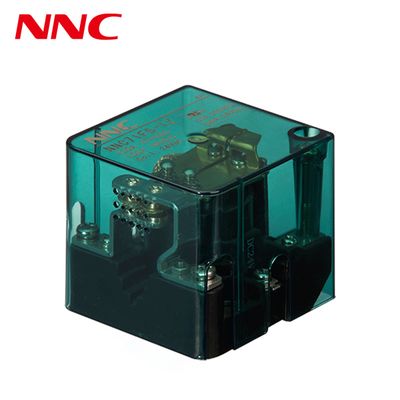

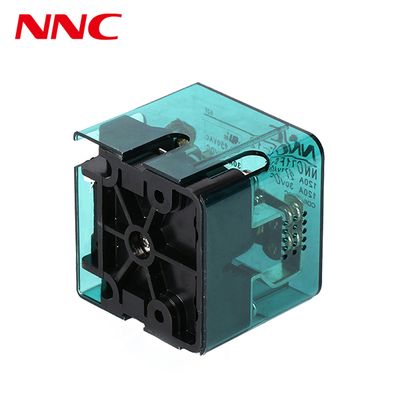

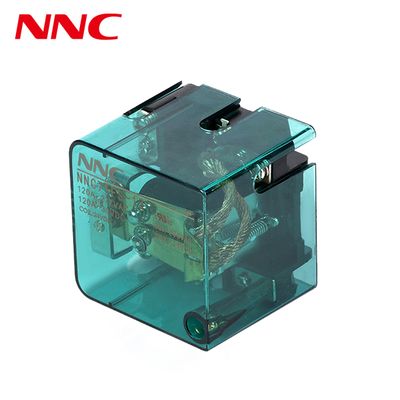

Power Relay NNC71FS



NNC 30VDC 120A JQX-62FS Power Relay NNC71FS High DC Voltage Relay for Car Charging pile Solar Energy 0NNC 30VDC 120A JQX-62FS Power Relay NNC71FS High DC Voltage Relay for Car Charging pile Solar Energy 1NNC 30VDC 120A JQX-62FS Power Relay NNC71FS High DC Voltage Relay for Car Charging pile Solar Energy 2





New Energy Solar Energy Relay NN82A for Charging Pile Electric VehicleNew Energy Solar Energy Relay NN82A for Charging Pile Electric VehicleNew Energy Solar Energy Relay NN82A for Charging Pile Electric Vehicle
