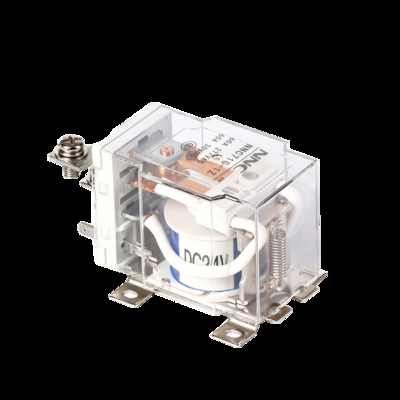

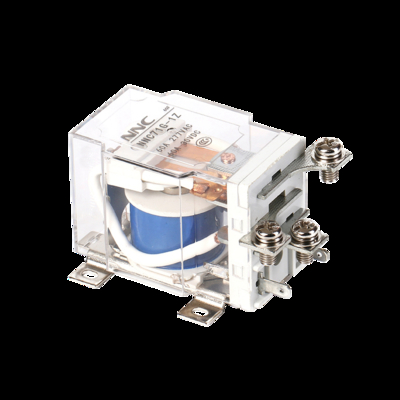

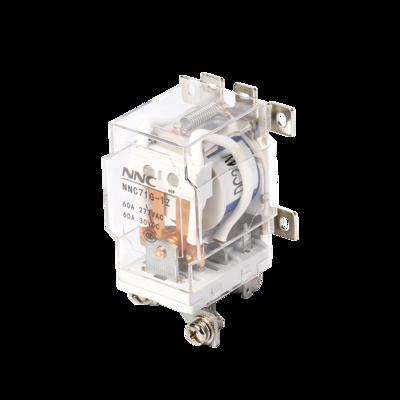

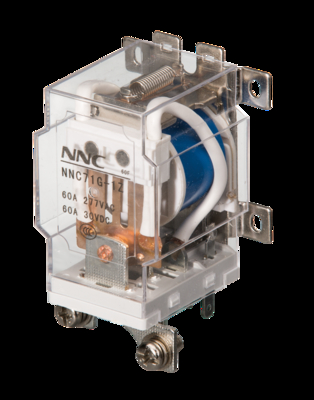

NNC 28VDC 60A JQX-60F Power Relay NNC71G High DC Voltage Relay for Car Charging pile Solar Energy
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Theory | Power Relay | Contact Material | Ag Alloy |
|---|---|---|---|
| Ambient Temperation | -25℃~55℃ | Endurance | Mechanical Life:10,000,000 Times Electrical Life:100,000 Times |
| Ambient Humidity | 45%-75%RH | Dielectric Strength | Between Contacts And Coil:2500VAC Fo1min(leakage Current 1mA) |
| Weight | Approx. 160g/PCS | Rated Contact Load | 60A |
| Installation | Screw | Coil Power | DC:2.0W AC8.6VAC |
| Pick-up Time | ≤25ms | Release Time | ≤25ms |
| Insulation Resistance | ≥200mΩ（at 500VDC) | Dimension | 60.2mm×45mm×46mm |
| Contact Resistance | ≤100mΩ |
Product Description
Power Relay NNC71G
