NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy

600pcs
MOQ
get latest price
Price
NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: Power Relay
Contact Material: Ag Alloy
Ambient Temperation: -25℃~55℃
Endurance: Mechanical Life:10,000,000 Times Electrical Life:100,000 Times
Ambient Humidity: 45%-75%RH
Dielectric Strength: Between Opposite-pole Contacts:1500VAC Fo1min(leakage Current 1mA)
Weight: Approx. 160g/PCS
Rated Contact Load: 40A 50A
Installation: Screw Or DIN RAIL
Coil Power: DC:2W AC:8.6VA
Pick-up Time: ≤25ms
Release Time: ≤15ms
Insulation Resistance: ≥200mΩ（at 500VDC)
Dimension: 60mm×46mm×46mm(normal Type)
Contact Resistance: ≤100mΩ
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: CE/TUV/UL/CCC
Model Number: NNC71C
Payment & Shipping Terms
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 2k pcs 7 days
Product Description

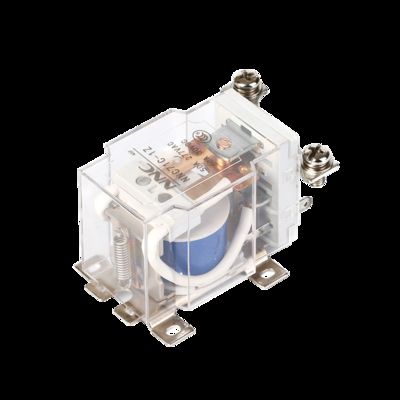

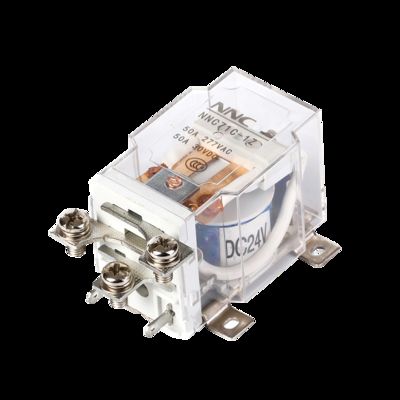

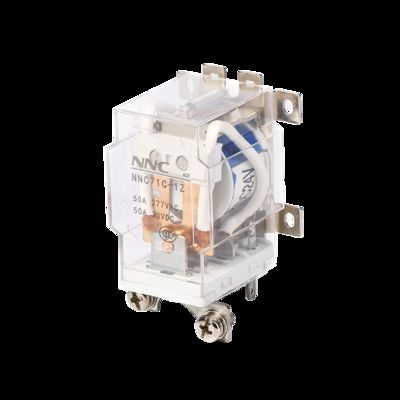

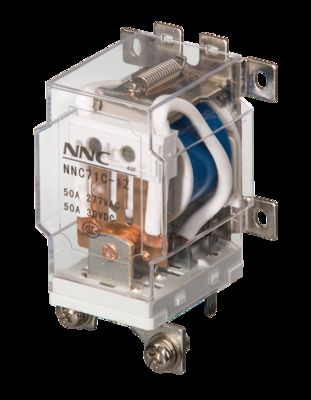

Power Relay NNC71C



NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy 0NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy 1NNC 12VDC 40A JQX-40F Power Relay NNC71C Relay General Purpose for Car Charging pile Solar Energy 2

New Energy Solar Energy Relay NN82A for Charging Pile Electric VehicleNew Energy Solar Energy Relay NN82A for Charging Pile Electric VehicleNew Energy Solar Energy Relay NN82A for Charging Pile Electric Vehicle
