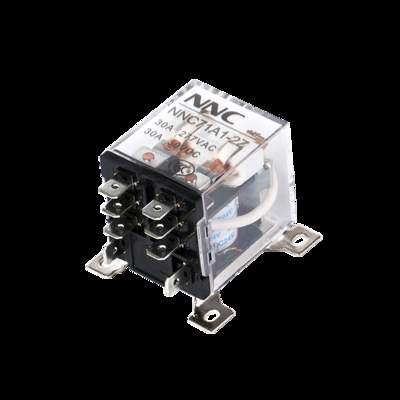

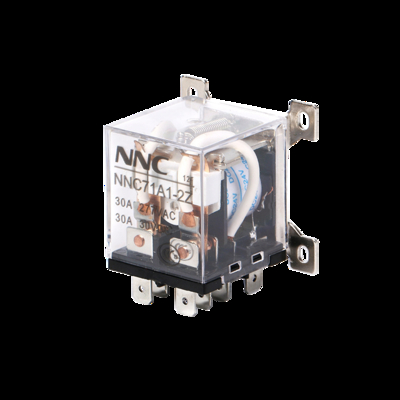

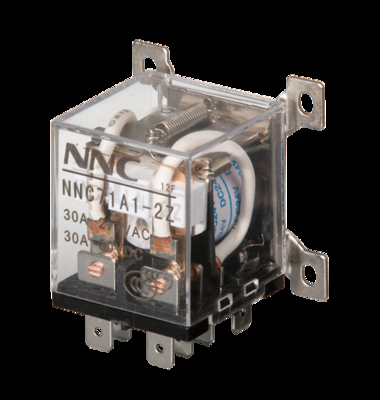

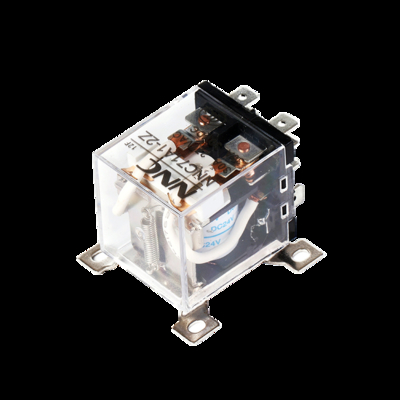

NNC 24VDC 30A JQX-12F Power Relay NNC71A1 Relay General Purpose for Car Charging pile Solar Energy
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Theory | Power Relay | Contact Material | Ag Alloy |
|---|---|---|---|
| Ambient Temperation | -25℃~55℃ | Endurance | Mechanical Life:10,000,000 Times Electrical Life:100,000 Times |
| Ambient Humidity | 45%-75%RH | Dielectric Strength | Between Opposite-pole Contacts:1500VAC Fo1min(leakage Current 1mA) |
| Weight | Approx. 70g/PCS | Rated Contact Load | 30A |
| Installation | Screw | Coil Power | DC:2W AC:4VA |
| Pick-up Time | ≤25ms | Release Time | ≤15ms |
| Insulation Resistance | ≤100mΩ | Dimension | 48mm×46mm×40mm |
Product Description
Power Relay NNC71A1
