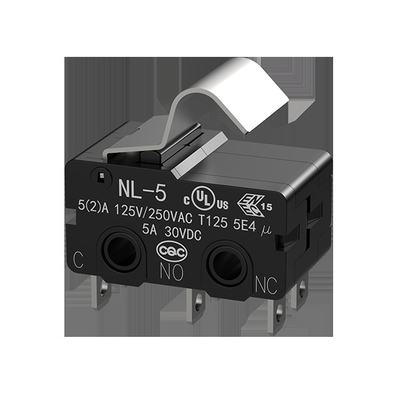

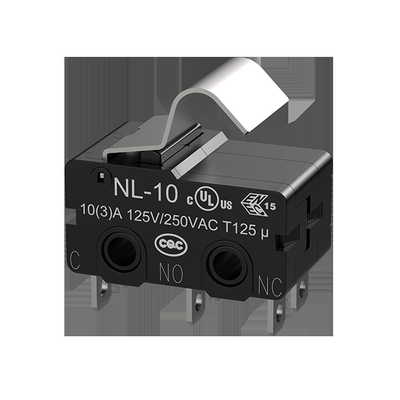

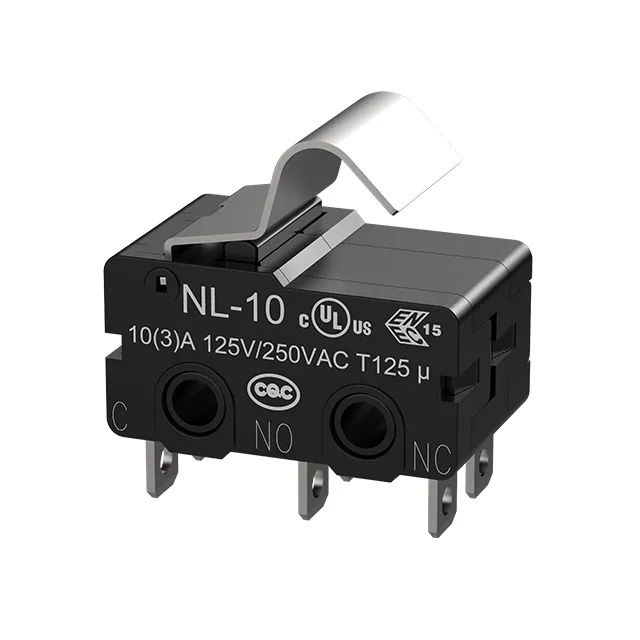

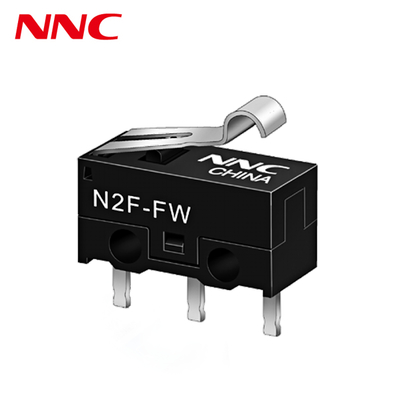

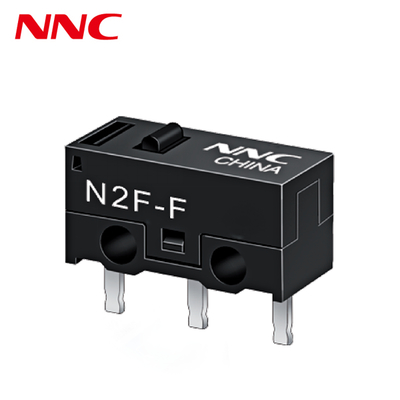

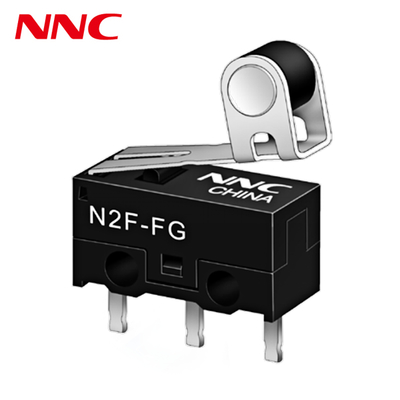

Specification
| Item Number |
NL-10W55-F2-SZ
NL-5W55-F2-SZ |
| Operating Force(OF) |
Max 2.2N |
| Releasing Force(RF) |
Min 0.4N |
| Over-travel(OT) |
Min 1.0mm |
| Movement differential(MD) |
Max 1.0mm |
| Free Position(FP) |
Max 16mm |
| Oparating position(OP) |
14.1±0.8mm |
Characteristics
Permissible operating speed : 0.5mm-1m/s
Permissible operating frequency:
Mechanical:60 operations/min
Electrical:30 operations/min
Contact resistance(initial value): 4 times max.
Insulation resistance: 10MΩ min.(at DC500V)
Dielectric strength:
Between terminals of the same polarity: AC1000V, 50/60Hz for 1min
Between each terminals and non-current carrying metal parts: AC1500V, 50-60Hz fro 1min
Between current carrying metal parts and ground: AC1500V,50/60Hz for 1min
Endurance:
Mechanical: 1,000,000 operations min.
Electrical: 50,000 operations min.
Degree of protection: IEC IP40
Degree of protection against electric shock: Class I
Proof tracking index(PTI): 175
Operating ambient
Temperature: -25°C~125°C(with no icing or condensation)
Humidity: 60% RH max.

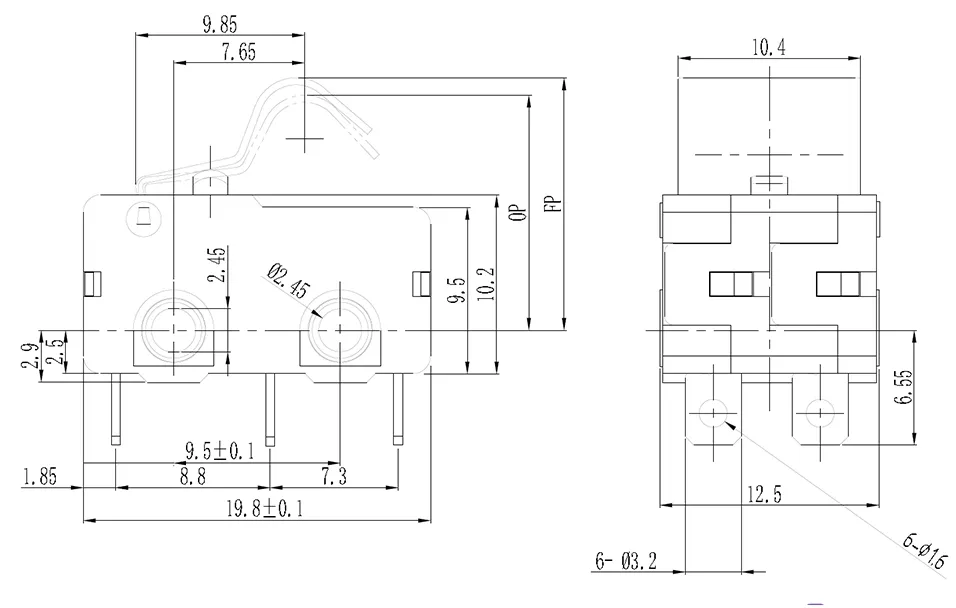

Dimension(mm)
