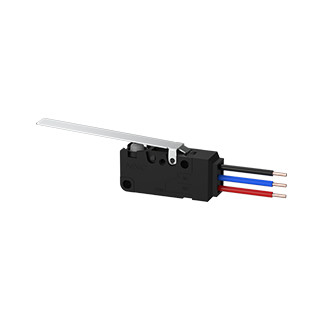

Clion waterproof micro switch NV-10Z2-1C26-W01Y with long lever for Micro oven

2000pcs
MOQ
Get Latest Price
Price
Clion waterproof micro switch NV-10Z2-1C26-W01Y with long lever for Micro oven
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: Micro Switch
Terminal: A: Solder Terminals; C: 250# Terminals 6.3*0.8mm; C2:187# Terminals 4.8*0.5mm; C3:187# Terminals 4.8*0.8mm
Brand: NNC
Degree Of Protection: IEC IP67
Protection Grade Of Electric Shock: Cliass I
Size: Miniature
Mechanical Life: 1,000,000 Operations Min.
Electrical Life: 50,000 Operations Min.
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: CE, CQC,UL
Model Number: NV-10Z2-1C26-W01Y
Payment & Shipping Terms
Packaging Details: Export packing
Delivery Time: 15 days
Payment Terms: TT
Product Description

NV-10Z2 Waterproof Micro Switch



Product Description


Clion waterproof micro switch NV-10Z2-1C26-W01Y with long lever for Micro oven 0

Clion waterproof micro switch NV-10Z2-1C26-W01Y with long lever for Micro oven 1

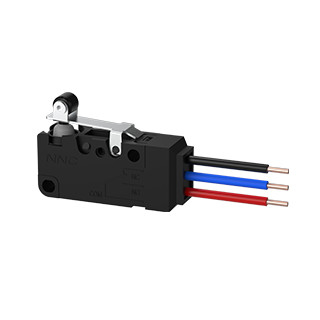

Lever Type

Clion waterproof micro switch NV-10Z2-1C26-W01Y with long lever for Micro oven 2

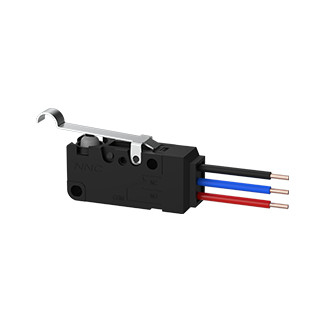

Lever Position

Clion waterproof micro switch NV-10Z2-1C26-W01Y with long lever for Micro oven 3

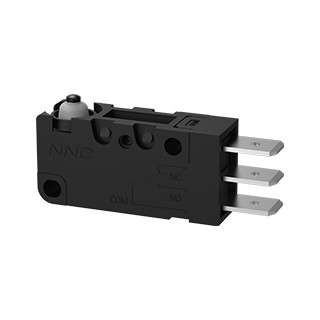

Terminal Type

Clion waterproof micro switch NV-10Z2-1C26-W01Y with long lever for Micro oven 4
Specification

Operating Force(OF) Max 80gf
Releasing Force(RF) Min 10gf
Free Position(FP) Max 21.2mm
Operating Position(OP) 15.2±2.6mm
Total Travel Position(TTP) Min 11.0mm

Characteristics
Permissible operating speed : 0.5mm-1m/s
Contact resistance(initial value): 100MΩ(without wire)
Insulation resistance: 100MΩ min.(at DC500V)
Dielectric strength:
Between terminals of the same polarity: AC1500V, 50/60Hz for 1min
Between each terminals and non-current carrying metal parts: AC1500V, 50-60Hz fro 1min
Between current carrying metal parts and ground: AC3000V,50/60Hz for 1min
Endurance:
Mechanical: 1,000,000 operations min.
Electrical: 50,000 operations min.
Degree of protection: IEC IP67
Degree of protection against electric shock: Class I
Operating ambient
Temperature: T125(with no icing or condensation)
Humidity: 60% RH max.

Dimension(mm)
Clion waterproof micro switch NV-10Z2-1C26-W01Y with long lever for Micro oven 5













Clion waterproof micro switch NV-10Z2-1C26-W01Y with long lever for Micro oven 6
