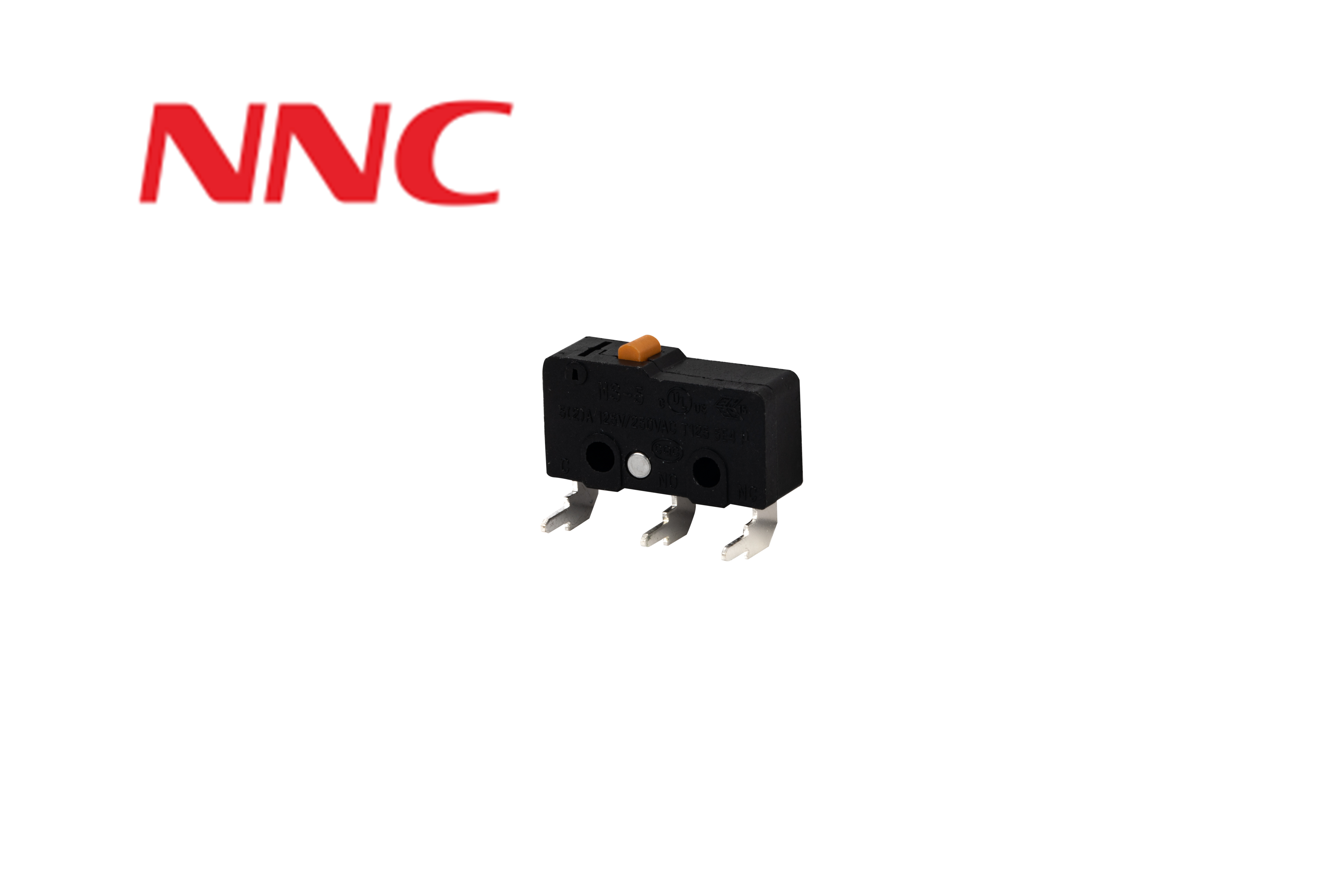

NNC Push Button Microswitch NS-5D1P with left bend Terminal Pin Plunger Microswitch
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Theory | Micro Switch | Terminal | Left Bend Terminal |
|---|---|---|---|
| Brand | NNC | Degree Of Protection | IEC IP40 |
| Protection Grade Of Electric Shock | Cliass I | Size | Miniature |
| Mechanical Life | 1,000,000 Operations Min. | Electrical Life | 50,000 Operations Min. |
Product Description
NS-5D1P Micro Switch
Product Description
Specification
| Operating Force(OF) | Max 1.47N |
| Releasing Force(RF) | Min 0.3N |
| Pre-travel(PT) | Max 0.5mm |
| Over-travel(OT) | Min 0.5mm |
| Movement differential(MD) | Max 0.1mm |
| Oparating position(OP) | 8.4±0.5mm |
Characteristics
Permissible operating speed : 0.1mm-1m/s
Permissible operating frequency:
Mechanical:60 operations/min
Electrical:30 operations/min
Electrical:30 operations/min
Contact resistance(initial value): 4 times max.
Insulation resistance: 10MΩ min.(at DC500V)
Dielectric strength:
Between terminals of the same polarity: AC1000V, 50/60Hz for 1min
Between each terminals and non-current carrying metal parts: AC1500V, 50-60Hz fro 1min
Between current carrying metal parts and ground: AC1500V,50/60Hz for 1min
Endurance:
Mechanical: 1,000,000 operations min.
Electrical: 50,000 operations min.
Degree of protection: IEC IP40
Degree of protection against electric shock: Class I
Proof tracking index(PTI): 175
Operating ambient
Temperature: -25°C~125°C(with no icing or condensation)
Humidity: 60% RH max.

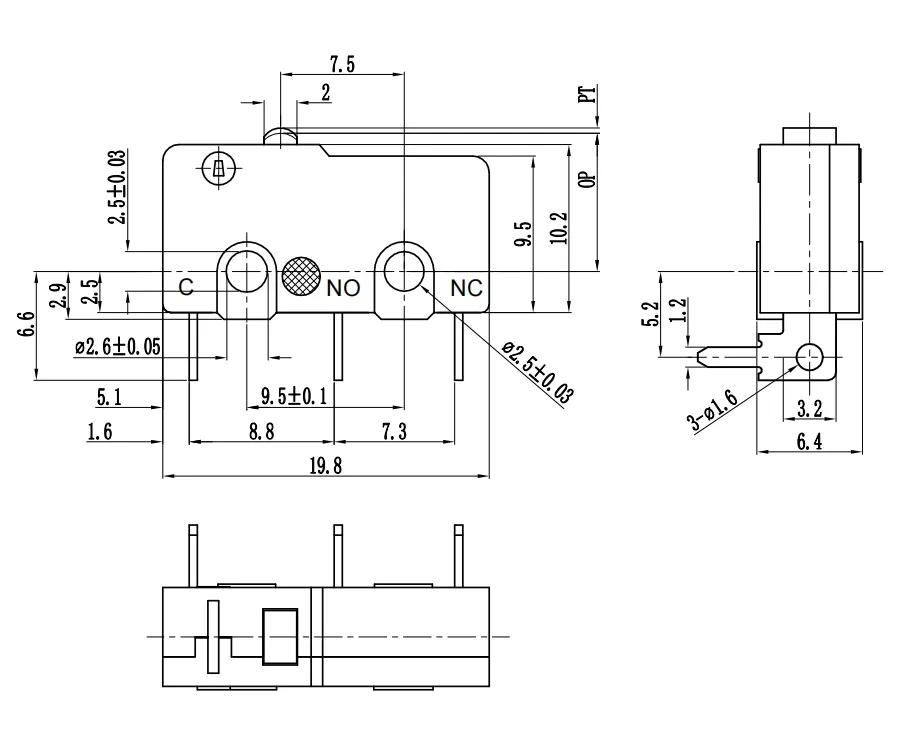

Dimension(mm)
