Clion miniature Micro Switch LXW-5 series for food machinery, automatic packing machine, and machine tool equipmet

500pcs
MOQ
get latest price
Price
Clion miniature Micro Switch LXW-5 series for food machinery, automatic packing machine, and machine tool equipmet
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Speed: 0.01mm-1m/sec
Operating Frequency: Mechanical: 240 Times/min; Electrical: 20 Times/min
Contact Resistance: ＜15mΩ(initial Value)
Insulation Resistance: ＞100MΩ（＜500VDC）
Endurance: Mechanical: 1,000,000 Operations Min.; Electrical: 300,000 Operations Min.
Dielectric Strength: Between Current Carrying Metal Parts And Ground: AC2000V,50/60Hz For 1min
Operating Ambient: Standard: -25℃~+80℃; ＜85%RH; Sealed: -15℃~+80℃; ＜95%RH
Basic Infomation
Place of Origin: China
Brand Name: Clion
Certification: CCC
Model Number: LXW-5
Payment & Shipping Terms
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 2k pcs 7 days
Product Description

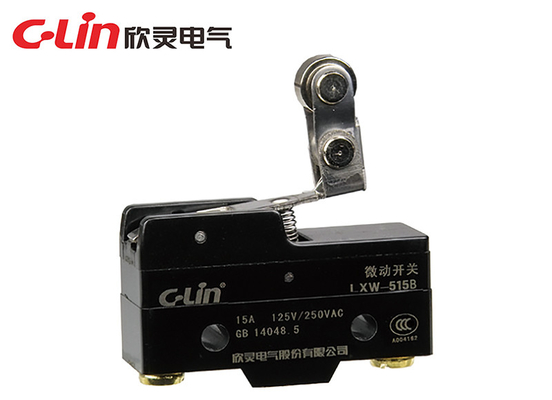

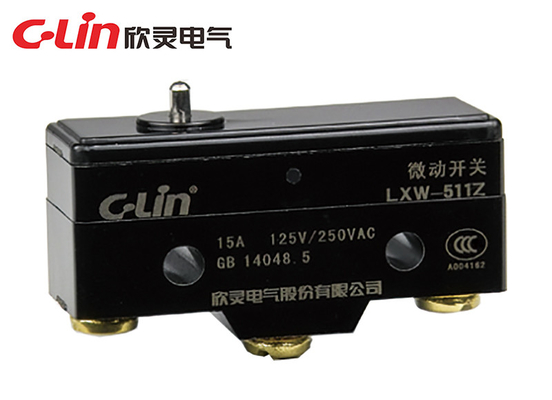

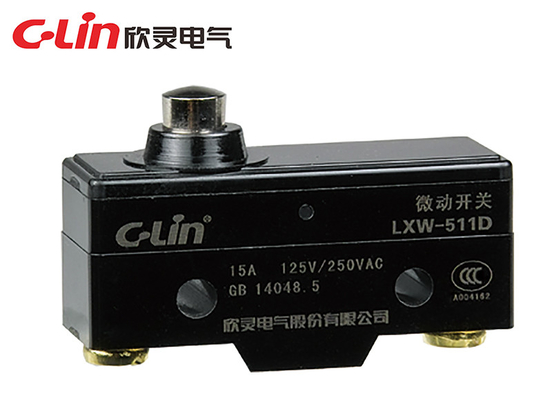

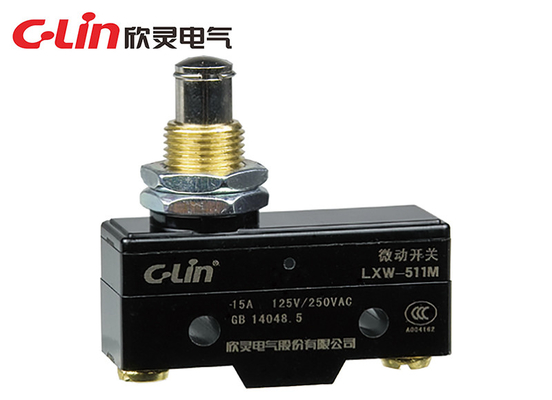

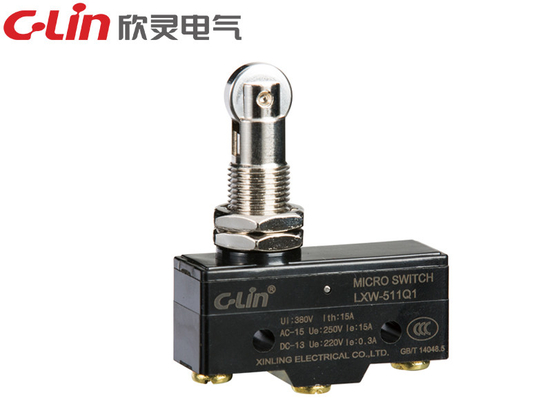

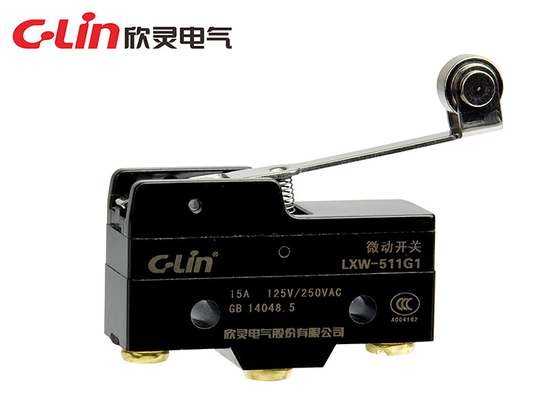

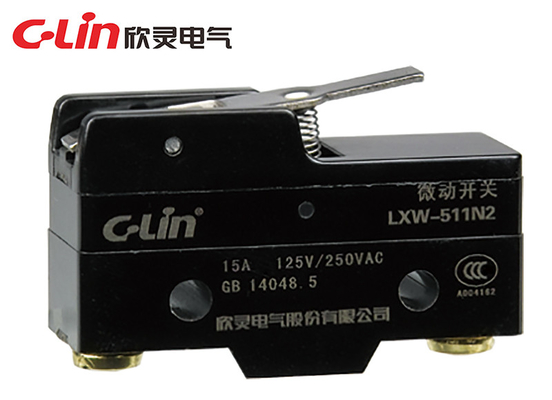

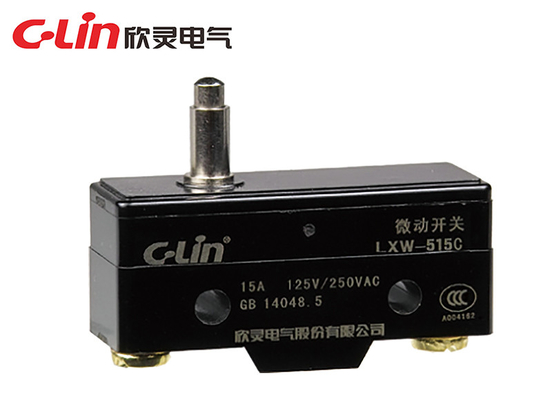

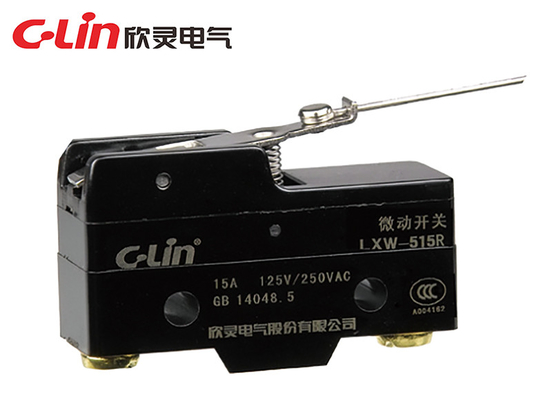

LXW-5 Series Micro Switch



Features

1. Max load current can reach 15A

2. Long mechanical endurance

3. High precious

4. Protective cover is available

5. Customized avaiable



Specifications

Operating Speed 0.01mm~1m/s
Operating Frequency

Mechanical: 240 times/min;

Electrical: 20 times/min

Contact Resistance

(initial value)
15mΩ max
Insulation Resistance
100MΩ min.(at DC500V)
Dielectric Strength
Between terminals of the same polarity: AC1000V, 50/60Hz for 1min
Between current carrying metal parts and ground: AC2000V,50/60Hz for 1min
Vibration Resistance
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock Resistance
Durability: 1,000 m/s2 max. ; Malfunction: 300 m/s2 max.
Operating Ambient
Stanard
Temperature: -25°C ~ 80°C(with no icing or condensation)
Humidity: 85%RH max.
Sealed
Temperature: -15°C ~ 80°C(with no icing or condensation)
Humidity: 95%RH max.
Endurance
Mechanical: 1,000,000 operations min.
Electrical: 300,000 operations min.
Degree of Protection IP65





Dimension

Clion miniature Micro Switch LXW-5 series for food machinery, automatic packing machine, and machine tool equipmet 0



Clion miniature Micro Switch LXW-5 series for food machinery, automatic packing machine, and machine tool equipmet 1Clion miniature Micro Switch LXW-5 series for food machinery, automatic packing machine, and machine tool equipmet 2Clion miniature Micro Switch LXW-5 series for food machinery, automatic packing machine, and machine tool equipmet 3
