Clion miniature weight Limit Switch LX-ME series for electronics, machinery and light industry

500pcs
MOQ
get latest price
Price
Clion miniature weight Limit Switch LX-ME series for electronics, machinery and light industry
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Speed: 0.5mm-50cm/sec
Operating Frequency: Mechanical: 120 Times/min; Electrical: 30 Times/min
Contact Resistance: ＜25mΩ(in The Beginning)
Insulation Resistance: ＞100MΩ（＜500VDC）
Endurance: Mechanical: 20,000,000 Operations Min.; Electrical: 300,000 Operations Min.
Dielectric Strength: Between Current Carrying Metal Parts And Ground: AC2000V,50/60Hz For 1min
Operating Ambient: -5℃~+65℃; ＜95%RH
Basic Infomation
Place of Origin: China
Brand Name: Clion
Certification: CE/CCC
Model Number: LE-ME
Payment & Shipping Terms
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 2k pcs 7 days
Product Description

LX-ME Series Limit Switch



Features

1. Double circuit type limit switch

2. Compact size, waterproof

3. Kinds of actuators

4. Easily be wiring

5. Large OT



Specifications

Operating Speed 0.5mm~50cm/s
Operating Frequency

Mechanical: 120 times/min;

Electrical: 30 times/min

Contact Resistance

(initial value)
50mΩ max
Insulation Resistance
100MΩ min.(at DC500V)
Dielectric Strength
Between terminals of the same polarity: AC1000V, 50/60Hz for 1min
Between current carrying metal parts and ground: AC2000V,50/60Hz for 1min
Vibration Resistance
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock Resistance
Durability: 1,000 m/s2 max. ; Malfunction: 300 m/s2 max.
Operating Ambient
Temperature: -5°C ~ 65°C(with no icing or condensation)
Humidity: 95%RH max.
Endurance
Mechanical: 20,000,000 operations min.
Electrical: 300,000 operations min.
Degree of Protection IP65



Action characteristic

Item NO. LX-ME8104 LX-ME8101 LX-ME8107 LX-ME8111 LX-ME8112/8122 LX-ME8166/8167/8168/9101
OF Max. 750g 750g 750g 900g 900g 150g
RF Min. 100g 100g 100g 150g 150g /
PT Max. 20° 20° 20° 1.5mm 1.5mm 30mm
OT Min. 50° 50° 50° 4mm 4mm /
MD Max. 12° 12° 12° 1mm 1mm /
OP / / / 26±0.8mm 37±0.8mm /

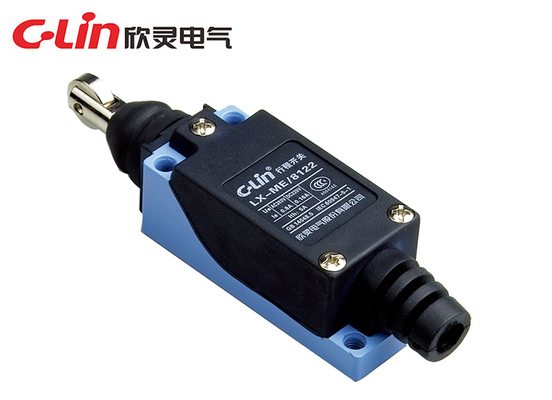

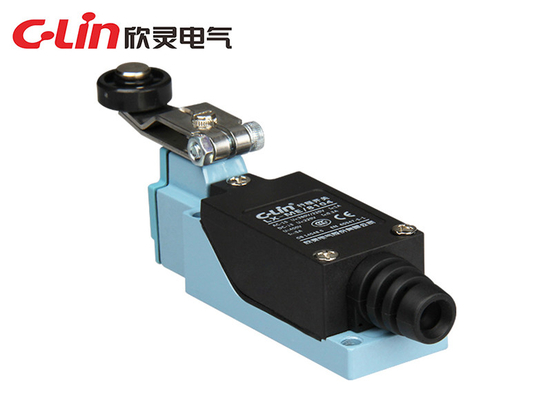

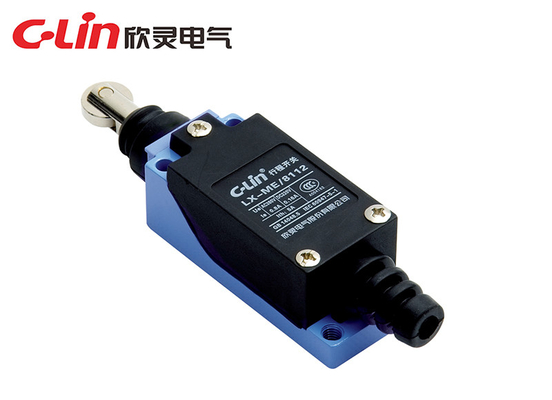

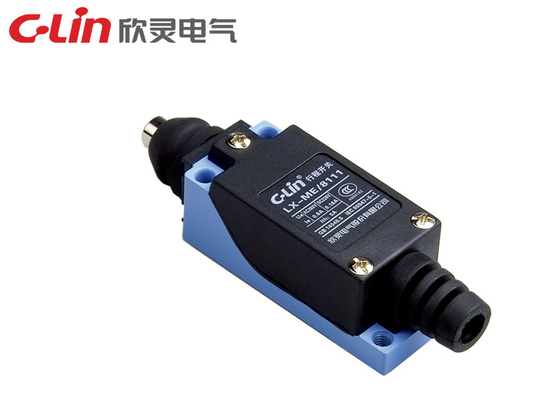

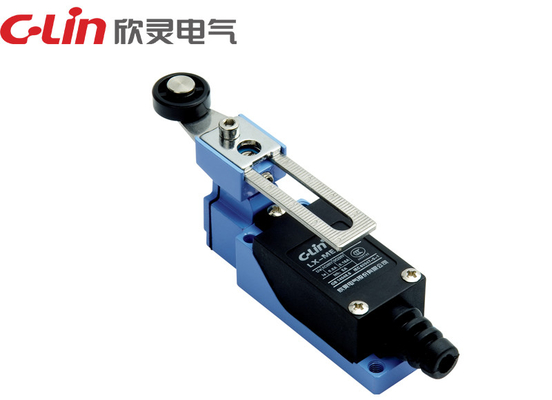

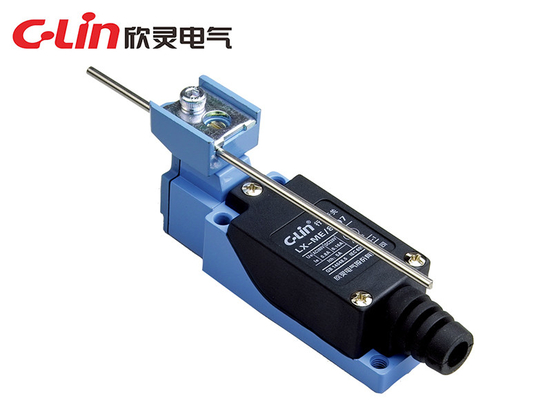

Clion miniature weight Limit Switch LX-ME series for electronics, machinery and light industry 0Clion miniature weight Limit Switch LX-ME series for electronics, machinery and light industry 1Clion miniature weight Limit Switch LX-ME series for electronics, machinery and light industry 2
