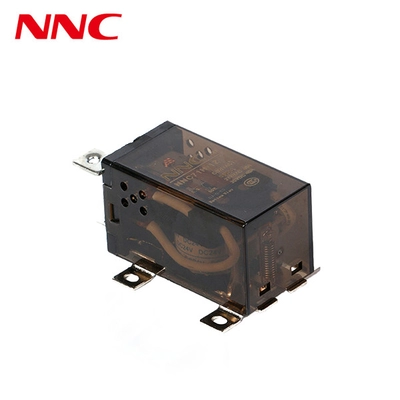

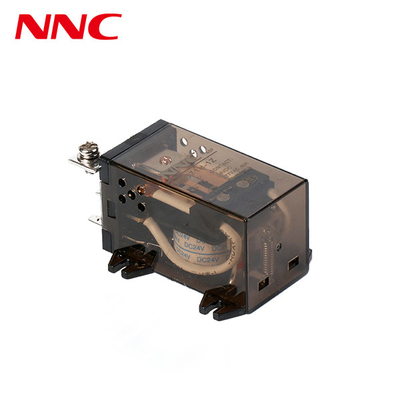

Clion NNC Power Relay NNC71H-1Z(JQX-45F) screw type 40A 50A black Epoxy
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Theory | Power Relay | Form | 1Z(SPDT);1H(SPST-NO);1D(SPST-NC) |
|---|---|---|---|
| Rated Load | 40A/50A | Max Switching Voltage | 277VAC/30VDC |
| Contact Material | Ag Alloy | Electrical Life | 1*10^5 |
| Mechanical Life | 1*10^7 | Coil Voltage | DC6-220V, AC6-380V (Customize Allowed) |
| Coil Power | DC: 1.2W/2W, AC: 5VA |
Product Description
NNC71H(JQX-45F) Power Relay
| Specification | |||

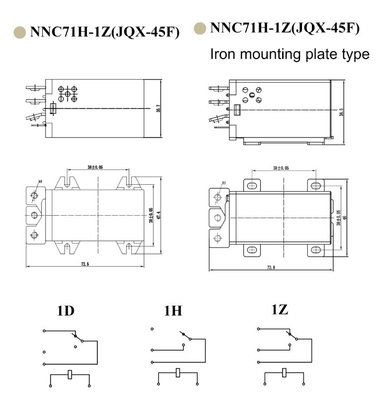

| Dimension | 68.5mm*47.4mm*35.7mm | 72.5mm*47.4mm*35.7mm | |
| Contact Feature | Form | 1Z(SPDT);1H(SPST-NO);1D(SPST-NC) | |
| Rated load | 40A, 50A | ||
| Max switching voltage | 277VAC/30VDC | ||
| Contact resistance | ≤100mΩ | ||
| Material | Silver Alloy | ||
| Electrical life | ≥1*105 | ||
| Mechanical life | ≥1*107 | ||
| Operate voltage (23℃) | DC:≤75%*Rated voltage, AC:≤80%*Rated voltage | ||
| Release voltage (23℃) | DC:≥10%*Rated voltage, AC:≥30%*Rated voltage | ||
| Maximum voltage (23℃) | 110%*Rated voltage | ||
| Coil voltage | DC6-220V, AC6-380V (Customize allowed) | ||
| Coil power | DC: 1.2W/2W, AC: 5VA | ||
| Pick-up time | ≤15ms | ||
| Release time | ≤10ms | ||
| Dielectric strength | Between Same-pole contacts | 1000VAC/1min(leakage current 1mA) | |
| Between Opposite-pole contacts | 1500VAC/1min(leakage current 1mA) | ||
| Between contacts and coil | 2500VAC/1min(leakage current 1mA) | ||
| Insulation resistance | ≥100mΩ(500VDC) | ||
| Ambient temperature | -25℃ ～55℃ | ||
| Ambient humidity | 45%-75%RH | ||
| Atmospheric pressure | 86-106KPa | ||
| Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||
| Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | ||
| Installation | Screw or Flange | ||
| Weight | Approx. 110g/PCS | ||
Shipment & Packaging
Shipment & Packaging
| Packing | 1Z | |
| Outer Box(pcs) | 120 | |
| Dimension of the carton | 40*26.5*34.5CM | |
| Weight | G.W:15KG N.W:14KG |
