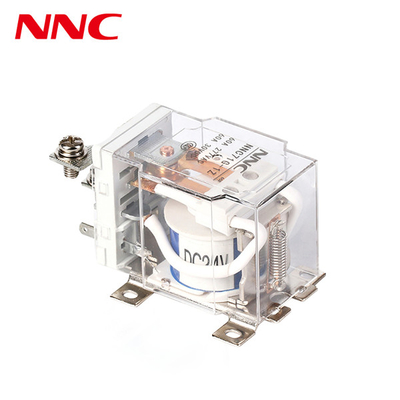

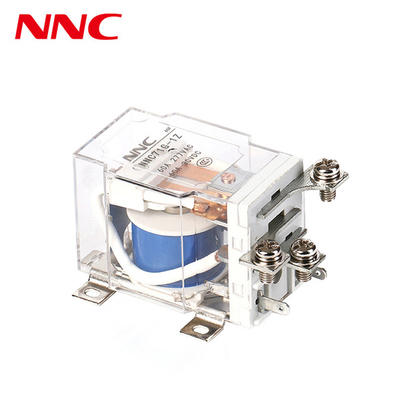

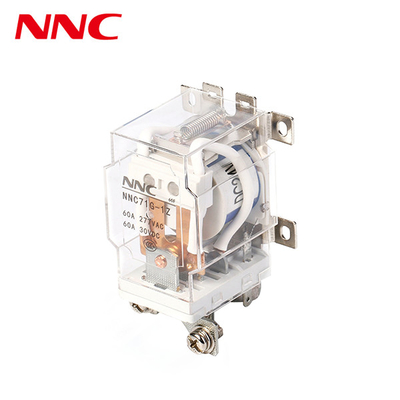

Clion HHC Power Relay NNC71G1-1Z (JQX-60F) 60A electromagnetic spdt relay dc12v 24v ac 220v
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Theory | Power Relay | Form | 1Z(SPDT);1H(SPST-NO);1D(SPST-NC) |
|---|---|---|---|
| Rated Load | 60A | Max Switching Voltage | 277VAC/30VDC |
| Contact Material | Ag Alloy | Electrical Life | 1*10^5 |
| Mechanical Life | 1*10^7 | Coil Voltage | DC6-220V, AC6-380V (Customize Allowed) |
| Coil Power | DC: 2.0W, AC: 8.6VA |
Product Description
NNC71G1(JQX-60F) Power Relay
| Specification | |||
| Dimension | 60.2mm*45mm*46mm | ||
| Contact Feature | Form | 1Z(SPDT);1H(SPST-NO);1D(SPST-NC) | |
| Rated load | 60A | ||
| Max switching voltage | 277VAC/30VDC | ||
| Contact resistance | ≤100mΩ | ||
| Material | Silver Alloy | ||
| Electrical life | ≥1*105 | ||
| Mechanical life | ≥1*107 | ||
| Operate voltage (23℃) | DC:≤75%*Rated voltage, AC:≤80%*Rated voltage | ||
| Release voltage (23℃) | DC:≥10%*Rated voltage, AC:≥30%*Rated voltage | ||
| Maximum voltage (23℃) | 110%*Rated voltage | ||
| Coil voltage | DC6-220V, AC6-380V (Customize allowed) | ||
| Coil power | DC: 2.0W, AC: 8.6VA | ||
| Pick-up time | ≤25ms | ||
| Release time | ≤25ms | ||
| Dielectric strength | Between Same-pole contacts | 1500VAC/1min(leakage current 1mA) | |
| Between Opposite-pole contacts | / | ||
| Between contacts and coil | 2500VAC/1min(leakage current 1mA) | ||
| Insulation resistance | ≥200mΩ(500VDC) | ||
| Ambient temperature | -25℃ ～55℃ | ||
| Ambient humidity | 45%-75%RH | ||
| Atmospheric pressure | 86-106KPa | ||
| Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||
| Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | ||
| Installation | Screw | ||
| Weight | Approx. 160g/PCS | ||
Shipment & Packaging
Shipment & Packaging
| Packing | 1Z | |
| Outer Box(pcs) | 100 | |
| Dimension of the carton | 40*28.8*37CM | |
| Weight | G.W:17KG N.W:16KG |
FAQ
FAQ
Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.
Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.
Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)
Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.
Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.
Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.
Q7: What is your warranty time of the products?
A7: 12-24 months
