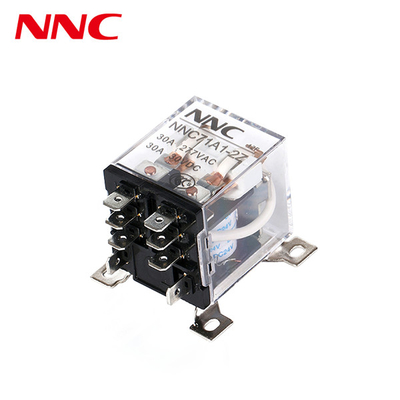

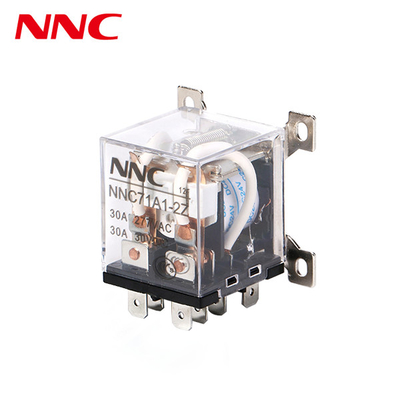

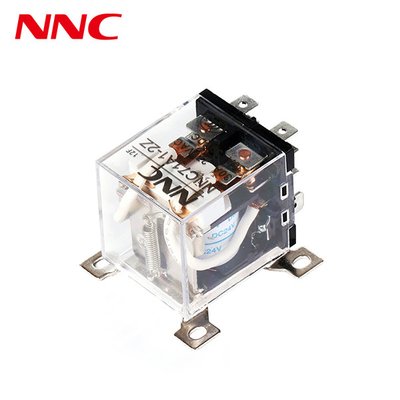

NNC Clion high relay CE 30A transparent power relay dc 12v NNC71A1-2Z(IQX-12F) with 8 pins

  • NNC Clion high relay CE 30A transparent power relay dc 12v NNC71A1-2Z(IQX-12F) with 8 pins
  • NNC Clion high relay CE 30A transparent power relay dc 12v NNC71A1-2Z(IQX-12F) with 8 pins
  • NNC Clion high relay CE 30A transparent power relay dc 12v NNC71A1-2Z(IQX-12F) with 8 pins
  • NNC Clion high relay CE 30A transparent power relay dc 12v NNC71A1-2Z(IQX-12F) with 8 pins
Place of Origin China
Brand Name clion
Certification CCC
Model Number HHC71A1(JQX-12F)
Minimum Order Quantity 600pcs
Price get latest price
Delivery Time 7-14 days
Payment Terms T/T
Supply Ability 30k pcs 7 days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details

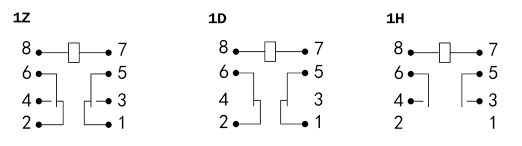

Theory Power Relay Form 1Z(SPDT);1H(SPST-NO);1D(SPST-NC)/2Z(DPDT);2H(DPST-NO);2D(DPST-NC)
Rated Load 30A Max Switching Voltage 277VAC/30VDC
Contact Material Ag Alloy Electrical Life 1*10^5
Mechanical Life 1*10^7
Leave a Message
Product Description

NNC71A1 Power Relay

NNC Clion high relay CE 30A transparent power relay dc 12v NNC71A1-2Z(IQX-12F) with 8 pins 0NNC Clion high relay CE 30A transparent power relay dc 12v NNC71A1-2Z(IQX-12F) with 8 pins 1

Specification
Dimension 48mm*46mm*40mm
Contact Feature Form 1Z(SPDT);1H(SPST-NO);1D(SPST-NC) 2Z(DPDT);2H(DPST-NO);2D(DPST-NC)
  Rated load 30A
  Max switching voltage 277VAC/28VDC
  Contact resistance ≤100mΩ
  Material Silver Alloy
  Electrical life ≥1*105
  Mechanical life ≥1*107
Operate voltage (23℃) DC:≤75%*Rated voltage, AC:≤80%*Rated voltage
Release voltage (23℃) DC:≥10%*Rated voltage, AC:≥30%*Rated voltage
Maximum voltage (23℃) 110%*Rated voltage
Coil voltage DC6-220V, AC6-380V (Customize allowed)
Coil power DC: 2.0W, AC: 4VA
Pick-up time ≤25ms
Release time ≤15ms
Dielectric strength Between Same-pole contacts 1500VAC/1min(leakage current 1mA)
  Between Opposite-pole contacts 1500VAC/1min(leakage current 1mA)
  Between contacts and coil 2500VAC/1min(leakage current 1mA)
Insulation resistance ≥100mΩ(500VDC)
Ambient temperature -25℃ ～55℃
Ambient humidity 45%-75%RH
Atmospheric pressure 86-106KPa
Shock resistance 10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance 10-55Hz (double amplitude: 1.5mm)
Installation Screw
Weight Approx. 70g/PCS
Certificate

Certificate


Shipment & Packaging

Shipment & Packaging



Packing   1Z/2Z

Outer Box(pcs) 120
Dimension of the carton 40*26.5*34.5CM
Weight G.W:12KG N.W:11KG
