Clion NNC Power Relay NNC71K(JQX- 116F), electromagnetic relay dc 12V HHC71K flange PCB type

Place of Origin China
Brand Name NNC
Certification CE/CCC
Model Number NNC71K(JQX-116F)
Minimum Order Quantity 500pcs
Price get latest price
Delivery Time 7-14 days
Payment Terms L/C
Supply Ability 30k pcs 7 days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Theory Power Relay Coil Contact 1H(SPST-NO)/2Z(DPDT);2H(DPST-NO)
Coil Voltage DC6-220V, AC6-380V (Customize Allowed) Coil Material Ag Alloy
Max Switching Voltage 277VAC Electrical Life 1*10^5
Mechanical Life 1*10^7 Rated Current 30A
Leave a Message
Product Description

NNC71K Power Relay

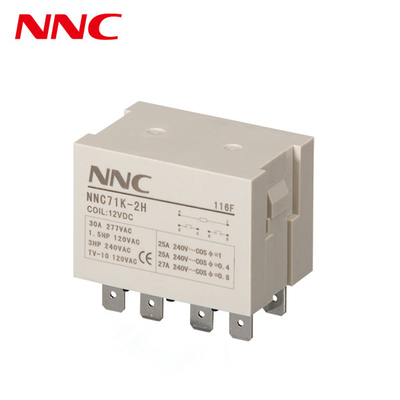

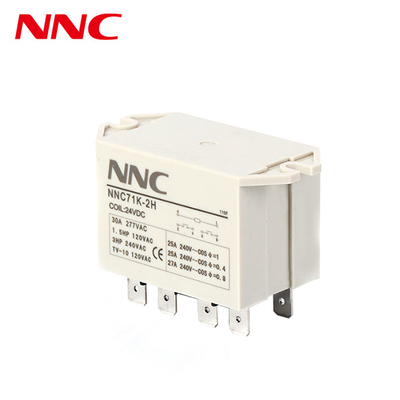

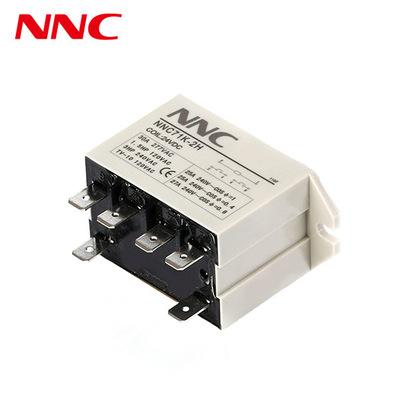

Clion NNC Power Relay NNC71K(JQX- 116F), electromagnetic relay dc 12V HHC71K flange PCB type 0Clion NNC Power Relay NNC71K(JQX- 116F), electromagnetic relay dc 12V HHC71K flange PCB type 1Clion NNC Power Relay NNC71K(JQX- 116F), electromagnetic relay dc 12V HHC71K flange PCB type 2



Specification

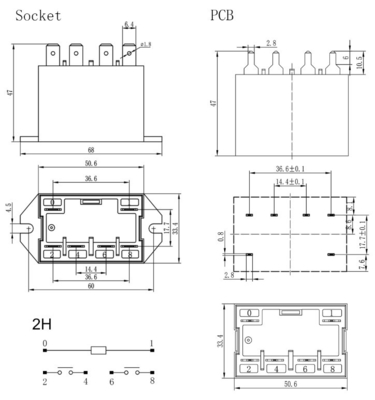

Dimension 68mm*33.4mm*47mm 50.6mm*33.4mm*47mm
Contact Feature Form 1H(SPST-NO);2H(DPST-NO)
  Rated load 30A
  Max switching voltage 277VAC
  Contact resistance ≤100mΩ
  Material Silver Alloy
  Electrical life ≥1*105
  Mechanical life ≥1*107
Operate voltage (23℃) DC:≤75%*Rated voltage, AC:≤80%*Rated voltage
Release voltage (23℃) DC:≥10%*Rated voltage, AC:≥30%*Rated voltage
Maximum voltage (23℃) 110%*Rated voltage
Coil voltage DC6-220V, AC6-380V (Customize allowed)
Coil power DC: 2.0W, AC: 4VA
Pick-up time ≤25ms
Release time ≤15ms
Dielectric strength Between Same-pole contacts 1500VAC/1min(leakage current 1mA)
  Between Opposite-pole contacts 1500VAC/1min(leakage current 1mA)
  Between contacts and coil 2500VAC/1min(leakage current 1mA)
Insulation resistance ≥100mΩ(500VDC)
Ambient temperature -25℃ ~55℃
Ambient humidity 45%-75%RH
Atmospheric pressure 86-106KPa
Shock resistance 10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance 10-55Hz (double amplitude: 1.5mm)
Installation Screw
