Name: NNC high Power Relay NNC71A(JQX- 30F), electromagnetic relay dc 24V HHC71A flange type
Brand: CLION ELECTRIC CO.,LTD
SKU: NNC71A(JQX-30F)
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Theory: Power Relay

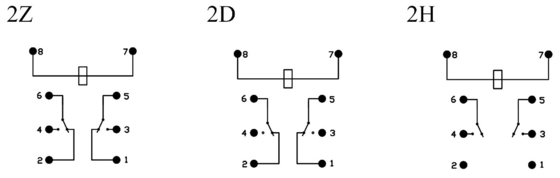

Coil Contact: 1Z(SPDT);1H(SPST-NO);1D(SPST-NC)/2Z(DPDT);2H(DPST-NO);2D(DPST-NC)

Coil Voltage: DC6-220V, AC6-380V (Customize Allowed)

Coil Material: Ag Alloy

Max Switching Voltage: 277VAC /30VDC

Electrical Life: 1*10^5

Mechanical Life: 1*10^7

Rated Current: 30A

Basic Infomation

Place of Origin: China

Brand Name: NNC

Certification: CE/CCC

Model Number: NNC71A(JQX-30F)

Payment & Shipping Terms

Delivery Time: 7-14 days

Payment Terms: L/C

Supply Ability: 30k pcs 7 days

Gallery

NNC high Power Relay NNC71A(JQX- 30F), electromagnetic relay dc 24V HHC71A flange type

Product Description

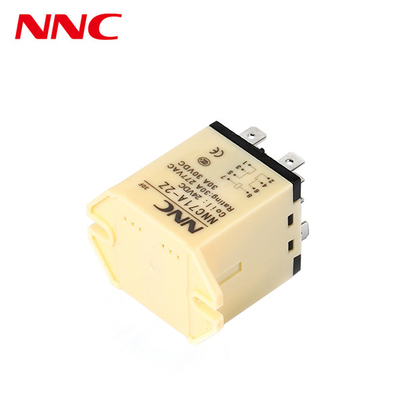

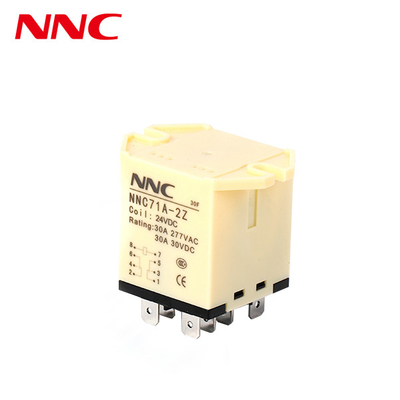

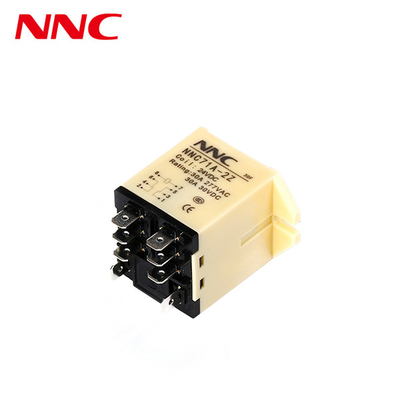

NNC71A Power Relay

NNC high Power Relay NNC71A(JQX- 30F), electromagnetic relay dc 24V HHC71A flange type 0

NNC high Power Relay NNC71A(JQX- 30F), electromagnetic relay dc 24V HHC71A flange type 2

Certificate

Certificate

NNC high Power Relay NNC71A(JQX- 30F), electromagnetic relay dc 24V HHC71A flange type 3

Shipment & Packaging

Packing		1Z/2Z

	Outer Box(pcs)	150
	Dimension of the carton	4026.534.5CM
	Weight	G.W:12KG N.W:11KG

NNC high Power Relay NNC71A(JQX- 30F), electromagnetic relay dc 24V HHC71A flange type 4

FAQ

Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.

Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.

Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)

Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.

Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.

Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.

Q7: What is your warranty time of the products?
A7: 12-24 months
